TAM58525

1/10 Wild One Off-Roader Kit

Product Info | Replacement Parts
TAMIYA

TAM58525
1/10 Wild One Off-Roader Kit
By TAMIYA
$275.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Buggy Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$275.99
Warehouse ?
StockStock availability for pick up
0
$275.99
Warehouse ?
0
$275.99
Store - Charlottetown ?
0
$275.99
Store - Edmonton ?
0
$275.99
Store - Mississauga ?
0
$275.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
3mm Grub Screw 44002
$5.99

F1 Front Upright Set
$11.99

2mm E-Ring 44002
$3.49

Alum Spacer Set 5.5mm
$14.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

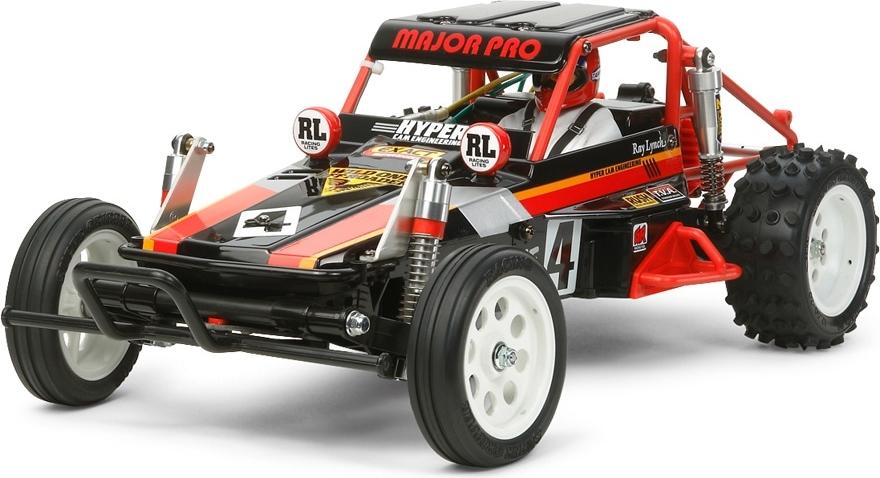

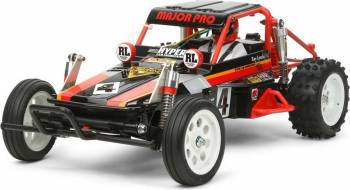

          This is the Radio Controlled, Electric Powered 1/10 scale
Tamiya Wild One Off-Roader Buggy Kit.

FEATURES: Chassis: Bathtub style, constructed of ABS plastic
Drive; Rear wheel, driveshafts feature dogbone type joints and dust
covers
Motor: 540 brushed
Electronic Speed Control: TEU-105BK with reverse
Pinion Gear: 18T steel
Gearbox: Sealed
Shocks: Oil-filled aluminum body
Suspension: Four wheel independent with coil springs and trailing
arms
Body: Polycarbonate body and roof panels with inner tray and driver
figure
Steering: Bell crank type with servo saver
Bumper: Resin front bumper
Wheels: White plastic, front 0.79" (20mm) wide, 2.2" (56mm) diameter
rear 1.2" (31mm) wide, 2.2" (56mm) diameter
Tires: Front ribbed, 0.94" (24mm) wide, 3.1" (78mm) diameter
Rear spiked, 1.4" (37mm), 3.1" (78mm) diameter
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis

INCLUDES: Tamiya Wild One Off-Roader Buggy Kit, 540 Brushed Motor, ESC, Tires,
Wheels, Clear Body, Decals and Instructions

REQUIRES: Radio: 2-channel
Battery: 6-cell stick pack with Standard connector
Battery Charger: Compatible with selected battery
Building and track equipment

SPECS: Width: 8.8" (225mm)
Height: 5.5" (140mm)
Weight: 40oz (1135g)
Body;
Length: 11.1" (283mm)
Width: 5.8" (148mm) at widest point
Height: 5" (127mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 5x11mm Fr Hubs 2 DTXC1547
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm Rear Hubs 1 DTXC1547
1 5x11mm Gearbox 1 DTXC1547
3 5x8mm Gearbox 2 DTXC1523

To paint the body to match the photos on the box, order the following
Tamiya colors;
PS-1 White, TAMR8601
PS-5 Black, TAMR8605

jxs 08/17/12
ir/jxs
4950344585250 4950344585250
TAMC8525
