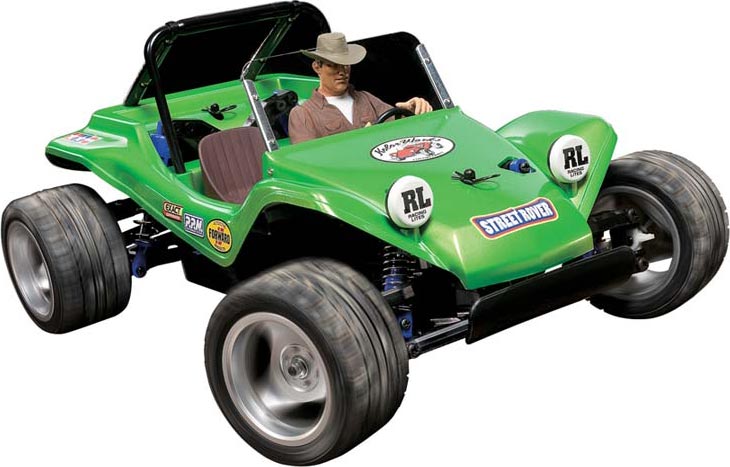

          This is the radio controlled, electric powered 1/10 scale
On-Road Street Rover Kit from Tamiya.

FEATURES: Chassis: DT-02 plastic bathtub type with longitudinal battery
layout for lower center of gravity
Drive: Rear wheel
Motor: 380 size brushed
Differential: Three bevel gears
Gearbox: Sealed
Electronic Speed Control: Tamiya TEU-104BK with reverse
Body: Resin, pre-painted in Candy Lime Green, equivalent to Tamiya
Color TS-52, separate clear windshield
Driver Figure: Semi finished with painted head and hat
Suspension: Four wheel independent, double wishbone
Shocks: Plastic body friction, not oil filled
Tires: Rubber, wide tread on-road
Wheels: Silver plated plastic wheels
Caster/Toe-In: Adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering: Two adjustable rods with servo saver

INCLUDES: Street Rover Kit with Body, Decals, Driver Figure, ESC, Motor,
Wheels, Tires, and Instructions

REQUIRES: Radio: 2-channel with standard steering servo
AA Batteries: Eight for transmitter
Battery: 7.2V 6-cell stick pack with Standard connector
Battery Charger: Peak type recommended
Building and track equipment

Vehicle;
SPECS: Length: 15.3" (390mm)
Width: 10.6" (270mm)
Height: 6.6" (168mm)
Weight: 2.7lbs (1250g)
Body;
Length: 14.6" (371mm)
Width: 6.9" (175mm)
Height: 4.1" (104mm)

COMMENTS: For Replacement or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Gearbox 1 DTXC1547
2 5x11mm Counter Gear 1 DTXC1547
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm Front Axles 1 DTXC1547
To paint Street Rover to match photos on box, use the following
Tamiya colors;
X-7 Red, TAMR1507 X-18 Semi Gloss Black, TAMR1518
X-11 Chrome Silver, TAMR1511 XF-2 Flat White, TAMR1702
XF-9 Hull Red, TAMR1709 XF-15 Flat Flesh, TAMR1715
