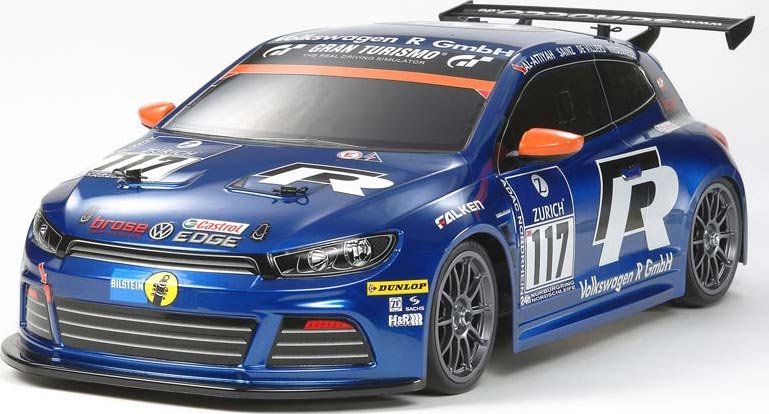

          This is the radio controlled, electric powered, 1/10 scale
FF-03 On-Road Chassis Kit with the Volkswagen Scirroco GT24-CNG Body
from Tamiya.

FEATURES: Chassis: Composite construction with newly designed lower deck
Drive: Front wheel
Motor: 540 size brushed
Wheels: Ten-spoke 2" (52mm) diameter, 0.94" (24mm) wide, black in
color, 0 offset
Tires: 2.4" (61mm) diameter, 1.0" (25.5mm) slicks with foam inserts
Bumper: Front urethane
Spur Gear: 68 tooth composite
Pinion Gear: 26 tooth metal
Differential: Ball type
Steering: Bellcrank type equipped with ball bearings
Body: Clear untrimmed polycarbonate with separately molded rear wing
and mirrors
Shocks: Oil-filled CVA type
Suspension: Four wheel double wishbone with IFS (Inboard Front
Suspension) with short reversible suspension arms
Wheelbase: Kit can be assembled with long (10.1" 257mm), medium
(9.6" 245mm) or short (9.2" 233mm) wheelbase by altering the rear
assembly
Camber: Adjustable front and rear, camber refers to the angle of the
tops of the tires from vertical when when viewed from front or
behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: 1/10 scale FF-03 On-Road Chassis Kit, wheels, slick tires, foam
inserts, motor, decals, shock oil, clear body, spur gear, pinion
gear and instruction manual

REQUIRES: Radio: 2-channel with high speed standard size servo
Electronic Speed Control: For stock brushed motors
Building and track equipment

SPECS: Vehicle-
Length: 15.1" (384mm)
Width: 7.3" (185mm)
Tread: 6.2" (157mm) center of tires, side-to-side
Wheelbase: 10.1" (257mm)
9.6" (245mm)
9.2" (233mm)
Body-
Length: 16.7" (425mm)
Width: 7.4" (188mm)
Height: 4.1" (104mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x8mm Differential 1 DTXC1523
2 5x10mm Differential 1 DTXC1535
2 5x10mm Idler Gear 1 DTXC1535
1 4x8mm Counter Gear 1 DTXC1511
1 5x10mm Counter Gear 1 DTXC1535
4 5x8mm Steering 2 DTXC1523
4 5x10mm Front Axles 2 DTXC1535
4 5x10mm Rear Axles 2 DTXC1535
