  • 1/10 scale R/C assembly kit.
  • Reinforced polycarbonate monocoque frame chassis allows easy access and maintenance of the gearbox without the need to disassemble the chassis.
  • Gearbox comes pre-assembled, making it perfect for those who are new to kit building in the R/C hobby.
  • The four-wheel double wishbone suspension is equipped with front & rear friction dampers.
  • Comes with front & rear large diameter (130mm) tires.
  • The dynamic form of the truck has been reproduced with a durable resin body.
  • Type 540 motor included.
  • Comes with a driver figure.
  • Tamiya TEU-104BK ESC included

This 2WD Blackfoot III monster truck is the 5th generation vehicle to use the famous Blackfoot name. It features metal-plated parts for the accent parts. The reinforced polycarbonate monocoque frame chassis allows easy access to the main components and make maintenance of gearbox a breeze. The Gearbox comes pre-assembled, making it perfect for beginner kit builders. The four-wheel double wishbone suspension offers sure-footed handling over almost any terrain.

click image to enlarge

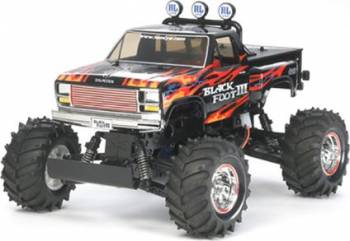

          This is the electric powered, radio controlled, 1/10 scale
Blackfoot III Off-Road Pickup Truck Kit from Tamiya.

FEATURES: Chassis: Polycarbonate monocoque designed for easy gearbox access
Drive: Rear wheel
Motor: 540 brushed with 18 tooth metal pinion gear
Differential: Planetary
Electronic Speed Control: TEU104BK with reverse
Shocks: Four friction (not oil-filled)
Suspension: Double wishbone
Wheels: Plastic with chrome finish 1.9" (50mm) wide, 2.2" (56mm)
diameter, 12mm hex
Tires: 5.1" (130mm) diameter, 2.2" (56mm) wide, with lug pattern
tread for good off-road performance
Body: Molded resin with separate smoked windows, grille, bumpers and
light bar, body mount position can be adjusted to fit Twin
Detonator body shell
Steering: Bellcrank type with adjustable linkage
Bumper: Front plastic

INCLUDES: Blackfoot III Off-Road Pickup Truck Kit with 540 size Motor, ESC,
Shocks, Tires, Wheels, Decals, Body, Windows, Grille, Bumpers
Rollbar and Instruction Manual

REQUIRES: Radio: 2-channel with high torque steering servo
Transmitter Batteries: 4 or 8 depending on system
Battery: 7.2V 6-cell stick pack with standard connector
Battery Charger: Compatible with selected battery
Building and track equipment

SPECS: Vehicle-
Length: 17.5" (445mm)
Width: 12.2" (310mm)
Height: 10.8 (275mm)
Length: 15.8 (402mm)
Width: 6.5" (165mm)
Height: 4.4" (111mm)

COMMENTS: To paint body to match the color scheme on box, order the following
TAMR5006 TS-6 Matte Black TAMR1518 X-18 Semi Gloss Black
TAMR5014 TS-14 Black TAMR8126 X-26 Clear Orange
TAMR1507 X-7 Red TAMR8401 XF-1 Flat Black
TAMR1511 X-11 Chrome Silver TAMR1715 XF-15 Flat Flesh

For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm Front Axles 1 DTXC1547
2 5x11mm Small Counter Gear 1 DTXC1547
2 5x11mm Large Counter Gear 1 DTXC1547
1 5x11mm Gearbox 1 DTXC1547

jxs 09/23/11
