  • Oil filled TRF Special Dampers (Hard Black Coating aluminum shock bodies)
  • 4WD, independent double whish bone suspension system
  • Re-buildable Universal Drive Shafts
  • Low-Friction Drive Belts (174mm, 453mm)
  • Aluminum Motor Plate
  • Full Ball Bearings
  • Aluminum Turnbuckle Shafts (Blue)
  • Aluminum Ball Connectors (Blue)
  • Hi-Torque Servo Saver (Black)
  • The motor is installed at the mid-rear position which helps improve traction for the rear wheels.
  • Comes equipped with aluminum motor plate and aluminum spur gear holder from the TA-05 chassis platform.
  • Compatible with TA05 and TA06 touring car and sports car body sets
  • Suspension parts from the previous TA-05 platform are used on the new TA-06. (short reversible suspension, steering blocks, castor blocks and optional aluminum suspension mounts) are all transferable
  • Molded plastic parts are made of durable FRP (Fiberglass Reinforced Plastic)
  • Chassis battery compartment is compatible with NiCd, NiMh, LiFe and LiPo battery technologies.
  • The battery pack can be accessed from the underside of the chassis by removing the battery cover.
  • Standard outboard suspension is possible with the kit-included damper stay parts.
  • Note: Body, wheels, tires, motor, battery/charger and R/C radio gear sold separately.

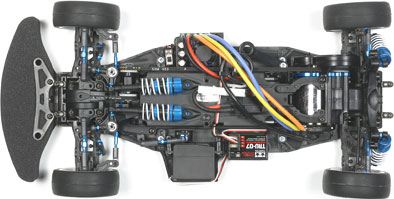

The latest addition to Tamiya's on-road R/C touring car product line is the TA06 PRO, which was created with input from the world championship-winning TRF (Tamiya Racing Factory) team. Tamiya started the modern touring car standard with the TA-01, which was first released in 1992. This is the 6th generation 4WD chassis, which features a totally new layout design that offers excellent balance. The motor and battery are mounted along the center-line of the chassis with the radio gear positioned on either side. The DUAL-DRIVE SYSTEM features belt-driven front and gear-driven rear wheels. The gear-driven wheels offer sharp throttle response and improved acceleration. The battery pack can be accessed from the underside of the chassis for convenience. The refined Inboard Front Suspension (IFS) setup can also be changed to a standard outboard setup thanks to the kit-included damper stay parts. Front and rear gearboxes are equipped with newly-designed gear diff units to efficiently transmit motor power and offer superb traction and acceleration.

click image to enlarge
      This is the radio controlled, electric powered, 1/10 scale, on-road
TA06 Pro Chassis Kit from Tamiya.

FEATURES: Chassis: Plastic with battery access on bottom
Drive: Four wheel, belt driven front wheels, gear driven rear wheels
Shocks: Oil-filled TRF special shocks with hard black coating
Differentials: Planetary gear
Front Suspension: Inboard type that can be changed to an outboard
setup with included damper stay parts, all components from previous
TA05 chassis are transferable
Wheels: 0.94" (24mm) wide, 1.9" (48mm) six spoke gray
+2 offset
Bumper: Front urethane
Spur Gear: Plastic 06 module, 68 tooth
Ball Bearings: Full set included
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: TA06 Pro Chassis Kit with Wheels, Decals, Shock Oil and Instructions

REQUIRES: Radio: 2-channel with steering servo
Electronic Speed Control: To match selected motor
Motor: 540 size
Battery Pack: 7.2V 6-cell stick
Tires: 24mm medium narrow with inserts
Body: Tamiya TA05 and TA06 bodies will fit
Building and track equipment

SPECS: Length: 14.6" (371mm)
Width: 7.4" (187mm)
Wheelbase: 10.1" (257mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 10x15mm Rear Diff 2 DTXC1595
2 5x10mm Gearbox 1 DTXC1535
2 4x8mm Gearbox 1 DTXC1511
2 10x15mm Front Diff 1 DTXC1595
2 3x7mm Steering Linkage 1 DTXC1506
2 3x6mm Steering Linkage 1 DTXC1503
4 5x8mm Front Stiffener 2 DTXC1523
2 4x8mm Center Pulley 1 DTXC1511
4 5x10mm Rear Axle 2 DTXC1535
4 5x10mm Front Axle 2 DTXC1535
2 3x6mm Motor Mount 1 DTXC1503
