TAM58482

1/10 Stadium Blitzer 2010 Kit

Product Info
TAMIYA

TAM58482
1/10 Stadium Blitzer 2010 Kit
By TAMIYA
$186.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Stadium Racer Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
1
$186.99
Warehouse ?
StockStock availability for pick up
1
$186.99
Warehouse ?
0
$186.99
Store - Charlottetown ?
0
$186.99
Store - Edmonton ?
0
$186.99
Store - Mississauga ?
0
$186.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

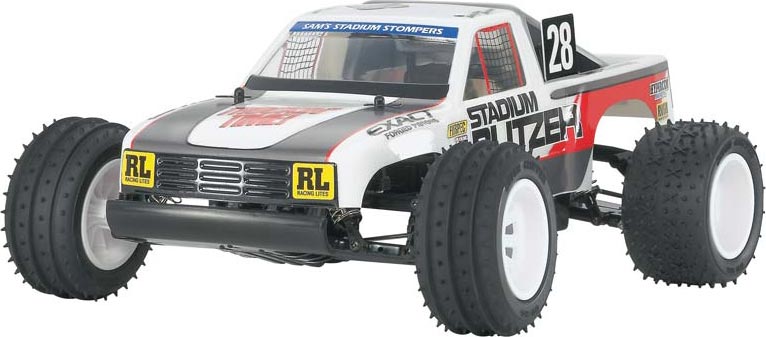

         This is the electric powered, radio controlled, 1/10 scale
Stadium Blitzer 2010 Pickup Truck Kit from Tamiya.

FEATURES: Frame: ABS plastic bathtub design
Drive: Rear wheel
Electronic Speed Control: TEU-104BK with reverse
Motor: 540 size, brushed
Pinion Gear: 13T metal
Spur Gear: Composite construction-number of teeth not given
Gearbox: Fully enclosed
Differential: Bevel gear
Body: Clear polycarbonate construction with predrilled body post
holes
Shocks: CVA oil-filled, composite body
Suspension: Four wheel independent double wishbone
Tires: Front, spike 1.7" (44mm) wide, 3.8" (97mm) diameter
Rear, spikes and X-shaped tread pattern 2.1" (53mm) wide
3.8" (97mm) diameter
Wheels: Ten spoke plastic, white in color 2.2" (56mm) diameter,
Front, 1.7" (43mm) wide, Rear, 1.96" (50mm) wide
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: Stadium Blitzer 2010 Pickup Truck Kit with 540 size motor, ESC,
shock oil, tires, wheels, clear body, decal sheet and instruction
manual

REQUIRES: Radio: 2-channel with one standard servo
Battery: 6-cell 7.2V NiCd or NiMH stick pack with Standard connector
Battery Charger: NiCd & NiMH compatible, peak type recommended
AA Batteries: Eight for transmitter
Paint: Polycarbonate safe spray or brush-on
Building and track equipment

SPECS: Vehicle;
Length: 16.1" (410mm)
Width: 11.6" (295mm)
Height: 6.5" (165mm)
Weight: 2.8lbs (1260g)
Body;
Length: 15.5" (394mm)
Width: 6.4" (162mm) at rear wheel, widest point
Height: 4.1" (105mm)

COMMENTS: To Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Diff Gear 2 DTXC1547
2 5x11mm Rear Axles 1 DTXC1547
