  • 1/10 R/C assembly model kit of the Datsun 240Z Rally.
  • Length: 451mm, Width: 190mm, Height: 133mm, Wheelbase: 251mm. (Use kit supplied suspension arms for a short wheelbase)
  • Polycarbonate body.
  • Stickers and masking seals included.
  • Light cases, two light pods on the hood, and front and rear bumpers are reproduced with separately molded resin parts.
  • Black offset +4 wheels and 26mm racing radial tires included.

The Datsun 240Z that claimed the outright win over Porsche, Peugeot, and Ford teams at the 1971 East Aftrican Safari Rally now comes loaded on the TT-01 Type-E chassis.

click image to enlarge
                   This is the electric powered 1/10 scale,
Datsun 240Z Rally X On-Road Car Kit from Tamiya.

FEATURES: Chassis: TT-01 type E composite chassis-compatible with a variety of
Tamiya Option Parts
Drive: Four wheel shaft drive
Electronic Speed Control: Tamiya TEU-104BK with reverse
Motor: 540 motor with pre-attached leads
Ball Bearings: Installed in differentials, bushings in wheel hubs
Shocks: Friction, plastic body
Gearbox: Sealed, front and rear
Differentials: Bevel gear, bushing equipped
Transmission: Single speed
Lights: LED head and tail lights turn on when car is switched on,
Body: Clear untrimmed, with window mask and body trim decals
Tires: Treaded 1.0" (26mm) wide, 2.6" (65.5mm) diameter
Wheels: Black solid 2.0" (52mm) outer diameter, 1.0" (26mm) wide
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Tamiya Datsun 240Z Rally X On-Road Car kit, 540 motor, ESC, clear
body, tires, foam bumper, wheels, 19 tooth pinion gear
61 tooth spur gear, window mask, decals and instruction manual

REQUIRES: Radio: 2-channel with one standard servo
Radio Batteries: 8 AA size (for transmitter)
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

Length: 15.7" (400mm)
Width: 7.2" (183mm)
Height: 5.5" (140mm)
Wheelbase: 9.9" (251mm)
Length: 17.3" (440mm)
Width: 7" (178mm)
Height: 4.3" (109mm)

COMMENTS: TLU-02 Light Control Unit (TAMC1477) can be added for greater control
of the lights
For replacement, or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Front Hubs 1 DTXC1547
2 5x11mm Rear Hubs 1 DTXC1547
2 8x12mm Front Diff 1 DTXC1581
2 8x12mm Rear Diff 1 DTXC1581
2 5x11mm Fr Driveshaft Joint 1 DTXC1547
2 5x11mm Rear Driveshaft Joint 1 DTXC1547

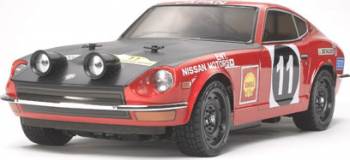

Body shown on box is painted red and black with all sponsor decals

jxs 06/21/10
