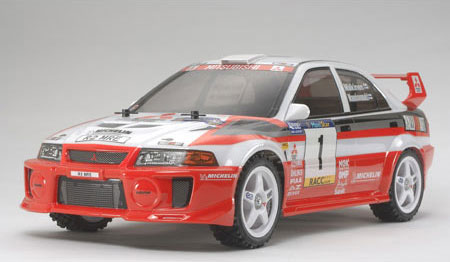

Mitsubishi Lancer Evo V WRC
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
CVA Mini Shock II V Parts
TG10 Front Wheel Axle
Heat Resist Dbl Side Tape
1/10 Datsun 240Z Rally Body Pr
3mm Grub Screw 44002
Body Set Honda Civic Type-R R3 JAS Motorsport
Body Prt Set Porsche 911 GT3 C
  • 1/10 R/C assembly kit of the Mitsubishi Lancer Evolution V WRC.
  • Aggressive rally car body accurately reproduced with durable polycarbonate.
  • Shaft driven 4WD chassis with horizontally mounted motor.
  • Features the proven DF-03 drivetrain with front and rear ball differentials.
  • The DF-03Ra suspension system has plenty of suspension stroke allowing dynamic driving on both on-road and off-road surfaces. Rally tires included.
  • 2 types of rear suspension arms allow wheelbase adjustment.
  • Upper arms feature threaded shafts enabling camber angle adjustments.
  • Agents can order this item with or without the TEU-104BK ESC.
  • The kit includes a type 540 motor and two spur gears (78T, 75T) and two pinion gears (29T, 32T) providing you with a choice of 4-gear ratios: 8.22:1, 7.90:1, 7.45:1, 7.16:1.
  • Further customize your machine with these separately available DF-03Ra Option Parts

The Mitsubishi Lancer Evolution first made an appearance at the 1973 World Rally Championships. The vehicle made sporadic appearances in rally races until 1993. The Lance's first great success was attained in 1996 and 1997 with the Evo III and IV. In 1998 the Evo V debuted with an impressive body, flared fenders and large rear wing. Driven by Tommi Makinen, the Evo V went on to win the 1998 Manufacturers' Championship and WRC Drivers' Championship.

click image to enlarge
         This is the 1/10 scale, radio controlled, electric powered
Tamiya Mitsubishi Lancer EVO V WRC Off-Road Rally Car Kit.

FEATURES: Chassis: DF-03Ra, plastic monocoque .08" (2mm) thick
Drive: Four wheel shaft drive
Motor: 540 type
Electronic Speed Control: Tamiya TEU-104BK with reverse
Gearboxes: Sealed
Differentials: Ball type
Shocks: CVA Super Mini
Ball Bearings: Full set included
Suspension: Two types of rear suspension allow wheelbase adjustment
also enabling use of short wheelbase 9.9" (251mm) bodies
Wheels: 5-spoke, white in color 1.02" (26mm) wide, 1.9" (47.9mm)
Tires: Off-road rally 1.2" (30mm) wide, 2.2" (56mm) inner diameter
Body: Clear lightweight polycarbonate
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
Steering: Bell-crank type with servo saver

INCLUDES: Tamiya Mitsubishi Lancer EVO V WRC Off-Road Rally Car Kit with 540
motor, clear body, decals, 29 and 32 tooth pinion gears, 75 and 78
tooth spur gears, instruction manual

REQUIRES: Radio: 2-channel with one standard servo
Radio Batteries: Eight AA for transmitter
Battery: 6-cell flat with standard Tamiya type connector
Battery Charger: Timed or peak for 6-cell battery
Paint: Polycarbonate safe spray or brush-on

Length: 15.3" (388mm)
Width: 9.8" (250mm)
Height: 6" (152mm)
Wheelbase: 10.7" (272mm)
Tread: Front; 8.5" (217mm)
Rear; 8" (203mm)
Length: 17.1" (434mm)
Width: 6.9" (177mm) behind front wheels, narrowest point
7.1" (181mm) at rear wheels, widest point
Height: 4.3" (110mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Front Diff Gear 1 DTXC1595
2 5x8mm Front Diff Gear 1 DTXC1523
2 10x15mm Rear Diff Gear 1 DTXC1595
2 5x8mm Rear Diff Gear 1 DTXC1523
3 9x5mm Rear Gear Assembly 2 DTXC1531
2 5x10mm Rear Gear Assembly 1 DTXC1535
1 3x8mm Rear Gear Assembly not carried
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm Front Axles 1 DTXC1547
2 5x10mm Front Gear Assembly 1 DTXC1535
1 3x6mm Front Gear Assembly 1 DTXC1503
4 5x8mm Steering Assembly 2 DTXC1523
