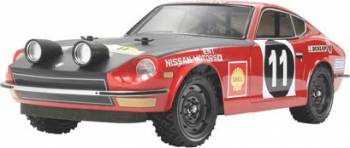

1/10 Datsun 240Z Rally DF-03Ra
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Kits
But only from... TAMIYA
All items from... TAMIYA

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
TG10 Front Wheel Axle
1/10 Datsun 240Z Rally Body Pr
Heat Resist Dbl Side Tape
3mm Grub Screw 44002
CVA Mini Shock II V Parts
540 Johnson Motor
Body Set Honda Civic Type-R R3 JAS Motorsport
  • 1/10 R/C assembly kit.
  • Wheelbase: 251mm. (Use kit supplied suspension arms for a short wheelbase)
  • Polycarbonate body.
  • Stickers and masking seals included.
  • Type 540 motor included.
  • Light cases, two spotlights on the hood, and front and rear bumpers are reproduced with separately molded resin parts.
  • Add exciting lighting action to your machine with separately available Tamiya LED light Unit TLU-01 (Item 53909) (LEDs not included in kit).
  • Black offset +2 wheels and Rally Block Tires included.
  • TEU-104BK ESC included.
  • 2-ch R/C system, battery pack and charger are separately available.
  • A wide variety of Option Parts are available to further customize your chassis.

The East African Safari is one of the world's more grueling off-road racing events. It began in 1953 to mark the Coronation of Queen Elizabeth II. The event took place through the East African nations of Kenya, Uganda, and Tanzania. The event continued over four days to complete the 6,200km journey.

About the East African Safari RallyAfter a victory in 1970, Nissan entered the 1971 Safari Rally with four Datsun 240Z series cars. The 240Z, which was powered by a 5-speed, straight-six L24 OHC engine, became popular among spectators because of its incredible performance. The No. 11 Datsun 240Z, driven by Herrman and Schuller, won the Over-all Victory, Class Victory, Team Victory and Manufactures Championship. Nissan became the first company to win back-to-back victories in all three categories. Herrman and Schuller became the first team to win back-to-back over-all victories.

click image to enlarge
        This is the 1/10 scale, radio controlled, electric powered
Tamiya Datsun 240Z Rally Car Kit.

FEATURES: Chassis: DF-03Ra, plastic monocoque .08" (2mm) thick
Drive: Four wheel shaft drive
Motor: 540 type
Electronic Speed Control: Tamiya TEU-104BK with reverse
Gearboxes: Sealed
Differentials: Ball type
Shocks: CVA Super Mini
Ball Bearings: Full set included
Suspension: Two types of rear suspension allow wheelbase adjustment
also enabling use of short wheelbase 9.9" (251mm) bodies
Wheels: +2 black in color 1.02" (26mm) wide, 1.9" (47.9mm)
Tires: Off-road rally 1.2" (30mm) wide, 2.2" (56mm) inner diameter
Body: Clear lightweight polycarbonate
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
Steering: Bell-crank type with servo saver

INCLUDES: Tamiya Datsun 240Z off-road rally car, 540 motor, clear
body, decals, 29 and 32 tooth pinion gears, 75 and 78 tooth spur
gears, instruction manual

REQUIRES: Radio: 2-channel with one standard servo
Radio Batteries: Eight AA for transmitter
Battery: 6-cell flat with standard Tamiya type connector
Battery Charger: Timed or peak for 6-cell battery
Paint: Polycarbonate safe spray or brush-on

Length, width and height not available from manufacturer
Wheelbase: 251mm (9.9")
Length: 440mm (17")
Width: 180mm (7") behind front wheels, narrowest point
190mm (7.5") at rear wheels, widest point
Height: 120mm (4.7")

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Front Diff Gear 1 DTXC1595
2 5x8mm Front Diff Gear 1 DTXC1523
2 10x15mm Rear Diff Gear 1 DTXC1595
2 5x8mm Rear Diff Gear 1 DTXC1523
3 9x5mm Rear Gear Assembly 2 DTXC1531
2 5x10mm Rear Gear Assembly 1 DTXC1535
1 3x8mm Rear Gear Assembly not carried
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm Front Axles 1 DTXC1547
2 5x10mm Front Gear Assembly 1 DTXC1535
1 3x6mm Front Gear Assembly 1 DTXC1503
4 5x8mm Steering Assembly 2 DTXC1523
