  • Based on the lightweight and user-friendly TT-01D Type-E chassis.
  • 4WD shaft driven bathtub chassis with coil spring damped, 4-wheel independent double wishbone suspension and sealed front and rear differential gearboxes.
  • Drift-spec modifications include tuned suspension, RS-540 sport-tuned motor, aluminum heat sink, CVA mini shock dampers and soft springs and adjustable upper arms.
  • Super Driftech tires which are made from a resin and rubber compound specially designed for long-lasting drift action. (26mm width)
  • LED Light Unit TLU-01 (Item 53909) and 2 white and 2 red 5mm LED lights are included.
  • 2-channel R/C system, battery pack and charger separately required.
  • Wide variety of Option Parts are separately available to further customize your chassis

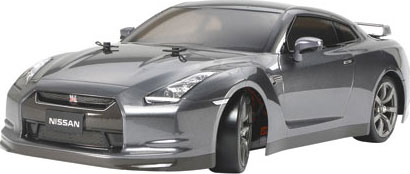

The GT-R is now available on the excellent drift spec TT-01D Type-E chassis and is the perfect way to enter the world of R/C drifting.

click image to enlarge
                   This is the electric powered 1/10 scale,
Tamiya Nissan GT-R On-Road Drift Spec Car Kit.

FEATURES: Chassis: TT-01D type E with shock tower now molded separately from
the gear case covers and new upper deck with transponder mount
new A parts (Uprights) made of polycarbonate plastic material
new D parts (upper deck, motor cover and more) made of fiberglass-
reinforced nylon material
Drive: Four wheel shaft drive
Electronic Speed Control: TEU-104BK with reverse or 105BK (TAMC5055)
or TBLE-02
Motor: 540 motor with pre-attached leads and blue aluminum heat sink
Lights: TLU-01 LED head and tail lights turn ON when car is switched
Ball Bearings: Installed in differentials, bushings in wheel hubs
Shocks: Oil-filled, plastic body CVA Super Mini
Gearbox: Sealed, front and rear
Differentials: Bevel gear, ball bearing equipped
Transmission: Single speed
Body: Polycarbonate, clear
Tires: Super Driftech drift spec resin 1" (26mm) wide, 2.5" (63mm)
Wheels: Seven spoke gun metal gray finish 2.0" (52mm) outer diameter,
0.94" (24mm) wide +2 offset
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
Steering: Bell-crank type with servo saver

INCLUDES: Tamiya Nissan GT-R On-Road Drift Spec Car kit, 540 motor, ESC, clear
body, tires, foam bumper, spoke wheels, 19 tooth pinion gear, 61
tooth spur gear, LED light kit, decals and instructions

REQUIRES: Radio: 2-channel with one servo
Radio Batteries: 8 AA size (for transmitter)
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

Length: 17.4" (444mm)
Width: 7.4" (187mm)
Height: 5.2" (132mm)
Weight: Approx. 3.1lbs (1400g)
Wheelbase: 10" (254mm)

Length: 17.2" (438mm)
Width: 7.5" (190mm) at rear wheels, widest point
6.8" (174mm) behind front wheels, narrowest point
Height: 4.3" (109mm)

COMMENTS: TLU-02 Light Control Unit (TAMC1477) can be added for greater control
of the lights

For Replacement Ball Bearings use:
Qty. Size Location Qty Bearing Set
12 5 x11mm front & rear diff gears, hubs 6 DTXC1547
4 8 X12mm front & rear diff gears 2 DTXC1597

Body shown on box is painted silver.
