TAM58452

1/10 Sand Scorcher VW Bug 2WD Off-Road Metal Kit

Product Info | Replacement Parts
RESOURCES

Replacement Parts (8)
TAMIYA

TAM58452
1/10 Sand Scorcher VW Bug 2WD Off-Road Metal Kit
By TAMIYA
$429.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Buggy Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$429.99
Warehouse ?
Stock availability for pick up
0
$429.99
Warehouse ?
0
$429.99
Store - Charlottetown ?
0
$429.99
Store - Edmonton ?
0
$429.99
Store - Mississauga ?
0
$429.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
Rear Wheel Drive
Drivetrain:
540 type
Brushed Motor Included:
TEU-104BK
ESC Included:

FEATURES

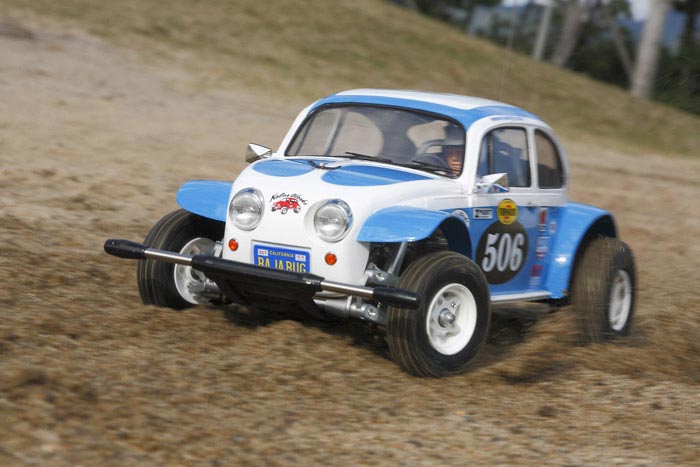

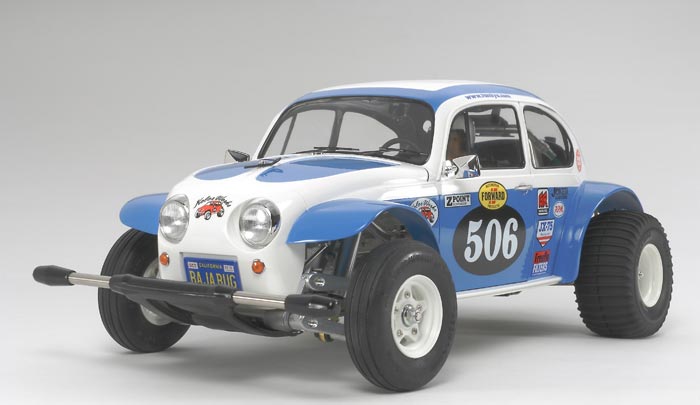

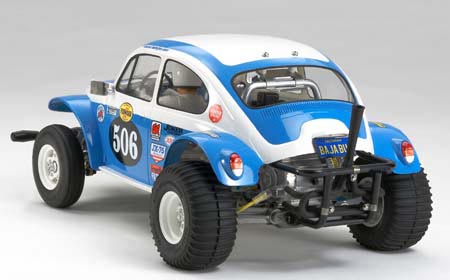

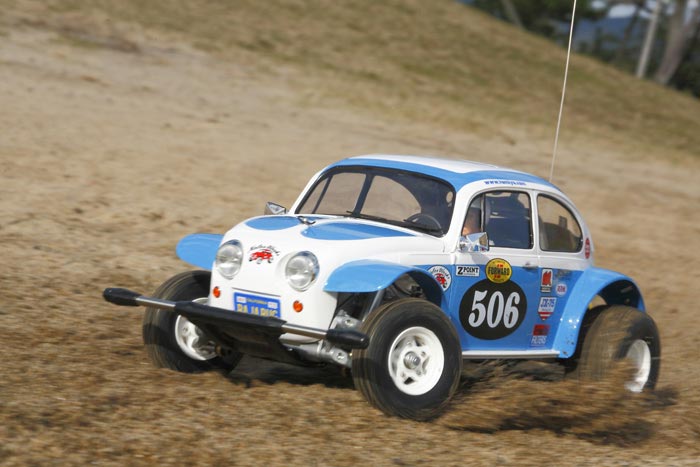

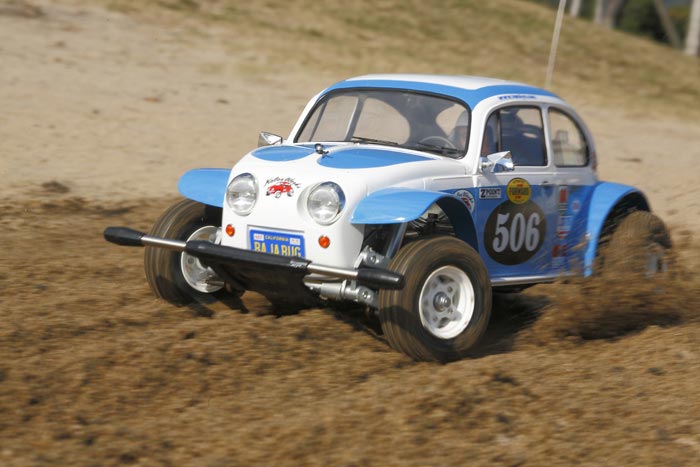

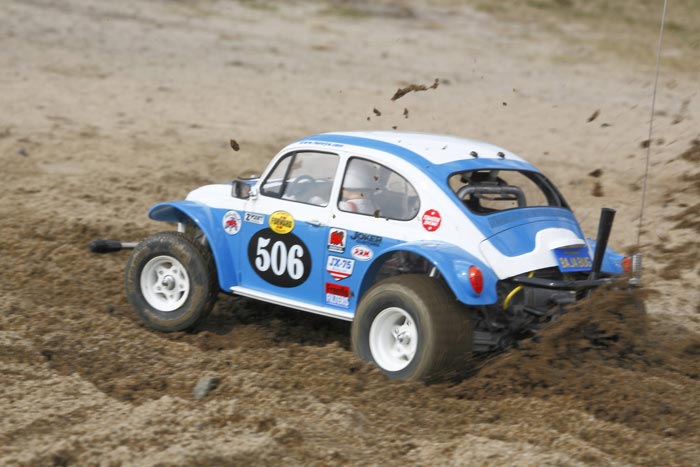

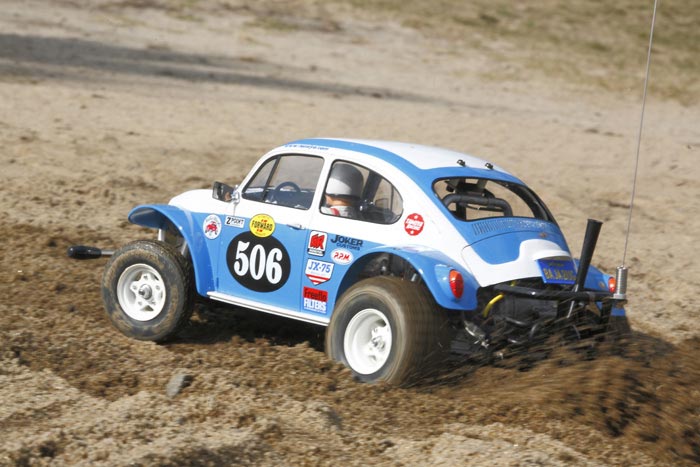

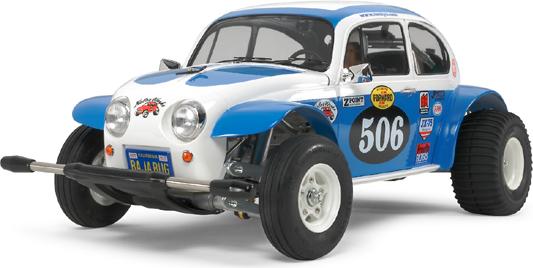

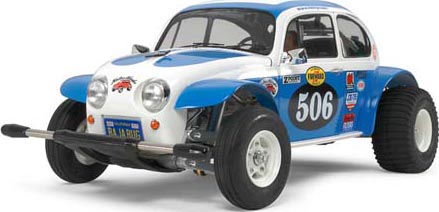

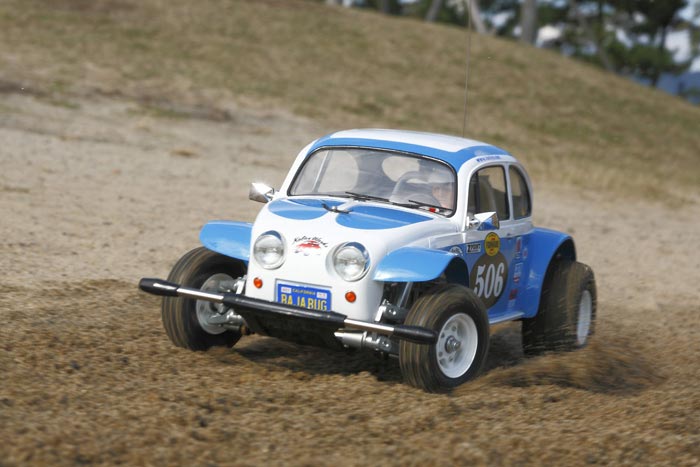

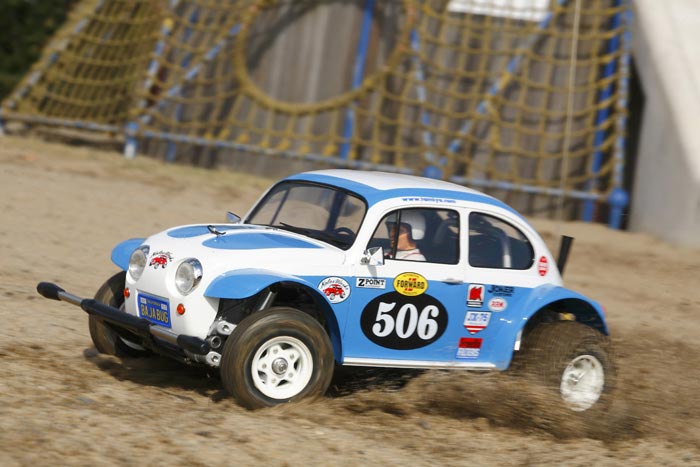

Tamiya is celebrating the 30th anniversary of the Sand Scorcher with an improved re-release of the model. The new improvements include more fine tuned parts. Just as the original, the updated Sand Scorcher features ribbed front tires and paddle rear tires. Since the Sand Scorcher and the Buggy Champ use the same chassis, the spare parts are interchangeable.

click image to enlarge
ADDITIONAL PHOTOS
PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the electric powered, radio controlled, 1/10 scale
Sand Scorcher Buggy Kit.

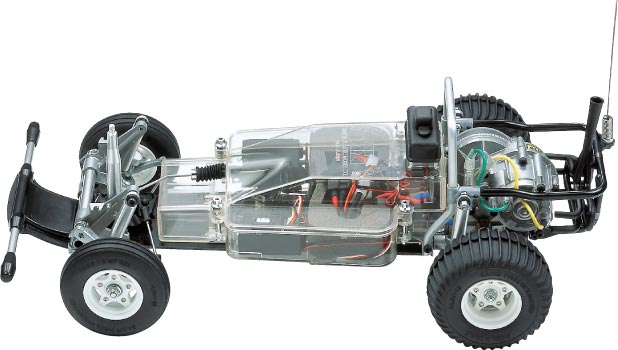

FEATURES: Chassis: 0.08" (2mm) thick FRP main frame with duralumin plate for
added strenth and flexibility
Drive: Rear wheel
Motor: 540 type
Electronic Speed Control: Tamiya TBLE-02 with Tamiya type battery
connector
Transmission: Single-speed

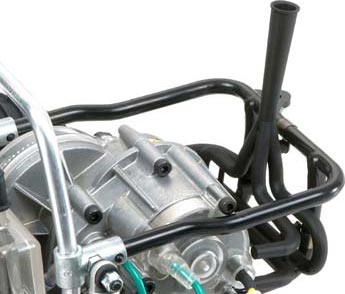

Gearbox: Transparent plastic, fully enclosed, die cast metal and
clear resin components
Body: Polystyrene, trimmed and molded in white
Bumper: Front reinforced resin with integrated metal bars
Shocks: Oil filled
Ball Bearings: Full set

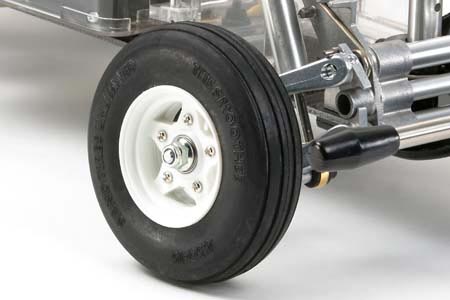

Tires: Front ribbed 2.7" (69mm) diameter, 0.71" (18mm) wide

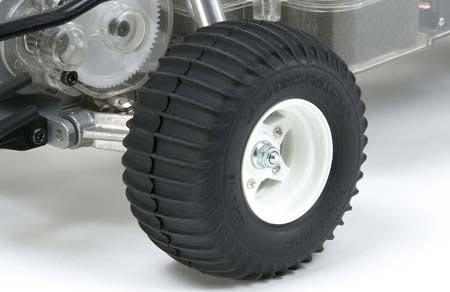

Rear paddle 3.1" (79.5mm) diameter, 1.6" (40mm) wide
Wheels: Three-piece center lock, molded in white
Suspension: Front double trailing arm, die cast front and rear arms
and metal uprights, swing axle rear suspension with metal torsion
bars
Camber: Non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bellcrank type with servo saver

INCLUDES: Sand Scorcher Buggy Kit, 540 motor, white plastic body, tires, wheels
oil-filled shocks, decals, 15T pinion gear, instruction manual,
70 tooth spur gear, driver bust and ESC

REQUIRES: Radio: 2-Channel with one servo
AA Radio Batteries: Eight for transmitter
Battery: Tamiya recommends a small 7.2V battery such as the
Duratrax Onyx NIMH 7.2V 1300mAh Stick Pack for 1/18 scale vehicles
(DTXC2031)
Connector: Standard Plug to Micro Plug Adapter (DTXC2210) to mate
with ESC if using battery listed above
Charger: Compatible with selected battery
Paint: Tamiya TS series lacquer or equivalent
Misc. Items: Building and track equipment

SPECS: Length: 15.7" (400mm)
Width: 8.3" (210mm)
Height: 5.9" (150mm)
Weight: 3.8lbs (1730g)
BODY-
Length: 13.6" (345mm)
Width: 6.8" (173mm) at widest point
Height: 4.7" (120mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty Bearing Set
2 5x11mm Final Gear Shaft 1 DTXC1547
2 5x11mm Counter Gear 1 DTXC1547
2 5x11mm Drive Shaft 1 DTXC1547
2 5x11mm Rear Shafts 1 DTXC1547
4 5x11mm Front Wheels 2 DTXC1547
To paint the body to match the pictures on the box, order the
following Tamiya colors;
French Blue TAMR5010 Gloss Black TAMR1518
Pure White TAMR5026 Clear Orange TAMR1526
White Flat Black TAMR1701
Red TAMR1507 Flat Flesh TAMR1715
