1/10 BMW M3 GT2 2009 - TT01E

This vehicle is built on the TT-01 Type E chassis and is a R/C model of Rahal Letterman's BMW M3 GT2, which was raced at the 2009 American Le Mans Series.

          This is the 1/10 scale electric powered, radio controlled,
              Tamiya Rayhal Letterman BMW M3 GT2 On-Road Car Kit.
                    May be used in Tamiya Official Races.

FEATURES: Chassis: TT-01 type E with shock tower now molded separately from
            the gear case covers and new upper deck with transponder mount
            new A parts (Uprights) made of polycarbonate plastic material
            new D parts (upper deck, motor cover and more) made of fiberglass-
            reinforced nylon material
          Drive: Four wheel shaft drive
          Motor: 540 size with pre-attached leads
          Electronic Speed Control: Tamiya TEU-104BK
          Lights: Tamiya TLU-01 (TAMC1394) LED light unit with four LED lights,
            see COMMENTS
          Shocks: Friction, not oil-filled, composite body
          Gearbox: Sealed front and rear
          Differentials: Bevel gear
          Transmission: Single speed
          Tires: Racing slick type 1.02" (26mm) wide, 2.48" (63mm) diameter
          Wheels: Gray plastic 1.02" (26mm) wide, 2.04" (52mm) diameter
          Body: Polycarbonate, requires trimming and painting
          Bumpers: Foam front bumper
          Suspension: Four wheel independent double wishbone
          Camber: Non-adjustable, camber refers to the angle of the tops of the
            tires from vertical when viewed from front or behind vehicle
          Steering Tie Rods: Fixed non-adjustable, caster/toe-in refers to the
            angle of the front suspension when viewed from the side of the car
            in relation to the chassis
          Steering: Bell-crank type, TA-05 type steering system that reduces
            slop
          Servo Saver: Included

INCLUDES: Tamiya BMW M3 GT2, friction shocks, 540 motor, electronic speed
            control, clear body, tires, foam bumper, wheels, body trim &
            sponsor decals, 19 tooth pinion gear, 61 tooth spur gear,
            instruction manual, LED light unit

REQUIRES: Radio: 2-channel with one steering servo
          Battery: 6-cell stick pack with standard connector
          Charger: AC/DC Timed or Peak for 6-cell battery

SPECS:      VEHICLE-
          Length: 17.8" (452mm)
          Width:   7.4" (188mm)
          Height:  5.2" (132mm)
          Weight:  39.1oz (1110g)
            BODY-
          Length: 17"   (440mm)
          Width:   7.3" (185mm) ahead of front wheels, narrowest point
                   7.5" (190mm) at rear wheels, widest point
          Height:  4.7" (120mm)

COMMENTS: The TLU-02 Light Control Unit (not included) can be installed for
            more light effects, order TAMC1477.

          For Replacement Ball Bearings use:
            Qty.  Size      Location                       Bearing Set Qty.
            12   5x11mm   front & rear diff gears, hubs  (use 6-DTXC1547)
             4   8X12mm   front & rear diff gears        (use 2-DTXC1597)

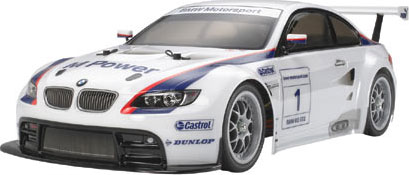

          Body pictured on the box is painted white with all sponsor and body
            trim decals applied.

                                                                   jxs 11/30/09
                                                                     cnh 1/7/10
                                                                         ir/jxs
