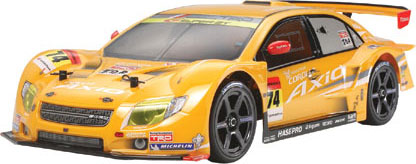

1/10 Corolla Axio apr GT TA05V
click to enlarge
- This kit features the livery seen at the 2009 Super GT Round 3 at Fuji.
- The newly designed polycarbonate body accurately reproduces the ground-hugging form of the Corolla.
- Separately molded side mirrors and rear wing.
- 2-belt driven TA05 ver.II chassis.
- Comes with medium narrow racing slick tires and 6-spoke gun metal wheels (offset +2).
- Type 540 motor included.
- 2-channel R/C system, ESC, battery pack & charger are separately required.
The Corolla Axio apr GT was revealed on January 9, 2009 at the Tokyo Auto Salon. The vehicle is Super GT's new GT300 class vehicle. In the 2008 season, apr competed in the GT300 class with the Toyota MR-S and MR2. The team won the driver's title three times in the past and achieved first place with the MR-S last season. The Corolla's improved aerodynamics has helped the team receive better results.
This is the 1/10 scale electric powered, radio controlled, Tamiya Corolla Axio apr GT On Road Car Kit. FEATURES: Chassis: TA05 version II with reduced width for better ground clearance during chassis rolls and battery position shifted further forward, composite bathtub style .08" (2mm) thick, single deck frame Drive: Four wheel two belt drive, tension adjustable Motor: 540 motor with pre-attached leads Ball Bearings: Full set included Shocks: Four oil filled CVA super mini, plastic body Gearboxes: Enclosed, front and rear Differentials: Two ball type, 37T Transmission: Single speed Tires: Slick racing tire with foam inserts, 2.5" (64mm) diameter, 0.94" (24mm) wide Wheels: One-piece 6-spoke gray in color, 1.9" (48mm) diameter, 0.94" (24mm) wide, +2° offset Body: Lightweight polycarbonate Corolla Axio apr with decals Bumpers: Foam front bumper Suspension: IFS (Inboard Front Suspension) with horizontally mounted shocks with push rod and rocker arm, front and rear lightweight reversible arms for fine tuning, double wishbone rear suspension Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis Camber: Adjustable, front and rear, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle Steering: Bell-crank type Servo Saver: Included INCLUDES: TA05 ver.II rolling chassis with oil filled shocks, 540 motor, clear body, slick tires, foam inserts, foam bumper, 6-spoke wheels 22 tooth pinion gear, 70 tooth spur gear, rear wing, mirrors, decal sheet and instructions _REQUIRES: Radio: 2-channel with 1 standard servo and Electronic Speed Control Radio Batteries: 8 AA size Battery: 6-cell stick pack with standard connector Charger: AC/DC peak type for 6-cell battery Paint: Spray or brush-on for Lexan body Misc. Items: Building and track equipment SPECS: VEHICLE- Length: 14.7" (373mm) Width: 7.4" (188mm) Height: 4.8" (122mm) Weight: 2.3lbs (1060g) Wheelbase: 10.1" (257mm) Tread: 6.5" (167mm) Gear Ratio: 1:7.19 BODY- Length: 16.7" (424mm) Width: 7.6" (194mm) Height: 3.5" (90mm) COMMENTS: For Replacement Ball Bearings use: Qty. Size Location Qty. Bearing Set 2 5x8mm Front Ball Diff 1 DTXC1523 2 5x8mm Rear Ball Diff 1 DTXC1523 2 10x15mm Front Ball Diff 1 DTXC1595 2 10x15mm Rear Ball Diff 1 DTXC1595 2 4x8mm flanged Motor Mount 1 DTXC1517 4 5x10mm Front Hubs 2 DTXC1535 4 5x10mm Rear Hubs 2 DTXC1535 2 4x8mm Center Pulley 1 DTXC1511 4 5x8mm Steering Arms 2 DTXC1523 4 5x8mm Front Shock Stays 2 DTXC1523 jxs 01/05/10 ir/jxs
