1/10 Mercedes AMG DTM C Class

Product Info | Replacement Parts | Optional Items

1/10 Mercedes AMG DTM C Class
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
G Parts TT-01
Body Pin Set
Pinion Gear Set 20/21T
Heat Resist Dbl Side Tape
RS540 Sport Tuned Motor 49/62
Body Mount Extension Set
1/10 Datsun 240Z Rally Body Pr

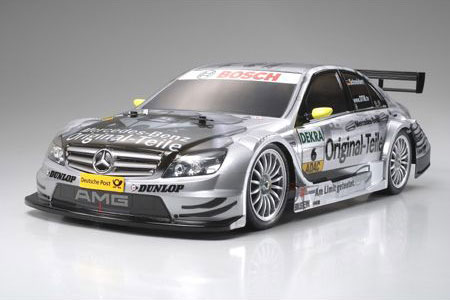

  • This is a 1/10 scale R/C assembly model kit of the 2008 Mercedes Benz AMG DTM C Class.
  • The polycarbonate body accurately captures the impressive form of the car.
  • Shaft driven 4-wheel drive TT-01 Type-E chassis gives this electric R/C car superior control and handling.
  • Comes with racing slick tires.
  • 2 white and 2 red 5mm LED lights (Total 4) are included.
  • Comes with LED Light Unit TLU-01 (Item 53909). *It is possible to assemble with the separately available LED Light Control Unit TLU-02 (Item 53937) which allows up to 16pairs of LEDs (total 32 LEDs) to be controlled.
  • ESC and type 540 motor included.
  • 2-channel R/C system, battery pack & charger are separately required.
  • A wide variety of Option Parts are available for you to further customize your machine.

Featuring throughout the 2008 DTM (German Touring Car Masters) season was the impressive No.6 Mercedes C Class entrant with famed driver Bernd Schneider at the helm.The car proved to be a highly competitive machine and went on to win first place at Round 7 Nurburgring in Germany and third place at Round 9 Circuit de Catalunya in Spain.

click image to enlarge
          This is the 1/10 scale electric powered, radio controlled,
Tamiya Mercedes AMG 2008 DTM C-Class On-Road Car Kit.

FEATURES: Chassis: TT-01 type E with shock tower now molded separately from
the gear case covers and new upper deck with transponder mount,
new A parts (Uprights) made of polycarbonate plastic material,
new D parts (upper deck, motor cover and more) made of fiberglass-
reinforced nylon material
Drive: Four wheel shaft drive
Motor: 540 size with pre-attached leads
Electronic Speed Control: Tamiya TEU-101BK
Lights: Tamiya TLU-01 (TAMC1394) LED light unit with four LED lights,
Shocks: Friction, not oil-filled, composite body
Gearbox: Sealed front and rear
Differentials: Bevel gear
Transmission: Single speed
Tires: Racing slicks 1.02" (26mm) wide, 2.48" (63mm) diameter
Wheels: 16-spoke plastic 1.02" (26mm) wide, 2.04" (52mm) diameter,
gray in color
Body: Lightweight polycarbonate, requires trimming and painting
injection molded side mirrors and rear wing
Bumpers: Foam front bumper
Suspension: Four wheel independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Fixed non-adjustable, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis
Steering: Bell-crank TA-05 type with servo saver
Servo Saver: Included

INCLUDES: Tamiya Mercedes AMG 2008 DTM C Class, friction shocks, 540 motor,
electronic speed control, clear body, tires, foam bumper, wheels
19 tooth pinion gear, 61 tooth spur gear, instructions, LED light
unit, window mask and body trim decals

REQUIRES: Radio: 2-channel with one steering servo
Battery: 6 cell stick pack with standard connector
Charger: AC/DC Timed or Peak for 6-cell battery
Misc: Polycarbonate safe paint, building & track equipment

Length: 17.5" (444mm)
Width: 7.4" (187mm)
Height: 5.2" (132mm)
Length: 17.5" (444mm)
Width: 7.48" (190mm)
Height: 4.2" (107mm)

COMMENTS: The TLU-02 Light Control Unit (not included) can be installed for
more light effects, order TAMC1477.

For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
12 5x11mm front & rear diff gears, hubs 6-DTXC1547
4 8X12mm front & rear diff gears 2-DTXC1597

Body pictured on the box is painted silver.

jxs 7/13/09
4950344584338 4950344584338
