TAM58424

1/10 Takata NSX '08 TB03 Tenta

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58424
1/10 Takata NSX '08 TB03 Tenta
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$237.14
Warehouse ?
StockStock availability for pick up
0
$237.14
Warehouse ?
0
$237.14
Store - Charlottetown ?
0
$237.14
Store - Edmonton ?
0
$237.14
Store - Mississauga ?
0
$237.14
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Body Set Zakspeed Capri GR5 Jagermeister Ford
$68.99

1/10 Cusco Dunlop Subaru Body
$68.99

Body Set Laferrari
$64.99

Body Set Honda Civic Type-R R3 JAS Motorsport
$71.99
Body Set Nissan GT-R Sumo Power GT
$75.99

Alum Spur Gear Mount TB-03
$13.99

Body Set Nissan R390 GT1
$64.99

Carbon Rein Hub Carrier 4 Degree For Rev. Sus.
$12.99
FEATURES
  • The new TB-03 chassis is totally improved upon its predecessor the TB-02.
  • Bathtub frame comes with a motor cooling duct to improve heat dissipation for better performance.
  • In-board Front Suspension system features horizontally-mounted front dampers to enable a low-nose profile to mount the aerodynamic polycarbonate body shell.
  • The body shell is also compatible with TA05-IFS chassis
  • Newly-designed one-piece aluminum motor mount makes changing and adjusting gears a breeze.
  • 3 piece propeller shaft.
  • Equipped with front and rear ball differentials for greater power transmission efficiency.
  • Race-proven reversible short suspension and TRF416 front and rear knuckles.
  • Includes body, wheels, tires, and Type 540 motor.
  • ESC, 2-channel R/C system, 7.2V battery and charger separately required.

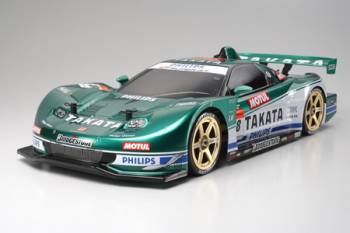

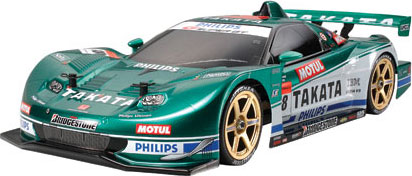

The Takata NSX 2008 now comes as an 1/10 R/C car ready for you to take it for a blast. The polycarbonate body shell accurately captures the famous shape of the NSX and and when painted in its green livery you will definitely turn heads down at the race course.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the electric powered, radio controlled, 1/10 scale
Tamiya Takata NSX 08 On-Road Car Kit.

**Additional Technical Info Will Be Added When It Becomes Available.**

FEATURES: Chassis: TB-03 bathtub type with motor cooling duct
Drive: Four wheel shaft
Motor: 540 size
Motor Mount: One-piece aluminum allows easy changing and adjusting of
gears
Ball Differentials: Front and rear
Wheels: Six spoke plastic, gold in color 0.94" (24mm) wide, 1.9"
(48mm) diameter
Tires: Racing slick, width 0.94" (24mm), diameter, 2.5" (64mm) with
foam inserts
Shocks: C.V.A. super mini oil filled, plastic body
Suspension: Inboard front suspension with horizontally mounted shocks
for low front profile, reversible short suspension and TRF416-spec
front and rear uprights
Ball Bearings: Full set
Body: Clear polycarbonate with wing
Bumpers: Front urethane
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver with adjustable tie rod

INCLUDES: Tamiya TAkata NSX 08 on-road Car Kit with body, wheels, decals,
instruction manual, 22 tooth pinion, 64 tooth spur gear, white
plastic rear wing

REQUIRES: Radio: 2-channel with one servo and ESC
Radio Batteries: Eight AA
Battery: 6-cell stick type with Tamiya type connector
Battery Charger: Timed or peak for 6-cell battery
Building and field equipment

Vehicle-
SPECS: Length: 14.3" (363mm)
Width: 7.4" (188mm)
Height: 4.1" (104mm)
Weight: 2.4lbs (1077g)
Wheelbase: 10.1" (257mm)
Tread: 6.5" (165mm) center of front wheels side to side
Gear Ratio: 1:7.09
Body-
Length:
Width:
Height:

For replacement bearings use:
Qty. Size Location Qty. Bearing Set
4 5x8mm Fr/R Diffs 2 DTXC1523
4 10x15mm Fr/R Diffs 2 DTXC1595
2 5x10mm Spur Gear 1 DTXC1535
1 6x10mm Spur Gear 1 DTXC1561
1 6x10mm Front Gearbox 1 DTXC1561
1 5x10mm Front Gearbox 1 DTXC1535
1 6x10mm Rear Gearbox 1 DTXC1561
1 5x10mm Rear Gearbox 1 DTXC1535
4 5x8mm Steering Linkage 2 DTXC1523
2 5x10mm Front Axles 1 DTXC1535
2 5x10mm Rear Axles 1 DTXC1535

jxs 11/12/08
4950344584246 4950344584246
TAMC0864
