1/10 ARTA Garaiya TB-03 Kit

Product Info | Replacement Parts | Optional Items

1/10 ARTA Garaiya TB-03 Kit
$279.99 CAD    307.99
Save $28.00 (9%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Kits
But only from... TAMIYA
All items from... TAMIYA

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
CVA Mini Shock II V Parts
Body Set Zakspeed Capri GR5 Jagermeister Ford
Molybdenum Grease
3mm Grub Screw 44002
Heat Resist Dbl Side Tape
Alum Spur Gear Mount TB-03
Body Set Ferrari 458
  • The new TB-03 chassis is totally improved upon its predecessor the TB-02.
  • Bathtub frame comes with a motor cooling duct to improve heat dissipation for better performance.
  • In-board Front Suspension system features horizontally-mounted front dampers to enable a low-nose profile to mount the new-mold aerodynamic polycarbonate body shell.
  • The body shell is also compatible with TA05-IFS chassis
  • Newly-designed one-piece aluminum motor mount makes changing and adjusting gears a breeze.
  • Equipped with front and rear ball differentials for greater power transmission efficiency.
  • Race-proven reversible short suspension and TRF416 front and rear knuckles.
  • Includes body, wheels, tires, and Type 540 motor.
  • ESC, 2-channel R/C system, 7.2V battery and charger separately required

Autobacs Racing Team Aguri re-entered their modified ASL Garaiya in the GT300 class of the 2007 Japan Super GT series to commemorate the 10th anniversary of ARTA. With the veteran driver duo of Morio Nitta and Shinichi Takagi at the wheel, the team showed early promise to take 1st place at Round 3 Fuji Speedway, and went on to finish a respectable 4th place in the season's overall standings.

click image to enlarge

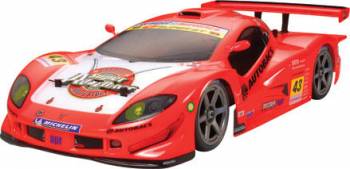

         This is the electric powered, radio controlled, 1/10 scale
Tamiya Arta Garaiya On-Road Car Kit.

FEATURES: Chassis: TB-03 bathtub type with motor cooling duct
Drive: Four wheel shaft
Motor: 540 size
Motor Mount: One-piece aluminum allows easy changing and adjusting of
Ball Differentials: Front and rear
Wheels: Six spoke plastic, gun metal gray in color 0.94" (24mm)
wide, 1.9" (48mm) diameter
Tires: Racing slick, width 0.94" (24mm), diameter, 2.5" (64mm) with
foam inserts
Shocks: C.V.A. super mini oil filled, plastic body
Suspension: Inboard front suspension with horizontally mounted shocks
for low front profile, reversible short suspension and TRF416-spec
front and rear uprights
Body: Clear polycarbonate with wing
Bumpers: Front urethane
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
Steering: Bell-crank type with servo saver with adjustable tie rod

INCLUDES: Tamiya Arta Garaiya On-Road Car Kit with body, wheels, decals and
instruction manual, 22 tooth pinion, 64 tooth spur gear, white
plastic rear wing

REQUIRES: Radio: 2-channel with one servo
Radio Batteries: Eight AA
Battery: 6-cell stick type with Tamiya type connector
Battery Charger: Timed or peak for 6-cell battery
Building and field equipment

SPECS: Length: 14.3" (363mm)
Width: 7.4" (188mm)
Height: 4.1" (104mm)
Weight: 2.4lbs (1077g)
Wheelbase: 10.1" (257mm)
Tread: 6.5" (165mm) center of front wheels side to side
Gear Ratio: 1:7.09
Length: 15.5" (394mm)
Width: 8" (203mm)
Height: 3.5" (89mm)

For replacement bearings or to upgrade to bearings use:
Qty. Size Location Qty. Bearing Set
4 5x8mm Fr/R Diffs 2 DTXC1523
4 10x15mm Fr/R Diffs 2 DTXC1595
2 5x10mm Spur Gear 1 DTXC1535
1 6x10mm Spur Gear 1 DTXC1561
1 6x10mm Front Gearbox 1 DTXC1561
1 5x10mm Front Gearbox 1 DTXC1535
1 6x10mm Rear Gearbox 1 DTXC1561
1 5x10mm Rear Gearbox 1 DTXC1535
4 5x8mm Steering Linkage 2 DTXC1523
2 5x10mm Front Axles 1 DTXC1535
2 5x10mm Rear Axles 1 DTXC1535

jxs 6/09/08
4950344584093 4950344584093
