Home » Product Info »
TAM58406

1/10 Cayenne S '07 DF-01 Kit

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58406

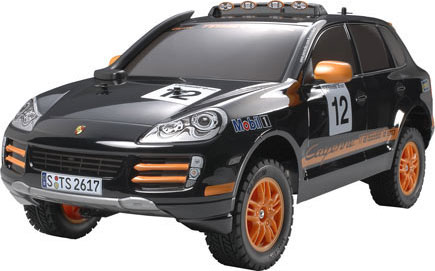

1/10 Cayenne S '07 DF-01 Kit
By TAMIYA
$234.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Rally Racer Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$234.99
Warehouse ?
StockStock availability for pick up
0
$234.99
Warehouse ?
0
$234.99
Store - Charlottetown ?
0
$234.99
Store - Edmonton ?
0
$234.99
Store - Mississauga ?
0
$234.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

RS540 Sport Tuned Motor 49/62
$38.99

3mm Grub Screw 44002
$5.99

Pinion Gear Set 20/21T
$9.99
TG10 Front Wheel Axle
$12.99

GT Tuned Motor 25t
$55.99

Pinion Gear Set 18/19T
$9.99

Touring Car Ltwt King Pin
$9.99
FEATURES
  • High-quality R/C assembly model kit of the Cayenne S Transsyberia 2007.
  • Reliable DF-01 shaft-driven 4WD chassis with 4-wheel double wishbone suspension equipped with oil dampers.
  • Finely-detailed body shell made from 1mm thick lightweight polycarbonate and features separate vacuum-molded front and rear bumpers for extra realism.
  • Side mirrors, fog lamps, snorkel, and rear spoiler all separately molded from durable ABS resin for the highest level of detail.
  • Realistic wheels with accurate, thin spokes mounted with off-road tires for excellent all-terrain traction.
  • Sticker set included to recreate the No.12 car.
  • 2-Channel R/C system with ESC, 7.2V running battery pack & charger separately required.

For about two weeks starting from August 2nd, the Transsyberia Rally 2007 tested the limits of both man and machine in a grueling 7,100km transcontinental race from Moscow, Russia to Ulaanbaatar, Mongolia. After two private teams driving the Cayenne S entered and won the event in 2006, Porsche took notice and offered a limited production version of their SUV specifically for this rally. Many modifications, both internal and external, were added to ensure excellent off-road performance. Cayennes used for this rally featured both black and orange and silver and orange race liveries.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
           This is the 1/10 scale electric powered, radio controlled,
Tamiya Porsche Cayenne S Transsyberia 2007 off-road Kit.

FEATURES: Chassis: DF-01 lightweight plastic bathtub type
Drive: Four wheel shaft driven
Shocks: Oil filled, plastic body
Suspension: Double wishbone
Electronic Speed Control: Tamiya TEU-101BK
Gearboxes: Sealed
Differentials: Planetary gear
Wheels: One-piece 1.02" (26mm) wide, 2.04" (52mm) diameter
Tires: Off-road 1.02" (26mm) wide, 3.1" (78mm) diameter
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Body: Lightweight polycarbonate 0.04" (1mm) thick with separate
vacuum molded front and rear bumpers, separately molded ABS resin
side mirrors, fog lamps, snorkel and rear spoiler

INCLUDES: Tamiya Tamiya Transsyberia 2007 Kit with 74 tooth spur gear, 16
tooth pinion gear, motor, body with #12 car decals, instruction
manual and esc

REQUIRES: Radio: 2-channel with one standard servo
Radio Batteries: 8 AA for transmitter
Battery: 6 cell stick pack with standard connector
Charger: AC/DC Timed or Peak for 6-cell battery

SPECS: Vehicle-
Length: 16.8" (427mm)
Width: 8" (204mm)
Height: 7.5" (190mm)
Weight: 2.7lbs (1220g)
Body-
Length: 18.5" (470mm)
Width: 7.3" (186mm)
Height: 5.4" (137mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Gearbox 1 DTXC1547
2 5x11mm Front Gearbox 1 DTXC1547
1 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Spur Gear 1 DTXC1523
2 5x8mm Idler Gear 1 DTXC1523
4 5x11mm Rear Hubs 2 DTXC1547
4 5x11mm Front Hubs 2 DTXC1547
1 5x11mm Counter Gear 1 DTXC1547
1 5x8mm Counter Gear 1 DTXC1523

jxs 03/17/08
ir/jxs
4950344584062 4950344584062
TAMC0840
