TAM58374

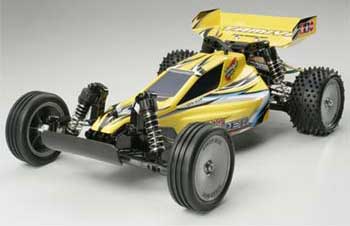

1/10 Sand Viper Kit

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM58374
1/10 Sand Viper Kit
By TAMIYA
$179.99 CAD
Order Quantity:
No Picture Available

More like this... R/C Electric 2WD Buggy Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$179.99
Warehouse ?
StockStock availability for pick up
0
$179.99
Warehouse ?
0
$179.99
Store - Charlottetown ?
0
$179.99
Store - Edmonton ?
0
$179.99
Store - Mississauga ?
0
$179.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

4mm Flange Lock Nut 58232
$4.99
TG10 Front Wheel Axle
$12.99

Diff Bevel Gear Set 49/84
$7.99

540 Johnson Motor
$28.99

Body Set Sand-Viper
$26.99
SPECIFICATIONS
384 mm
Length:
248 mm
Width:
140 mm
Height:
260 mm
Wheelbase:
26 mm
Minimum Clearance:
1042 g
Weight:
540 type
Motor (included):
Rear wheel drive
Drivetrain:
216/208 mm
Track Front/Rear:
4-wheel Double Wishbone
Suspension:

FEATURES
  • High performance 2WD off road buggy assembly kit.
  • 4-wheel independent double wishbone suspension with oil dampers secures stable running.
  • Suspension upper arms use double-ended shafts, enabling fully adjustable camber angle.
  • TEU-101BK electronic speed control included with kit.
  • Type 540 motor.
  • Differential gear gearbox is fully sealed from dirt and stones, ensuring a long life of smooth handling.
  • Drive shaft features joint cup made of highly durable metal.
  • Full ball bearing configuration offers maximum engine efficiency.
  • Features wide grooved front tires and spiked rear tires for excellent off-road ability.
  • Newly designed body and wing shape
  • Wheels are off-road dish type

This 1/10 scale 2WD assembly off-road buggy continues in the vein of Tamiya's successful Desert Gator buggy, but features an all-new body and wing shape, together with dish type wheels. Versatile and reliable DT-02 chassis features transverse mounted Type RS540 motor and 4-wheel double wishbone suspension. Full ball bearings ensure maximum efficiency and a long-life of dirt tearing action!

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
   This is the radio controlled, electric powered, 1/10 scale, unassembled
Tamiya Sand-Viper Buggy Kit.

FEATURES: Chassis: DT-02
Drive: Rear wheel, shaft driven
Motor: 540 size, transverse mounted
Electronic Speed Control: Tamiya TEU-101BK with reverse
Ball Bearings: Full set included
Body: Polycarbonate with rear wing
Decals: Pre-cut, Peel and Stick
Tires: Front 1.1" (28mm) wide, 3.1" (79mm) dia
Rear 1.6" (41mm) wide, 3.4" (86mm) dia
Wheels: Front 1.4" (35mm) wide, 2.4" (60mm) dia
Rear 1" (25.4mm) wide, 2.4" (60mm) dia
Shocks: Four oil filled
Bumper: Front plastic
Main Gear: Plastic, 55 tooth Gear
Gearbox: Differential type fully sealed
Suspension: 4-wheel double wishbone
Steering: Direct to servo via servo saver

INCLUDES: Tamiya Sand Viper Buggy with Electronic Speed Control, 540 size motor
front ribbed tires, rear spiked tires, disc-style wheels,
polycarbonate body with wing and illustrated instruction manual.

REQUIRES: Radio: 2-channel with one standard servo
Radio Batteries: 8 AA batteries for transmitter
6-Cell Battery: Stick pack with Tamiya type connector
Charger: AC/DC Timed or Peak for 6-cell battery
Paint: Spray or brush-on, polycarbonate safe
Building and track equipment

SPECS: Overall Length: 15.1" (384mm)
Overall Width: 9.8" (248mm)
Overall Height: 5.5" (140mm)
Chassis Weight: 2.3lbs (1041g)
Wheelbase: 10.2" (260mm)
Gear Ratio: 9.28:1

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Bearing Set Qty.
(14) 5 x 11mm All DTXC1547 (x2)
DTXC1549 (x1)
