1/10 XB Mercedes-Benz Unimog 425 CC01 RTR

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (12)
Optional Items (16)
TAMIYA

TAM57896
1/10 XB Mercedes-Benz Unimog 425 CC01 RTR
By TAMIYA
$496.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Scale Trail Truck
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$496.99
Warehouse ?
Stock availability for pick up
0
$496.99
Warehouse ?
0
$496.99
Store - Charlottetown ?
0
$496.99
Store - Edmonton ?
0
$496.99
Store - Mississauga ?
0
$496.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

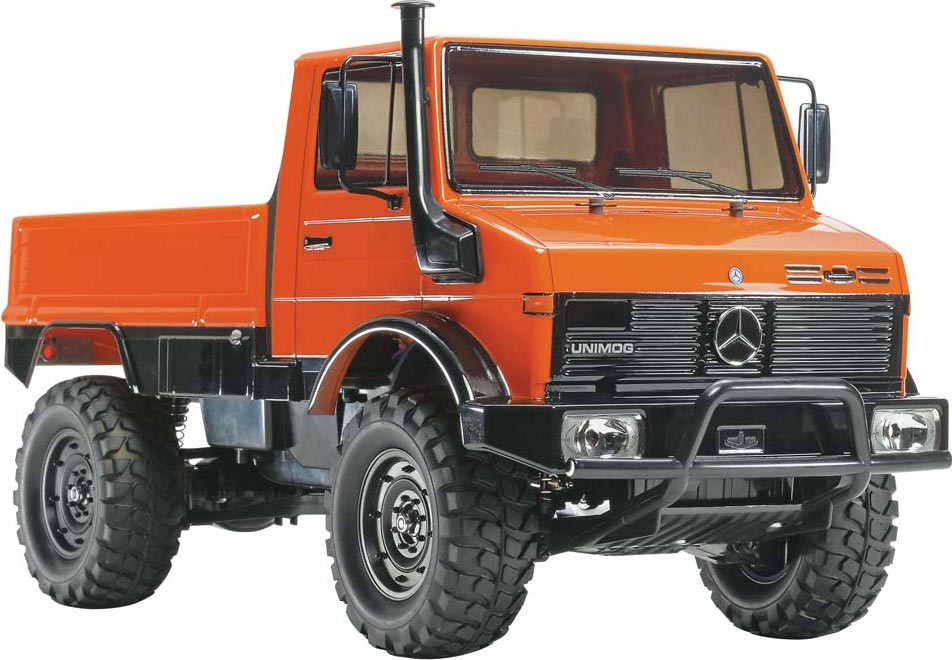

      This is the Electric Powered, 2.4GHz Radio Controlled, 1/10 scale
Ready to Run Tamiya Mercedes Benz Unimog 425 Off Road Vehicle.
From Tamiya's XB Pro Expert Built Series.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel
Motor: Johnson/Mabuchi 540-J size, brushed
Radio: Tamiya Finespec FHSS 2.4GHz, steering and throttle trim and
reverse, TSU-03 steering servo
Pinion Gear: 16 tooth metal
Electronic Speed Control: Tamiya TEU-105BK with reverse and Kyosho
type connector
Body: Polycarbonate, trimmed and painted orange with separate
mirror and exhaust stack
Gearbox: Enclosed
Differential: Bevel gear type
Front Suspension: Double wishbone
Rear Suspension: Four link rigid
Shocks: CVA oil-filled
Wheels: One piece plastic, black in color
Tires: Treaded rubber, off-road
Steering: Bellcrank type
Caster: Adjustable front, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Camber: Non-adjustable, camber refers to the angle of the tops of
the tires from vertical when viewed from front or behind vehicle

INCLUDES: RTR Tamiya Mercedes Benz Unimog 425 Off-Road Vehicle with 2.4GHz
Radio, ESC, 540 Brushed Motor, Tires, Wheels and Instructions

REQUIRES: AA Batteries: Four for transmitter
Battery: 7.2V 6-cell stick pack with standard connector
Battery Charger: Peak type recommended
Tools and track equipment

SPECS: Vehicle:
Length: 15.7" (398mm)
Width: 7.75" (197mm)
Height: 8.2" (209mm)
Body:
Length: 15.9" (406mm)
Width: 6.8" (174mm)
Height: 5" (127mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547
