1/10 XB Racing Fighter DT03 RTR

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM57895
1/10 XB Racing Fighter DT03 RTR
By TAMIYA
$269.99 CAD    333.99
Save $64.00 (19%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric 2WD Buggy
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$269.99
Warehouse ?
StockStock availability for pick up
0
$269.99
Warehouse ?
0
$269.99
Store - Charlottetown ?
0
$269.99
Store - Edmonton ?
0
$269.99
Store - Mississauga ?
0
$269.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Full Turnbuckle Set DT03
$26.99

Front Wheel DT-03
$12.99

Rear Wheel DT-03
$12.99

Stabilizer Set Front/Rear DT03
$26.99
Front Tire DT-03
$16.99

Carbon Damper Stay Rear DT03
$26.99

Aluminum Steering Arm GF-01
$29.99

CVA Damper Set DT03
$33.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

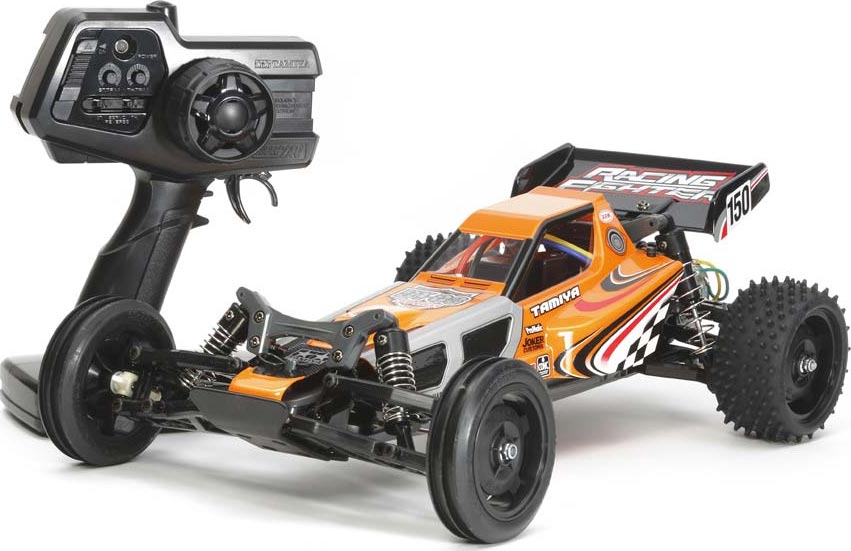

         This is the 1/10 scale, radio controlled, electric powered,
ready to run XB Neo Racing Fighter Buggy.
For ages 14 and above.

FEATURES: Chassis: DT-03 plastic monocoque
Drive: Rear wheel with dogbones
Radio System: Tamiya Finespec 2.4GHz pistol grip with steering and
throttle trim and reverse and steering servo
Electronic Speed Control: Tamiya TEU-105BK with reverse (TAMC5055)
Motor: 540 brushed, preinstalled to assembled gearbox
Suspension: Fully independent wheel double wishbone
Differential: Bevel gear
Body; Painted polycarbonate
Driver Figure: Painted plastic
Shocks: Coil over plastic body friction, not oil-filled
Wheels: Black plastic
Tires: Front, grooved
Rear, pin spike
Steering: Direct servo with tie rods
Front Bumper: Spring type to absorb minor impacts
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis

INCLUDES: RTR Tamiya Neo Fighter Buggy with brushed motor, ESC, painted body,
Rear Wing, 17T pinion gear, tires, wheels, shocks, decal sheet,
2.4GHz Radio and instruction manual

REQUIRES: Battery: 7.2V stick pack with standard connector
Battery Charger: To match selected battery
AA batteries: Four for transmitter
Track and Maintenance equipment

SPECS: Vehicle-
Length: 15.5" (394mm)
Width: 9.5" (241mm)
Height: 4.8" (122mm) measured at rear wing
Wheelbase: 11.3" (288mm)
Front Tread: 8.7" (221mm)
Rear Tread: 8.2"(208mm) distance between centers of tires measured
side-to-side
Body-
Length: 11.25" (286mm)
Width: 5" (127mm) at widest point
Height: 2.8" (71mm)

COMMENTS: To Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Uprights 1 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
8 5x11mm Front Uprights 4 DTXC1547
