TAM57894

1/10 XB Honda City Turbo WR02C RTR

Product Info | Replacement Parts
RESOURCES

Replacement Parts (11)
TAMIYA

TAM57894
1/10 XB Honda City Turbo WR02C RTR
By TAMIYA
$347.99 CAD    459.99
Save $112.00 (24%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
1
$347.99
Warehouse ?
Stock availability for pick up
1
$347.99
Warehouse ?
0
$347.99
Store - Charlottetown ?
1
$347.99
Store - Edmonton ?
2
$347.99
Store - Mississauga ?
1
$347.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

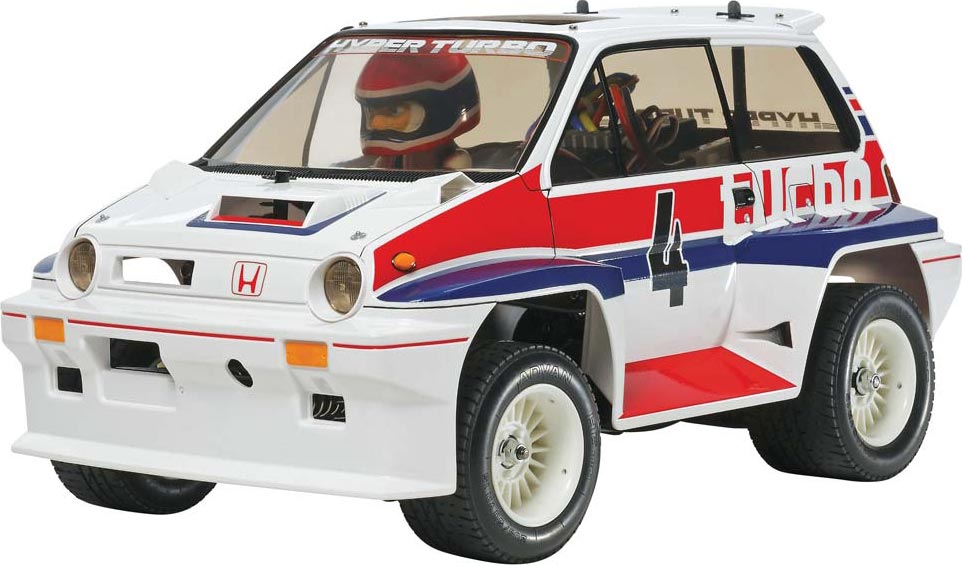

This is a factory painted and ready-to-run R/C model of the Honda City Turbo. The super detailed ABS plastic body is mated to the fun to drive and easy to maintain WR-02C chassis. It features 2WD with fully-independent, double-wishbone suspension. The pre-installed 2-channel radio system operates on 2.4GHz technology, which allows you to run your vehicle anywhere without the need to worry about other R/C enthusiasts nearby.

click image to enlarge

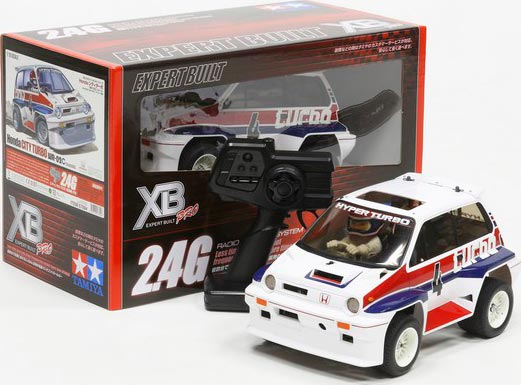

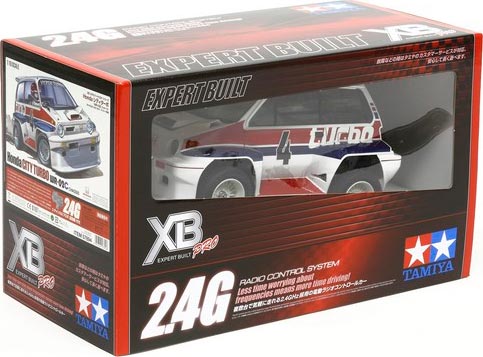

ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the Electric Powered, Radio Controlled, 1/10 scale
Ready to Run Tamiya XB Honda City Turbo Car On-Road Car.

FEATURES: Chassis: WR-02C plastic monocoque with wheelie bar
Drive: Rear wheel
Motor: 540 size brushed, mounted to preassembled and sealed bearbox
Electronic Speed Control: TEU-105BK
Radio: 2.4GHz pistol grip
Body: ABS plastic white in color, style is from 1983, helmeted driver
figure
Shocks: Friction, not oil-filled
Differential: Gear type
Suspension: Four wheel independent double wishbone
Front Bumper: Spring loaded, located under body
Tires: Treaded rubber, diameter 2.7" (69mm), rear width 1.6" (40mm),
front width 1.2" (32mm)
Wheels: White plastic
Steering: Bell-crank
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: RTR Honda City Turbo Car On-Road Car with ESC, Tires, Wheels,
Motor, Body, 20T Pinion Gear, Decals and Instruction Manual

REQUIRES: Battery: 7.2V NiMH 6-cell stick pack with standard connector
Battery Charger: Compatible with selected battery
AA Batteries: For transmitter

SPECS: Vehicle;
Wheelbase: 7.3" (185mm)
Body;
Length: 12.5" (318mm)
Width: 7.9" (200mm)
Height: 5.1" (131mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x10mm Rear Uprights 1 DTXC1535
4 5x11mm Front Uprights 2 DTXC1547
7 5x11mm Diff Gears 4 DTXC1547



jxs 05/18/16
4950344578948 4950344578948
TAMC7894
