XB Heavy Dump Truck GF-01 RTR

Product Info | Replacement Parts | Optional Items

XB Heavy Dump Truck GF-01 RTR
$347.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Monster Trucks
But only from... TAMIYA
All items from... TAMIYA

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
3mm Grub Screw 44002
Cera-Grease HG
Body Pin Set
Pinion Gear Set 18/19T
TL01 B Parts Upright
TG10 Rear Wheel Axles (2)
Heat Resist Dbl Side Tape

This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. It utilizes a 'square' setup with similar tread and wheelbase lengths. Sealed gearbox is integrated into the frame and protects from dust and debris, while the built-in front and rear differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension and friction dampers plus a 2-piece tie rod steering setup with the servo on the left for excellent response. Furthermore, it has wheels molded in yellow to match the chassis, fitted with big 115mm diameter tires, in addition to a rear support bar with roller to prevent the model from flipping.

Dump trucks earn their living in some of the toughest workplaces around: large-scale construction sites, mines and quarries to name but a few. The largest of them are known as “off-highway trucks” which cannot be driven on public roads; factory built, they are disassembled and component parts such as the chassis, cab, fenders, axles and rear bed are transported via trailer to their employer, where they are re-assembled on site. These giant vehicles can reach the height of 2-storey buildings, with tires exceeding 4 meters in diameter, engines generating over 3,500hp, and an ability to carry loads topping 300 tons. Some can even be controlled remotely for use in dangerous environments.

click image to enlarge

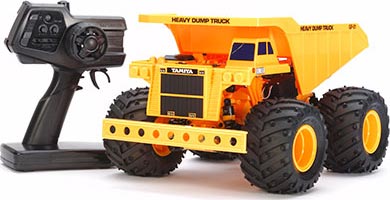

      This is the Tamiya 1/24 scale Electric Powered, Radio Controlled,
Ready to Run Heavy Duty Dump Truck.
From Tamiya's XB Pro Expert Built Series.

FEATURES: Chassis: GF-01 plastic monocoque type with rear wheelie bar
Drive: Four wheel with dogbones
Motor: 540 brushed
Radio: Finespec 2.4GHz
Electronic Speed Control: Tamiya TEU105BK
Differentials: Front and rear in sealed gearbox integrated into frame
Body: Injection molded resin, yellow in color with separate cab and
rear dump bed, dump bed can be changed between flat and raised
positions by changing position of stays and snap pins in body
mounts, bed does not raise or lower
Suspension: Fully independent double wishbone
Shocks: Plastic body friction
Steering: Bellcrank type
Tires: V-pattern and spike rubber with foam inserts
Wheels: Yellow plastic deep rim design 2.7" (68.3mm) wide, 4.7"
(119mm) diameter
Bumper: Front spring loaded
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the

INCLUDES: RTR Heavy Duty Dump Truck with ESC, Motor, Molded Resin Body
Tires, Wheels, Shocks, 2.4GHz Radio and
Instruction Manual

REQUIRES: Battery: 7.2V NiMH 6-cell stick pack with standard connector
Battery Charger: Compatible with selected battery
AA Batteries: Four for transmitter

SPECS: Vehicle;
Length: 13.8" (350mm)
Width: 10.6" (270mm)
Height: 8.3" (210mm)
Length: 12.5" (317mm)
Width: 6.5" (165mm)
Height: 4.4" (112mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Differential 1 DTXC1547
8 5x11mm Counter Gears 4 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
4 5x11mm Rear Uprights 2 DTXC1547
2 5x8mm Steering Linkage 1 DTXC1523

jxs 04/28/16
