1/10 XB Volkswagen Scirocco TT01Ed Drift Spec RTR

Product Info
TAMIYA

TAM57883
1/10 XB Volkswagen Scirocco TT01Ed Drift Spec RTR
By TAMIYA
$419.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road Drift Car
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$419.99
Warehouse ?
StockStock availability for pick up
0
$419.99
Warehouse ?
0
$419.99
Store - Charlottetown ?
0
$419.99
Store - Edmonton ?
0
$419.99
Store - Mississauga ?
0
$419.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

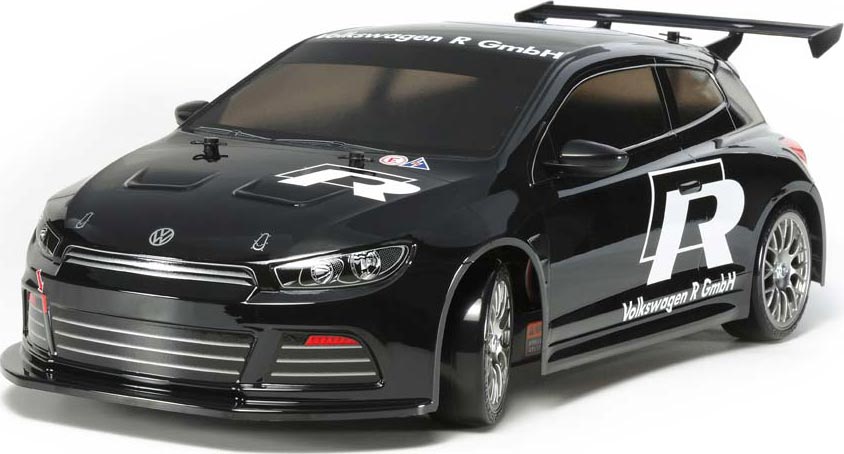

                   This is the electric powered 1/10 scale,
Ready to Run Tamiya Volkswagen Scirocco Drift Spec Car.
From Tamiya's XB Pro Expert Built Series.

FEATURES: Chassis: TT-01D type E with shock tower now molded separately from
the gear case covers and new upper deck with transponder mount
new A parts (Uprights) made of polycarbonate plastic material
new D parts (upper deck, motor cover and more) made of fiberglass-
reinforced nylon material
Drive: Four wheel shaft drive
Radio: Tamiya Finespec 2.4GHz
Electronic Speed Control: TEU-105BK with reverse
Motor: 540 motor with pre-attached leads and blue aluminum heat sink
Ball Bearings: Shielded
Shocks: Oil-filled, plastic body CVA Super Mini
Gearbox: Sealed, front and rear
Differentials: Bevel gear, ball bearing equipped
Transmission: Single speed
Body: Polycarbonate, painted and trimmed with separate mirrors and
head and tail light detail (lights are non-functional)
Tires: Super Driftech drift spec resin 1" (26mm) wide, 2.5" (63mm)
diameter
Wheels: Silver lace pattern 2.0" (52mm) outer diameter, 0.94" (24mm)
wide +2 offset,
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Adjustable, front and rear camber refers to the angle of
the tops of the tires from vertical when viewed from front or
behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver

INCLUDES: RTR Tamiya Volkswagen Scirroco Car, 540 motor, ESC, painted body,
tires, foam bumper, lace wheels, 19 tooth pinion gear, 61 tooth
spur gear, 2.4GHz radio and instructions

REQUIRES: Radio Batteries: 8 AA size (for transmitter)
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 17.4" (443mm)
Width: 7.4" (188mm)
Height: 5.2" (133mm)
Weight: Approx. 3.1lbs (1400g)
Wheelbase: 10" (254mm)

BODY-
Length: 17.4" (443mm)
Width: 7.4" (188mm)
Height: 4.4" (112mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty Bearing Set
12 5 x11mm front & rear diff gears, hubs 6 DTXC1547
4 8 X12mm front & rear diff gears 2 DTXC1597
