TAM57874

1/10 XB RC RTR Porsche 911 Carrera RSR White (TT01

Product Info | Required Items
TAMIYA

TAM57874
1/10 XB RC RTR Porsche 911 Carrera RSR White (TT01
By TAMIYA
$393.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$393.99
Warehouse ?
StockStock availability for pick up
0
$393.99
Warehouse ?
0
$393.99
Store - Charlottetown ?
0
$393.99
Store - Edmonton ?
0
$393.99
Store - Mississauga ?
0
$393.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

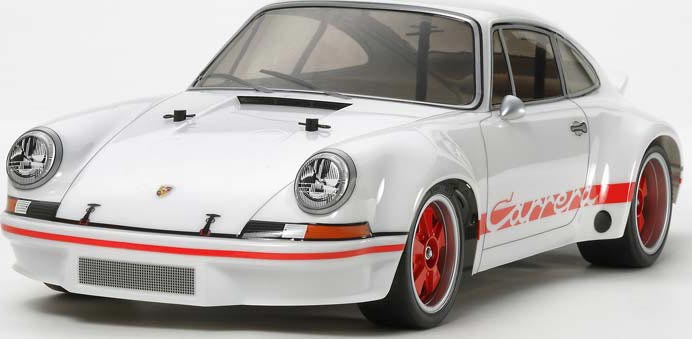

           This is the radio controlled, electric powered 1/10 scale,
Ready to Run Porsche 911 Carrera RSR "White Version" On-Road Car.

FEATURES: Chassis: TT-01 type E composite chassis-compatible with a variety of
Tamiya Option Parts
Drive: Four wheel shaft drive
Radio: 2.4GHz Tamiya Finespec 2-channel pistol grip
Electronic Speed Control: Tamiya TEU-105BK with reverse
Motor: 540 motor with pre-attached leads
Ball Bearings: Installed in differentials, bushings in wheel hubs
Shocks: Friction, plastic body
Gearbox: Sealed, front and rear
Differentials: Bevel gear, bushing equipped
Transmission: Single speed
Body: Painted and trimmed with decals and driver's side mirror
Tires: Slick rubber front, 1.0" (26mm) wide, 2.6" (65.5mm) diameter
1.2" (32mm) wide, 2.6" (65.5mm) diameter
Wheels: Red in color 2.0" (52mm) outer diameter,
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Porsche 911 Carrera, 540 motor, ESC, painted body, tires, foam
bumper, 19 tooth pinion gear, 61 tooth spur gear, wheels,
2.4GHz radio, and instruction manual

REQUIRES: Radio Batteries: 4 AA size (for transmitter)
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 15.7" (400mm)
Width: 7.2" (183mm)
Height: 5.5" (140mm)
Wheelbase: 10.1" (257mm)
BODY-
Length: 18" (457mm)
Width: 7.4" (188mm)
Height: 4.2" (107mm)

COMMENTS: For replacement, or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Front Hubs 1 DTXC1547
2 5x11mm Rear Hubs 1 DTXC1547
2 8x12mm Front Diff 1 DTXC1581
2 8x12mm Rear Diff 1 DTXC1581
2 5x11mm Fr Driveshaft Joint 1 DTXC1547
2 5x11mm Rear Driveshaft Joint 1 DTXC1547

jxs 02/06/14
ir/jxs
4950344578740 4950344578740
TAMC7874
