TAM57869

1/10 XB RTR Laferrari TT02

RESOURCES

Items Required to Complete (3)
Replacement Parts (1)
Optional Items (6)
TAMIYA

TAM57869
1/10 XB RTR Laferrari TT02
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$148.00
Warehouse ?
Stock availability for pick up
0
$148.00
Warehouse ?
0
$148.00
Store - Charlottetown ?
0
$148.00
Store - Edmonton ?
0
$148.00
Store - Mississauga ?
0
$148.00
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
4WD
Drivetrain:
Tamiya Finespec 2.4GHz
Radio Included:
Yes
Receiver Included:
Yes
Servo Included:
540 type
Brushed Motor Included:
TEU-105BK
ESC Included:

FEATURES

The LaFerrari is the latest hi-tech super car from the world-famous Ferrari sport car automaker. It was announced by the Italian company in March 2013 and features active aerodynamics, whereby spoilers and other parts automatically adjust to provide optimal down-force, based on performance data collated internally by the car. The HY-KERS hybrid system makes use of Formula One technology, its 6,262cc V12 engine and an electric motor combining to give 963hp. Unlike your typical hybrid passenger car, the LaFerrari is considered a "mild-hybrid" car. Mild hybrids are essentially conventional vehicles with some degree of hybrid hardware, but with limited hybrid feature utilization. Only 499 of the limited edition vehicle will be produced, so it may prove to be a hard car to purchase on a whim. Prospective owners do have an alternative. The next best thing is to acquire the Tamiya R/C high performance car model!

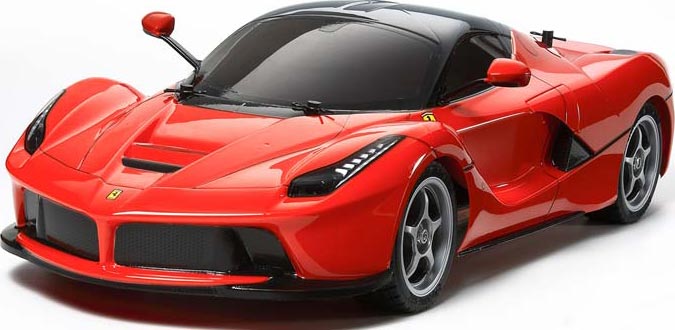

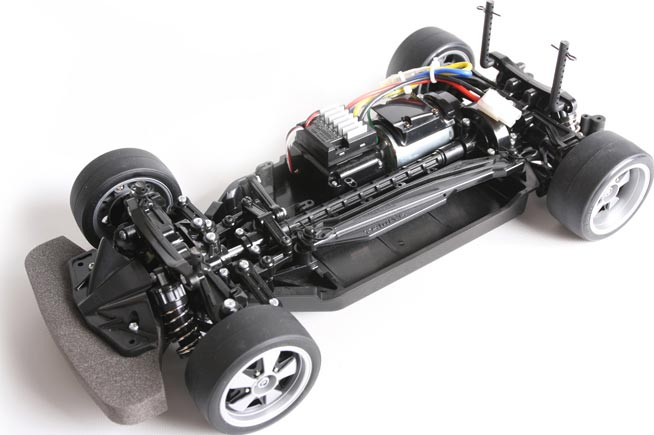

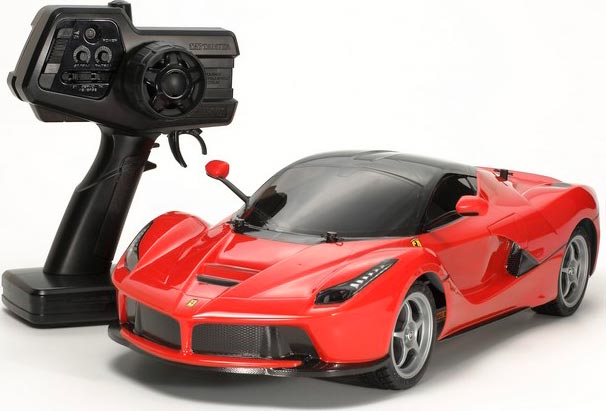

This is a fully factory assembled and ready-to-run R/C model of the LaFerrari. The painted and finished super detailed polycarbonate body is mated to the easy to maintain TT-02 4WD on-road chassis platform. The TT-02 chassis features a 4WD drive drive-train with fully independent double wishbone suspension. The pre-installed 2-channel radio gear system operates on 2.4Ghz technology which allows you to run your vehicle anywhere without the need to worry about other R/C enthusiasts nearby.

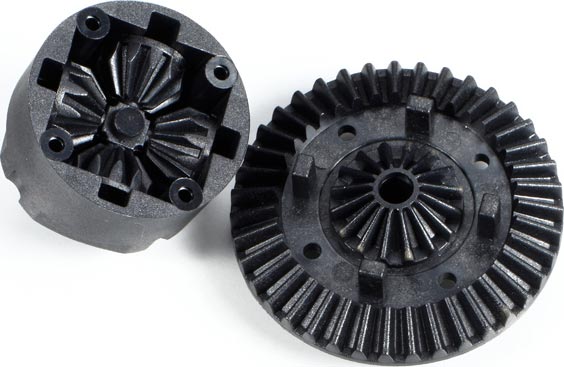

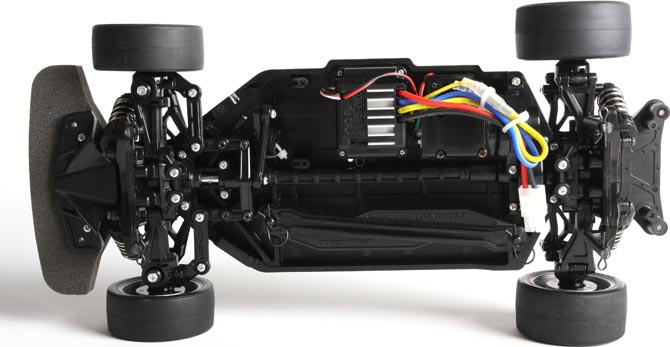

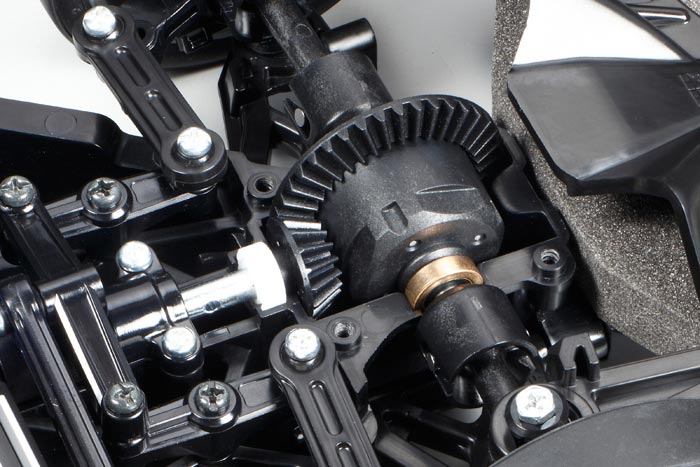

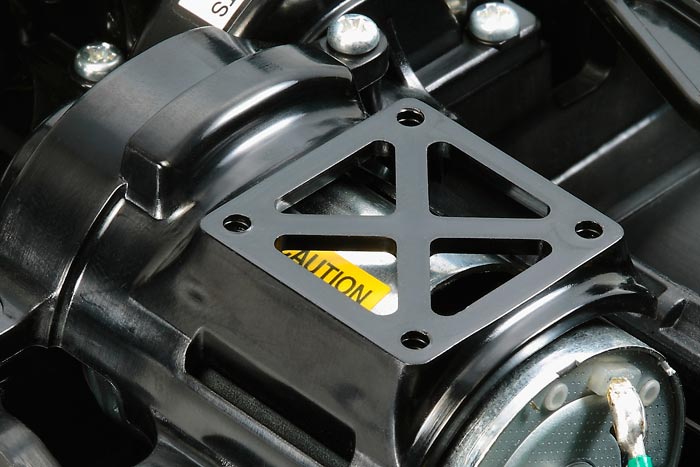

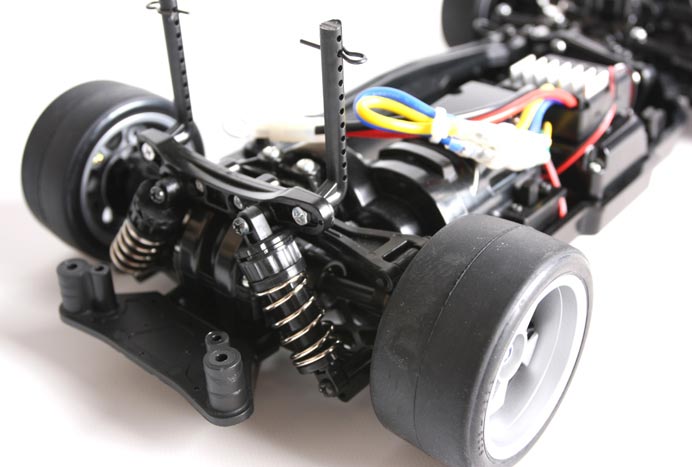

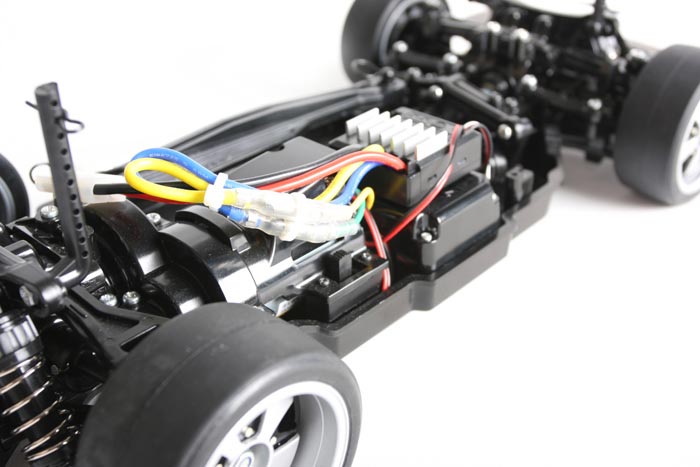

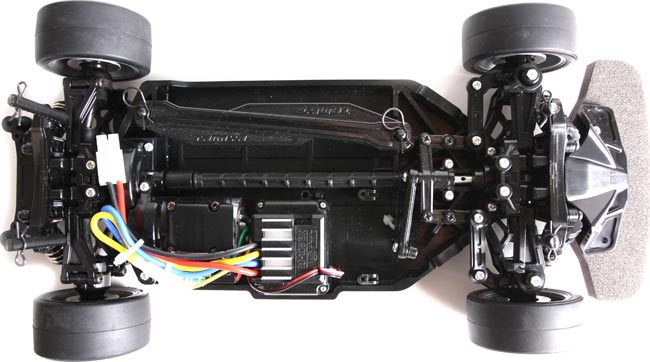

The TT-02 is the new standard in Tamiya’s entry level cars. The chassis has the battery pack and motor placed longitudinally on the left and right sides of the chassis respectively. The skid-shaped lower deck enables a greater roll movement range during cornering, and the 4-wheel double wishbone suspension is equipped with identical left/right suspension arms and uprights, making maintenance and assembly a simple task. The drivetrain features a motor mount which allows up to 10 different gear ratios as well as front and rear enclosed gearboxes equipped with resin 4-pinion differentials. In addition, 2-types of ground clearance and wheelbase length are possible by altering parts position, making it a flexible machine too.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the Radio Controlled, Electric Powered, 1/10 scale,
Ready to Run LaFerrari On-Road Car from Tamiya.

FEATURES: Chassis: Plastic, TT-02
Drive: Four wheel drive, dogbone
Motor: Torque-Tuned 540 size brushed
Radio: Tamiya Finespec 2.4GHz FHSS 2-channel

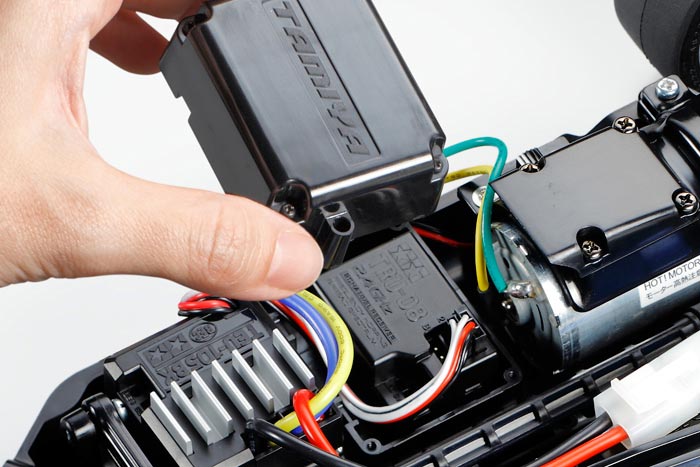

ESC: TEU-105BK with reverse
Differential: Gear type

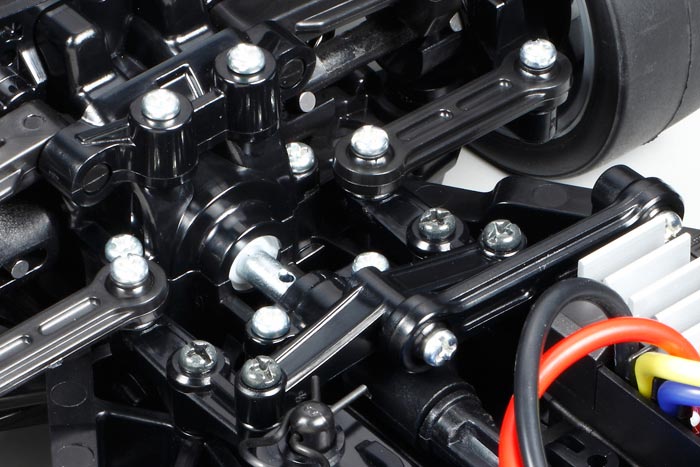

Suspension: Fully independent double wishbone
Shocks: Plastic body, friction (not oil filled)
Wheels: Five spoke plastic, gray in color
Tires: Treaded rubber 2.6" (67mm) diameter, 1" (26mm) wide
Steering: Bellcrank type
Body: Polycarbonate, with separate light cases (LED lights not
included) mirrors, and rear wing
Bumper: Front foam
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-Adjustable, caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis

INCLUDES: TT-02 Factory Finished On-Road Chassis with Brushed Motor, ESC, Body,
Decals, and Instruction Manual

REQUIRES: AA Batteries: Four for transmitter
Battery: 7.2V stick pack with standard connector
Battery Charger: For selected batery pack
Track and maintenance equipment

SPECS: Vehicle-
Specs such as length and height not provided by manufacturer
Wheelbase: 10" (251mm)
Body-
Length: 18.1" (460mm)
Width: 7.3" (185mm)
Height: 3.5" (89mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Drive Shaft 1 DTXC1547
4 8x12mm Differential 2 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535
