TAM57868

1/10 XB GoPro Monster SS RTR

RESOURCES

Items Required to Complete (3)
Replacement Parts (14)
Optional Items (12)
TAMIYA

TAM57868
1/10 XB GoPro Monster SS RTR
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$358.99
Warehouse ?
Stock availability for pick up
0
$358.99
Warehouse ?
0
$358.99
Store - Charlottetown ?
0
$358.99
Store - Edmonton ?
0
$358.99
Store - Mississauga ?
0
$358.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

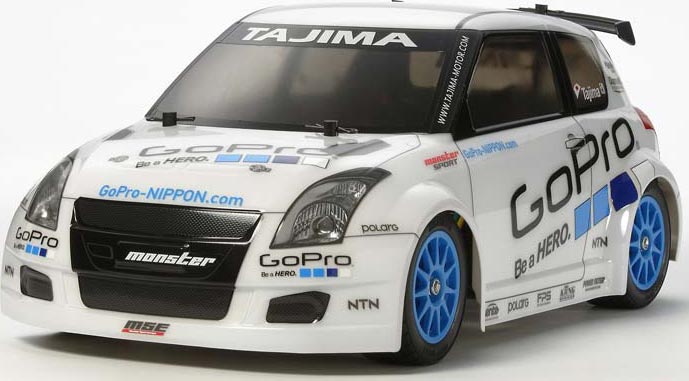

          This is the 1/10 scale, Radio Controlled, Electric Powered
RTR Tamiya XB GoPro Monster Sport Super Swift Car.

FEATURES: Chassis: M5 resin semi-monocoque design, composite construction with
extensions to build a short, medium or long wheelbase chassis
Drive: Two wheel, front wheel drive
Radio: Tamiya Finespec 2.4GHz
Motor: 540 size, front mounted
ESC: Tamiya TEU-105BK with reverse
Body: Polycarbonate construction, painted and trimmed
Differentials: Bevel Gear
Tires: Rubber, radial tread 0.98" (24.8mm) wide, 2.3" (59mm)
diameter
Wheels: Plastic, blue in color 11 spoke 0.94" (24mm) wide, 1.6"
(40.5mm) diameter
Shocks: Friction, plastic body
Steering: Three-piece linkage
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, front only, caster/toe-in refers to the angle
of the suspension when viewed from the side of the car in relation
to the chassis

INCLUDES: Tamiya XB GoPro Monster Sport Car, 2.4GHz Radio, 540 Motor, ESC,
Painted Body, Instruction Manual

REQUIRES: Battery: 7.2V 6-cell stick pack
Battery Charger: For selected battery
AA Batteries: Eight for transmitter
Track and maintenance equipment

SPECS: Vehicle:
Length: 12" (305mm)
Width: 6.6" (169mm)
Height: 5.4" (137mm)
Wheelbase: Adjustable 8.3, 8.8, 9.4" (210, 225, 239mm)
Body:
Length: 13.7" (349mm)
Width: 7" (178mm) at wheel arches, widest point
Height: 4.7" (119mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 5x11mm Front Hubs 2 DTXC1547
4 5x11mm Rear Hubs 2 DTXC1547
4 5x11mm Diff 2 DTXC1547
4 5x8mm Steering 2 DTXC1523

jxs 09/04/13
ir/jxs
4950344578689 4950344578689
TAMC5787
