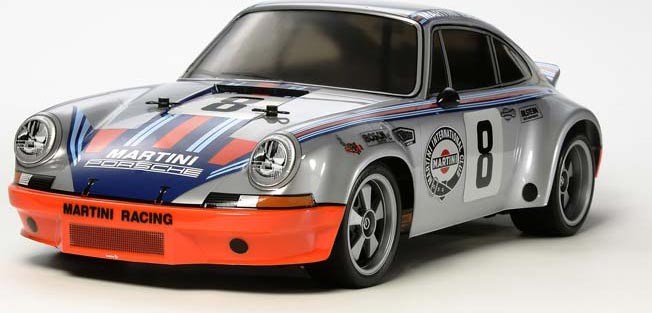

         This is the Radio Controlled, Electric Powered, 1/10 scale,
Ready to Run Porsche Carrera RSR On-Road Car from Tamiya.

FEATURES: Chassis: Plastic, TT-02 bathtub type
Drive: Four wheel drive, dogbone
Motor: Torque-Tuned 540 size brushed
Radio: Tamiya Finespec 2.4GHz
ESC: TEU-105BK with reverse
Differential: Gear type
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction (not oil filled)
Tires: Slick rubber 2.5" (65mm) diameter, front width 1" (25.4mm)
rear width 1.2" (32mm)
Wheels: Five spoke plastic, gray in color
Steering: Bellcrank type
Body: Polycarbonate, with all body trim and rear wing
Spur Gear: 70 tooth plastic
Pinion Gear: 22 tooth metal
Bumper: Front foam
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable front only, caster/toe-in refers to the angle
of the front suspension when viewed from the side of the car in
relation to the chassis

INCLUDES: TT-02 Factory Finished On-Road Chassis with Brushed Motor, ESC, Body,
Decals, 2.4GHz Radio, and Instruction Manual

REQUIRES: Battery: 7.2V stick pack with standard connector
Battery Charger: For selected batery pack
Track and maintenance equipment

SPECS: Vehicle-
Specs such as length and height not provided by manufacturer
Wheelbase: 10" (251mm)
Length: 17.9" (454mm)
Width: 7" (176mm) behind front wheels, narrowest point
8" (203mm) at rear wheels, widest point
Height: 4.5" (114mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Drive Shaft 1 DTXC1547
4 8x12mm Differential 2 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535

jxs 10/02/13
updated tlc 9/22/16
4950344578665 4950344578665
