TAM57853

1/10 RTR Farm King Wheelie WR02G

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM57853
1/10 RTR Farm King Wheelie WR02G
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Monster Trucks
But only from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$377.99
Warehouse ?
StockStock availability for pick up
0
$377.99
Warehouse ?
0
$377.99
Store - Charlottetown ?
0
$377.99
Store - Edmonton ?
0
$377.99
Store - Mississauga ?
0
$377.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

Body Pin Set
$4.99

Pinion Gear Set 18/19T
$9.99

TL01 B Parts Upright
$11.99

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

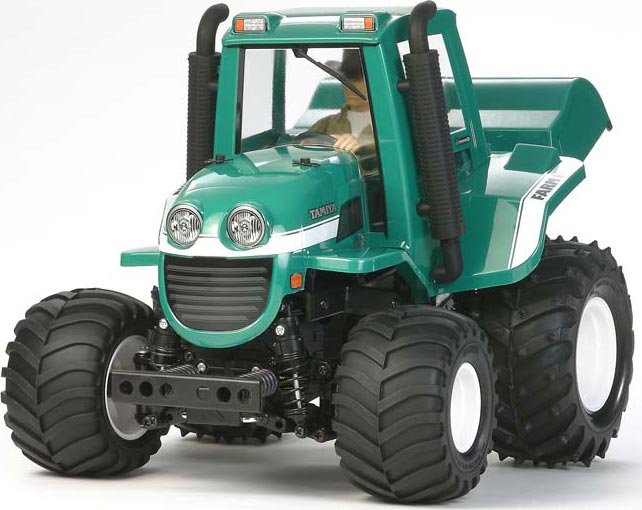

          This is the 1/10 scale, radio controlled, electric powered,
ready to run Tamiya Farm King Wheelie.
For ages 14 and above
From Tamiya's XB Pro Expert Built Series

FEATURES: Chassis: WR-02G monocoque with wheelie bar
Drive: Rear wheel
Radio System: Tamiya Finespec 2.4GHz pistol grip with steering and
throttle trim and reverse and steering servo
Electronic Speed Control: Tamiya TEU-105BK with reverse (TAMC5055)
Motor: 540 brushed, preinstalled to assembled gearbox
Suspension: Four wheel double wishbone
Differential: Bevel gear
Body; Painted polycarbonate
Driver Figure: Painted plastic
Shocks: Coil over plastic body friction, not oil-filled
Wheels: One-piece white plastic, 12mm hex
Tires: Front, outer diameter 3.8" (97mm), 2.1" (54mm) wide
Rear spike, outer diameter 5.1" (130mm), 2.2" (56mm) wide
Steering: Direct servo with tie rods
Front Bumper: Spring type to absorb minor impacts
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Adjustable, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis

INCLUDES: RTR Tamiya Farm King Wheelie with brushed motor, ESC, painted body,
18T pinion gear, tires, wheels, shocks, decal sheet, 2.4GHz radio
and instruction manual

REQUIRES: Radio: 2-channel with high torque steering servo
Battery: 7.2V stick pack with standard connector
Battery Charger: To match selected battery
AA batteries, paint, building and track equipment

SPECS: Vehicle-
Length: 14.3" (363mm)
Width: 9.9" (253mm)
Height: 9.6" (245mm)
Body-
Length: 14.1" (359mm)
Width: 9.4" (240mm) at widest point
Height: 8.5" (216mm) measured at cab enclosure

COMMENTS: To Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Rear Uprights 1 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
8 5x11mm Front Uprights 4 DTXC1547

jxs 04/24/13
ir/jxs
4950344578535 4950344578535
TAMC5753
