TAM57851

1/10 Spec RTR

RESOURCES

Items Required to Complete (3)
Replacement Parts (13)
Optional Items (20)
TAMIYA

TAM57851
1/10 Spec RTR
By TAMIYA
$358.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$358.99
Warehouse ?
Stock availability for pick up
0
$358.99
Warehouse ?
0
$358.99
Store - Charlottetown ?
0
$358.99
Store - Edmonton ?
0
$358.99
Store - Mississauga ?
0
$358.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

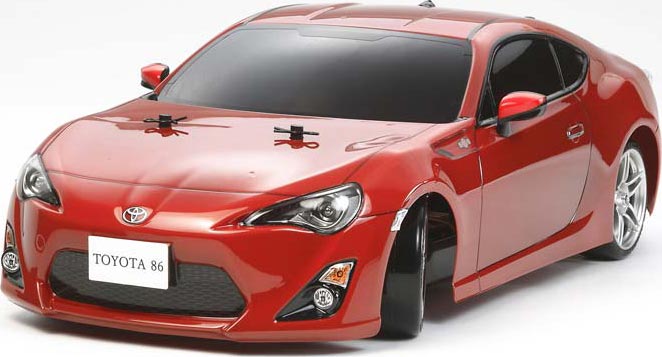

.           This is the electric powered 1/10 scale, ready to run
Tamiya Toyota GT 86 On-Road Drift Spec Car.
Part of the XB Pro Series.

FEATURES: Chassis: TT-01D type E with shock tower now molded separately from
the gear case covers and new upper deck with transponder mount
new A parts (Uprights) made of polycarbonate plastic material
new D parts (upper deck, motor cover and more) made of fiberglass-
reinforced nylon material
Drive: Four wheel shaft drive
Electronic Speed Control: TEU-104BK with reverse
Radio: Tamiya Finespec 2-channel 2.4GHz
Motor: 540 motor with pre-attached leads and aluminum heat sink
Ball Bearings: Installed in differentials, bushings in wheel hubs
Shocks: Friction, plastic body CVA Super Mini
Gearbox: Sealed, front and rear
Differentials: Bevel gear, ball bearing equipped
Transmission: Single speed
Body: Polycarbonate, painted and trimmed with mirrors and light and
body trim decals
Tires: Super Driftech drift spec resin 0.94" (24mm) wide, 2" (51mm)
diameter
Wheels: 5-spoke gun metel gray 2.0" (52mm) outer diameter, 0.94"
(24mm) wide +2 offset
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver

INCLUDES: RTR Tamiya Toyota GT 86 On-Road Drift Spec Car, 540 motor, radio,
ESC, body, tires, foam bumper, spoke wheels, 19 tooth pinion gear,
61 tooth spur gear, decals and instructions

REQUIRES: Radio Batteries: 4 AA size (for transmitter)
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 17.4" (444mm)
Width: 7.4" (187mm)
Height: 5.2" (132mm)
Weight: Approx. 3.1lbs (1400g)
Wheelbase: 10.1" (257mm)

BODY-
Length: 16.8" (428mm)
Width: 7.3" (185mm)
Height: 4.2" (107mm)


COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
12 5 x11mm front & rear diff gears, hubs 6 DTXC1547
4 8 X12mm front & rear diff gears 2 DTXC1597

Body shown on box is painted red

jxs 10/28/13
ir/jxs
4950344578511 4950344578511
TAMC5751
