TAM57843

1/10 XB Unimog 406 Series U900 CC01 Orange RTR

TAMIYA

TAM57843
1/10 XB Unimog 406 Series U900 CC01 Orange RTR
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Scale Trail Truck & Crawler
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$496.99
Warehouse ?
StockStock availability for pick up
0
$496.99
Warehouse ?
0
$496.99
Store - Charlottetown ?
0
$496.99
Store - Edmonton ?
0
$496.99
Store - Mississauga ?
0
$496.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

Body Pin Set
$4.99

Pinion Gear Set 16/17T
$9.99

Diff Bevel Gear Set 49/84
$7.99
RC Body Set Toyota FJ Cruiser
$78.99

Led Light Unit Kit TLU-01
$77.99

White Led Light (2) TLU-01
$21.99

Damper O-Ring 44002
$3.99




click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

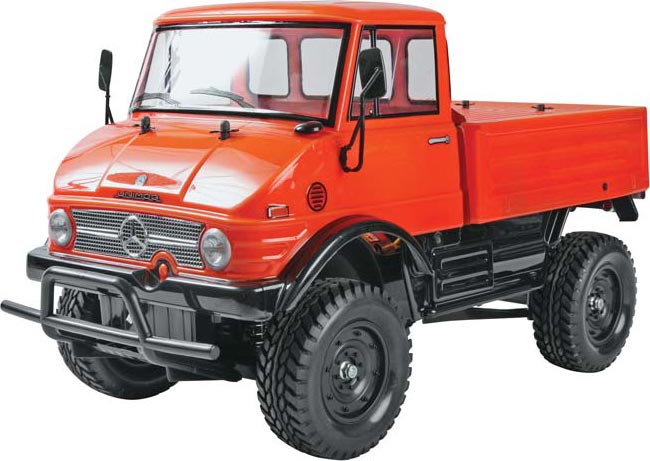

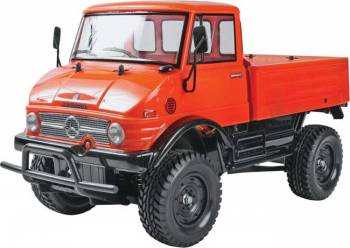

      This is the Electric Powered, 2.4GHz Radio Controlled, 1/10 scale
RTR Tamiya Unimog 406 Series U900 CC-01 Orange Version Off Road Vehicle.
From Tamiya's XB Pro Expert Built Series.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel
Motor: Johnson/Mabuchi 540-J size, brushed
Radio: Tamiya Finespec 2.4GHz
Pinion Gear: 16 tooth metal
Electronic Speed Control: Tamiya TEU-105BK with reverse
Body: Polycarbonate
Lights: LED head and tail lights
Gearbox: Enclosed
Differential: Bevel gear type
Suspension: Independent front/solid axle rear
Wheels: One piece plastic, black in color
Tires: Treaded rubber, off-road
Caster: Adjustable front, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Camber: Non-adjustable, camber refers to the angle of the tops of
the tires from vertical when viewed from front or behind vehicle

INCLUDES: RTR Tamiya Unimog 406 Series U900 Off-Road Vehicle with 2.4GHz Radio
ESC, 540 Brushed Motor, LED Head and Tail Lights, Tires, Wheels,
and Instructions

REQUIRES: AA Batteries: Four for transmitter
Battery: 7.2V 6-cell stick pack with standard connector
Battery Charger: Peak type recommended
Tools and track equipment

SPECS: Vehicle:
Length: 15.7" (398mm)
Width: 7.75" (197mm)
Height: 8.2" (209mm)
Body:
Length: 15.1" (385mm)
Width: 6.8" (174mm)
Height: 6.4" (164mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547

jxs 11/06/12
ir/jxs
4950344578436 4950344578436
TAMC7843
