FEATURES
  • Polycarbonate body finished in Red
  • Long-stroke suspension system consists of front double wishbone and rear 4-link rigid setup and is equipped with 4 oil dampers
  • Highly reliable and efficient full-time 4WD system features a front-mounted motor, which transmits power to the front wheels via the gearbox and to the rear wheels via the propeller shaft with universal joints.
  • Tamiya Finespec FM R/C system pre-installed
  • Front and rear 3-bevel differentials enable smooth cornering.
  • F/R light cases are equipped with LEDs to depict realistic head (white) and tail (red) lights.

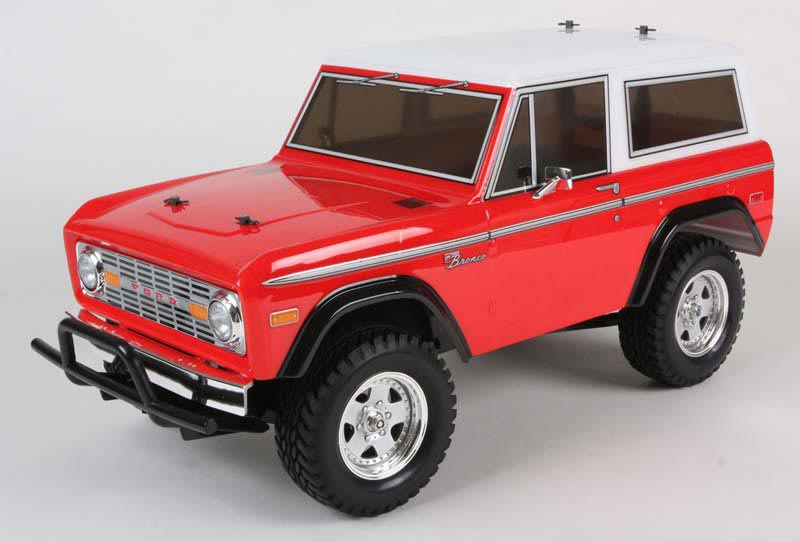

This is a 1/10 scale ready-to-run XB (Expert Built) model of the 1973 Ford Bronco, which is known to many enthusiasts as the "Early Bronco". The subject of this R/C vehicle is the wagon body style with a white rear cover. The distinctive body style, including raised hood sides, has been realistically reproduced with polycarbonate vacuum formed material. The Ford Bronco comes on the shaft-driven 4WD CC-01 chassis which offers fun off-road driving performance.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
        This is the 1/10 scale electric powered, radio controlled, 4WD, RTR,
1973 Ford Bronco Off-Road Truck from Tamiya.

FEATURES: Chassis: CC-01, plastic tub construction
Drive: Four wheel drive, shaft driven
Motor: 540 electric motor
Radio: Tamiya 27MHz FM 2-channel with steering servo
Electronic Speed Control: TEU-104BK with reverse
Lights: Tamiya TLU-01 (TAMC1394) LED light unit with four LED lights,
see COMMENTS
Shocks: Oil-filled, black plastic construction
Body: Molded polycarbonate, painted and trimmed
Gearbox: Front and rear sealed gearbox
Differentials: Bevel gear
Transmission: Single speed
Tires: Semi-pneumatic all-terrain, rubber construction 1.2" (32mm)
wide, 3.5" (90mm) diameter
Wheels: 2" (51mm) diameter, 1.1" (28mm) wide chrome plated plastic
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: Tamiya RTR 1973 Ford Bronco oil-filled shocks, 540 motor, ESC,
painted body, tires, wheels, LED light kit, shock oil, 16 tooth
pinion gear, spur gear, instructions

REQUIRES: Eight AA batteries for transmitter
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 16.8" (426mm)
Width: 7.7" (195mm)
Height: 8.5" (215mm)
Weight: 53.3oz (1510g)
Wheelbase: 9.9" (252mm)
BODY-
Length: 15.5" (394mm)
Width: 7.2" (184mm) at fender flares
Height: 5.7" (145mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547
