1/10 XB Mercedes-Benz Unimog 406 Series U900 RT

Product Info | Replacement Parts | Optional Items

1/10 XB Mercedes-Benz Unimog 406 Series U900 RT
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Scale Trail Truck & Crawler
But only from... TAMIYA
All items from... TAMIYA

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
Pinion Gear Set 20/21T
Body Pin Set
Heat Resist Dbl Side Tape
Diff Bevel Gear Set 49/84
Pinion Gear Set 16/17T
RC Body Set Toyota FJ Cruiser
1150 Sealed Ball Bearing Set (2)
  • Polycarbonate Finished body.

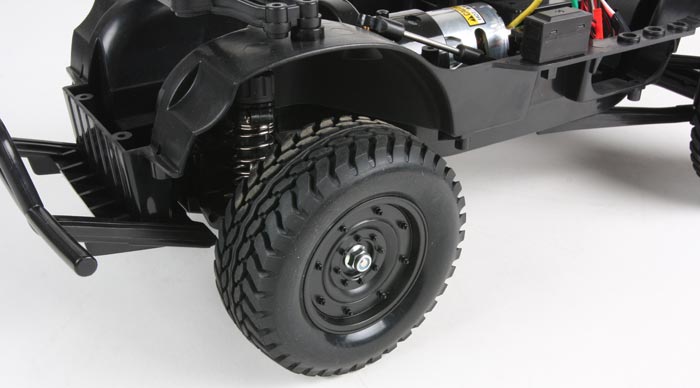

  • Long-stroke suspension system consists of front double wishbone and rear 4-link rigid setup and is equipped with 4 oil dampers
  • Highly reliable and efficient full-time 4WD system features a front-mounted motor, which transmits power to the front wheels via the gearbox and to the rear wheels via the propeller shaft with universal joints.
  • Tamiya Finespec FM R/C system pre-installed
  • Front and rear 3-bevel differentials enable smooth cornering.
  • F/R light cases are equipped with LEDs to depict realistic head (white) and tail (red) lights.
  • Side mirrors, front and rear light cases are precisely reproduced in ABS plastic

The multi-purpose Mercedes-Benz Unimog is a truck with unrivalled off-road performance and its name is an acronym which stands for the German description "UNIversal-MOtor-Gerat." The 406 which also has the ability to equip any of approximately 3000 attachments for every imaginable task, available as an Expert Model on the proven CC-01 chassis.

click image to enlarge

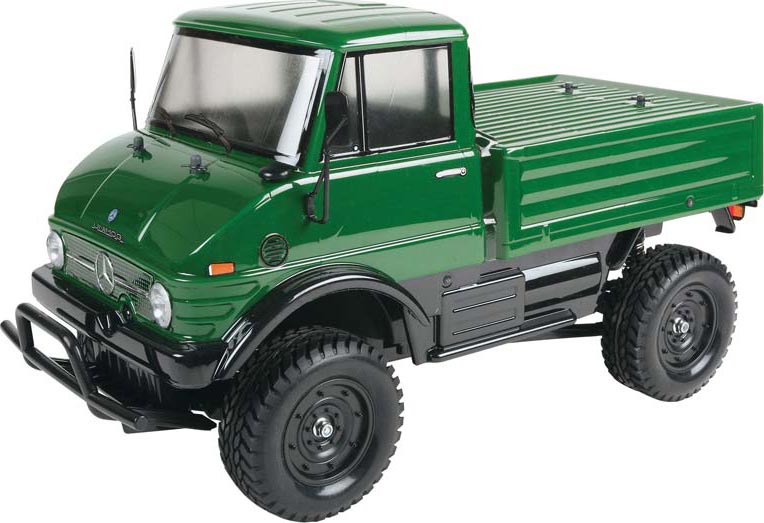

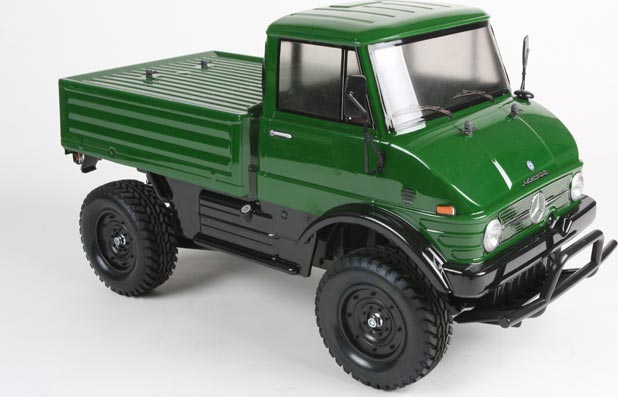

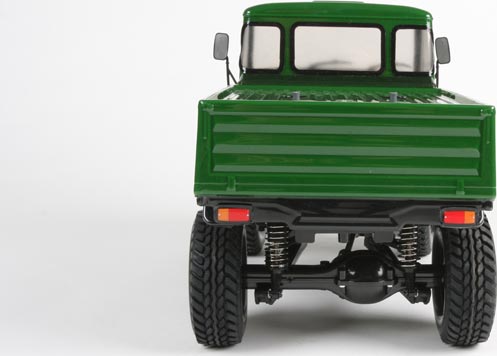

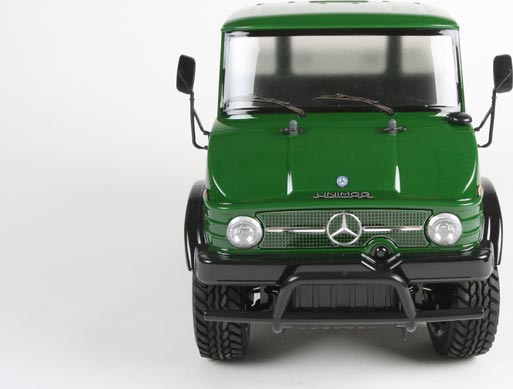

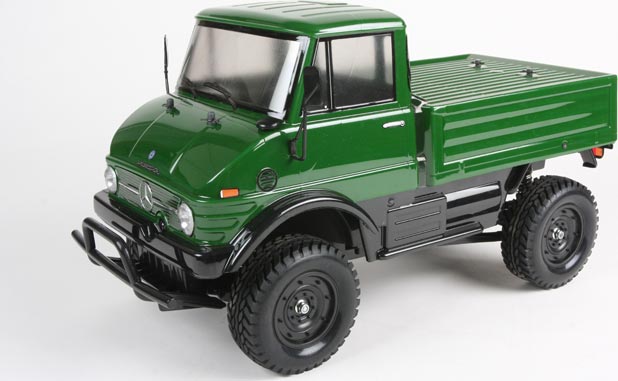

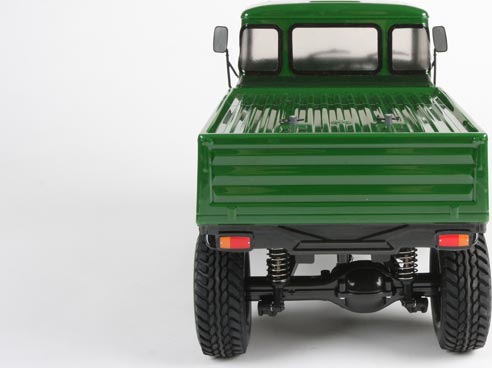

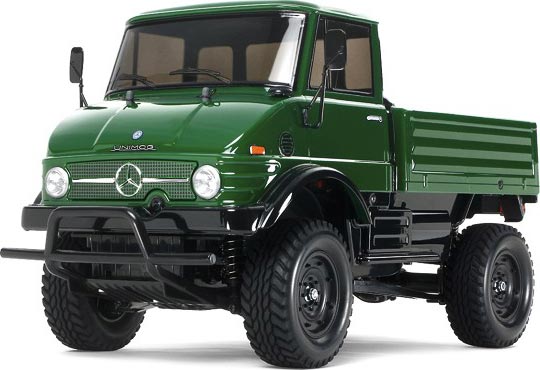

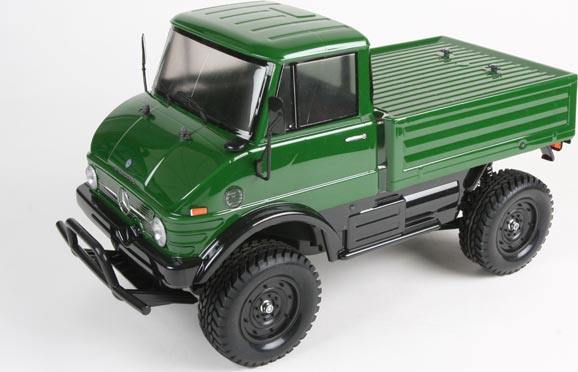

   This is the electric powered, radio controlled 1/10 scale, ready to run
Mercedes-Benz Unimog 406 Truck from Tamiya.
From Tamiya's XB Pro Expert Built Series.

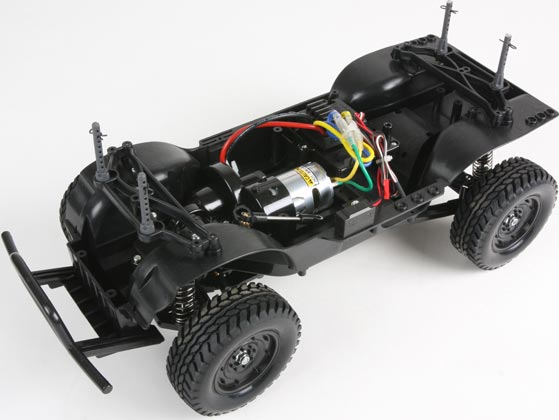

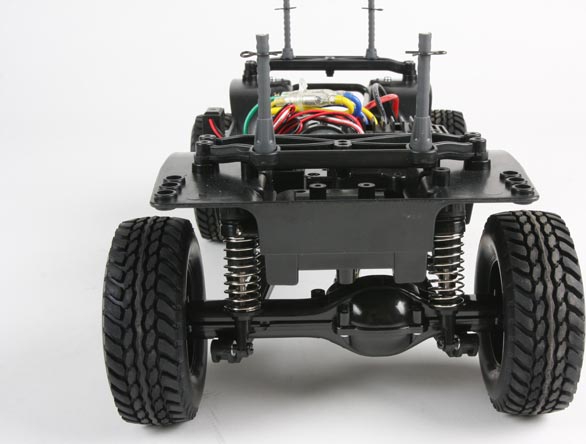

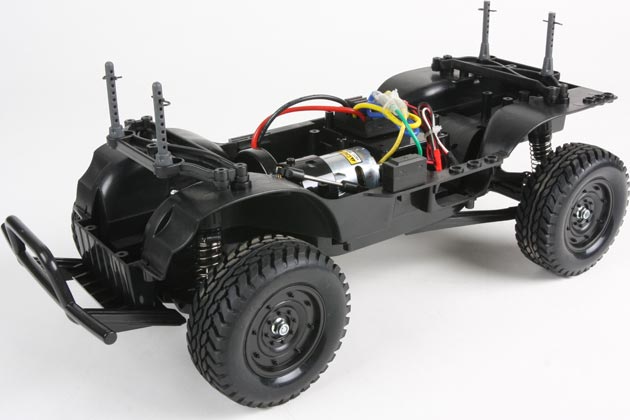

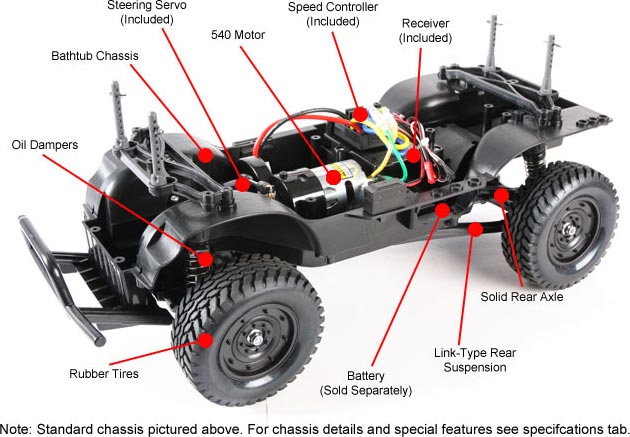

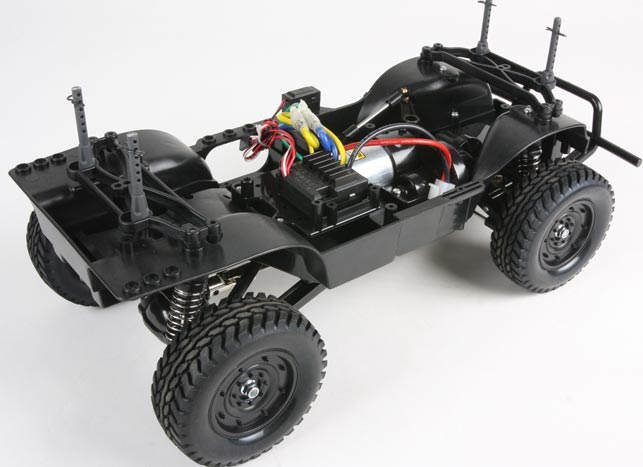

FEATURES: Chassis: CC-01 plastic tub construction
Drive: Four wheel shaft
Gearbox: Front and rear sealed gearboxes
Motor: 540 size
Electronic Speed Control: TEU-104BK with reverse
Lights: Tamiya TLU-01 (TAMC1394) LED light unit with four LED lights,
Tires: Semi-pneumatic all-terrain, rubber construction
Wheels: One-piece, black ABS resin wheels
Body: Mercedes-Benz Unimog 406 Truck, body color may vary from photo
Pinion Gear: 16 tooth metal
Differentials: Planetary gear, rear diff can be locked for better
performance on rough terrain
Radio: Tamiya Finespec FM 2-channel 27MHz pistol grip
Shocks: Four plastic body, oil-filled
Bumper: Front, plastic construction, black in color
Suspension: Front, long stroke double wishbone
Rear, four link rigid
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
Steering: Bell-crank type with servo saver and adjustable linkage

INCLUDES: RTR Mercedes-Benz Unimog 406 with Motor, Radio, ESC, Painted Body
Light Kit and Instructions

REQUIRES: AA Batteries: Eight for transmitter
Battery: 6-cell stick pack w/ standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: Vehicle-
Length: 16" (407mm)
Width: 8.7" (220mm)
Height: 9" (229mm)
Wheelbase: 9.5" (242mm)
Length: 14.4" (365mm)
Width: 6.8" (173mm)
Height: 5.5" (140mm)

COMMENTS: The TLU-02 Light Control Unit (not included) can be installed for
more light effects, order TAMC1477.

For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
2 5x11mm Fr Diff 1 DTXC1547
2 6x12mm Fr Diff 1 DTXC1569
1 5x11mm Drive Gear 1 DTXC1547
1 5x8mm Drive Gear 1 DTXC1523
4 10x15mm Front Hubs 2 DTXC1595
4 5x11mm Rear Axle Shafts 2 DTXC1547
1 5x11mm Rear Prop Joint 1 DTXC1547
1 5x8mm Rear Prop Joint 1 DTXC1547
