TAM57786

1/10 XB TT-01E Subaru Impreza

Product Info | Optional Items
TAMIYA

TAM57786

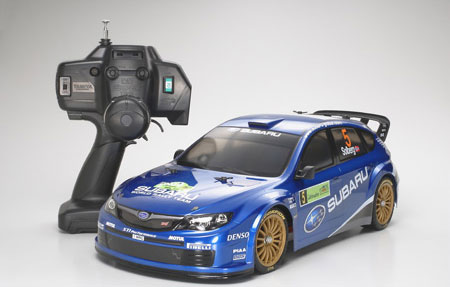

1/10 XB TT-01E Subaru Impreza
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road
But only from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$215.89
Warehouse ?
StockStock availability for pick up
0
$215.89
Warehouse ?
0
$215.89
Store - Charlottetown ?
0
$215.89
Store - Edmonton ?
0
$215.89
Store - Mississauga ?
0
$215.89
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Body Mount Extension Set
$9.99

1/10 Datsun 240Z Rally Body Pr
$66.99

Body Set Laferrari
$64.99

Body Set Toyota Celica GT-Four 1990
$68.99

FEATURES
  • This is a 1/10 ready-to-run R/C model of the 2008 WRC Impreza racing car.
  • Polycarbonate body captures the aggressive form of the Impreza.
  • The improved steering linkage design features TA05 steering posts for sharper steering response.
  • Shaft driven 4-wheel drive TT-01 Type E chassis gives this electric R/C car superior control and handling.
  • Equipped with LED Light Unit TLU-01. *It is possible to assemble with LED Light Control Unit TLU-02 (sold separately).
  • 2 white and 2 red 5mm LED lights (Total 4) are included.
  • Both front and rear light cases have two 5mm and four 3mm LED Light installation points.
  • Includes ESC (TEU-101BK), Type 540 motor and 2-channel R/C system.
  • Length: 434mm, Width: 188mm, Height: 141mm.
  • Battery and charger separately required.
  • Wide variety of Option Parts are separately available to customize your machine.

At the 7th Round of the 2008 World Rally Championship "the Acropolis Rally of Greece", the world has seen the Subaru WRC team unleash their new exciting 2008 Impreza. With team driver Petter Solberg at the helm, the Impreza went on to win 2nd place on debut. The Impreza has also gone on to win a 3rd place podium finish at the Round 9 "Neste Oil Rally Finland".

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
   This is the 1/10 scale electric powered, radio controlled, ready to run
Tamiya Subaru Impreza WRC 2008 On-Road Car.

FEATURES: Chassis: TT-01 type E with shock tower now molded separately from
the gear case covers and new upper deck with transponder mount
new A parts (Uprights) made of polycarbonate plastic material
new D parts (upper deck, motor cover and more) made of fiberglass-
reinforced nylon material
Drive: Four wheel shaft drive
Motor: 540 size with pre-attached leads
Radio: 2-ch pistol grip
Electronic Speed Control: Tamiya TEU-101BK
Lights: Tamiya TLU-01 (TAMC1394) LED light unit with four LED lights,
see COMMENTS
Shocks: Friction, not oil-filled, composite body
Gearbox: Sealed front and rear
Differentials: Bevel gear
Transmission: Single speed
Tires: Radial type 1.02" (26mm) wide, 2.48" (63mm) diameter
Wheels: Gold colored plastic spoke 1.02" (26mm) wide, 2.04"
(52mm) diameter
Body: Lightweight polycarbonate, painted blue with all sponsor decals
and body trim applied, molded plastic rear wing
Bumpers: Foam front bumper
Suspension: Four wheel independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering Tie Rods: Fixed non-adjustable, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis
Steering: Bell-crank TA-05 type with servo saver
Servo Saver: Included

INCLUDES: Tamiya Subaru Impreza WRC 2008, 540 motor, electronic speed control
painted body, tires, foam bumper, wheels, 19 tooth pinion gear
61 tooth spur gear, instructions, LED light unit, black rear wing
and 2-ch radio

REQUIRES: Battery: 6 cell stick pack with standard connector
Charger: AC/DC Timed or Peak for 6-cell battery

SPECS: VEHICLE-
Length: 17.1" (434mm)
Width: 7.4" (188mm)
Height: 5.5" (141mm)
BODY-
Length: 17" (434mm)
Width: 6.8" (173mm)
Height: 4.8" (123mm)

COMMENTS: The TLU-02 Light Control Unit (not included) can be installed for
more light effects, order TAMC1477.

For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
12 5x11mm front & rear diff gears, hubs 6-DTXC1547
4 8X12mm front & rear diff gears 2-DTXC1597

jxs 2/12/09
ir/jxs
