TAM57405

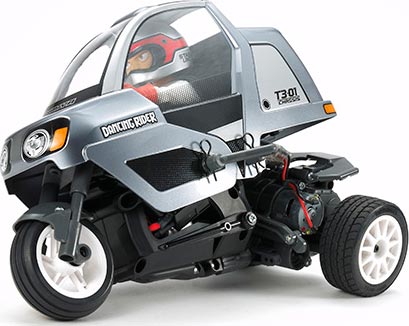

1/8 Dancing Rider Trike Kit

Product Info | Required Items
RESOURCES

Items Required to Complete (5)
TAMIYA

TAM57405
1/8 Dancing Rider Trike Kit
By TAMIYA
$139.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Motorcycle Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
2
$139.99
Warehouse ?
Stock availability for pick up
2
$139.99
Warehouse ?
1
$139.99
Store - Charlottetown ?
2
$139.99
Store - Edmonton ?
3
$139.99
Store - Mississauga ?
2
$139.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
260 mm
Length:
135 mm
Width:
175 mm
Height:
2-channel
Radio Requirements:
Steering Servo
Servo Requirements:
2-channel
Receiver Requirements:
370 Type
Brushed Motor Included:
No
ESC Included:

FEATURES

** NOTE ** This is an RC kit that requires assembly and painting.  Additional electronics, radio system, tools and accessories are required.

This radio control model replicates delivery trikes widely seen making deliveries in Japan. When the model turns, the 3-wheel chassis "leans" into the corner much like their full-size counterparts. The 3-wheel chassis features the motor in the rear section, with the battery in the front. The two sections are linked in the middle, and a steering servo leans the entire front section left and right to effect turns. Furthermore, support arms are linked to the steering servo, and help to right the model if it happens to tip over.


VIDEO

PRODUCT RESOURCES
VENDOR TECHNOTES
               This is the Electric Powered, Radio Controlled,
Tamiya Dancing Rider Trike Kit.

FEATURES: Chassis: T3-01 three-wheel configuration with auxiliary rear deck
that can be used to mount LED light, transponder and more
(LED light and transponder not included)
Steering: Servo controlled front section leans left or right for
turns
Body: Molded polycarbonate with rider figure and helmet
Front Suspension: Telescopic fork type with built-in coil spring
Rear Suspension: Rear cam slide type with built-in coil spring
Body Panels: Molded polycarbonate plastic with driver figure
Motor: Rear mounted, brush equipped
Wheels: White plastic
Tires: Rubber

INCLUDES: Tamiya Dancing Rider Trike Kit with brushed Motor, Body, Decal Sheet
and Instruction Manual
REQUIRES: Battery: 6.6V LF1100, Tamiya #55105 recommended (not carried)
Radio: 2-channel
Electronic Speed Control: Tamiya TRE-01 recommended (not carried)
AA Batteries for transmitter
Building and track equipment

SPECS: Length: 10.2" (260mm)
Width: 5.3" (135mm)
Height: 6.9" (175mm)
