TAM54393

Type 380 Sport-Tuned Motor

Product Info
TAMIYA

TAM54393
Type 380 Sport-Tuned Motor
By TAMIYA
$16.99 CAD    17.99
Save $1.00 (6%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Car Motors Brushed 180-380
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
1
$16.99
Warehouse ?
StockStock availability for pick up
1
$16.99
Warehouse ?
0
$16.99
Store - Charlottetown ?
0
$16.99
Store - Edmonton ?
0
$16.99
Store - Mississauga ?
0
$16.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES
                 What is this item and what kit is it used with?
Where is the part located on the kit?

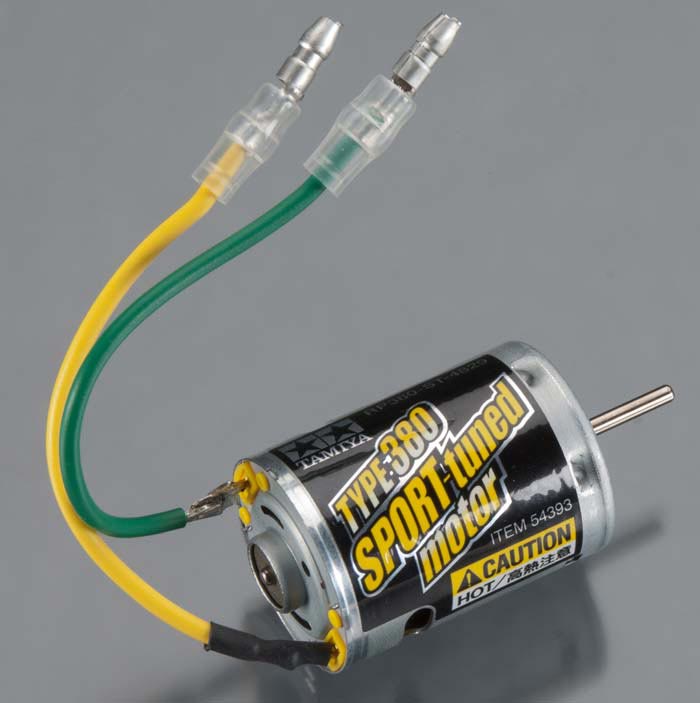

FEATURES: This is a new Type 380 Sport-Tuned Motor for RM-01 and TA05 M-Four
chassis. When used with the model's standard gear ratio, it offers a
higher top speed and improved acceleration than Type 380-S motor
(Item 51487).

The pre-wired cables have 4mm diameter standard connectors.

INCLUDES: One Type 380 motor
Two pinion adapters

SPECS: Diameter: 28mm (1-1/16")
Length: 38mm (1-1/2")
Shaft diameter: 2.3mm (3/32")
Shaft length: 13mm (1/2")
Turns: 29
Top speed: 27km/h (measured on TA05 M-FOUR chassis)
Lead length: 85mm (3-3/8")
Pinion adapter, length: 12.4mm (1/2")
diameter: 3.2mm (1/8")

COMMENTS: Compatible with RM-01 and TA-05 M-Four chassis machines.

Not compatible with Item 58470 Holiday Buggy (2010) & Item 58500 Sand
Rover (2011).

10/15/12 phijwa
