1/10 Tyrrell P34 Six Wheeler 1976 Japan GP

Product Info | Replacement Parts

1/10 Tyrrell P34 Six Wheeler 1976 Japan GP
$259.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road F1 Kits
But only from... TAMIYA
All items from... TAMIYA

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
RS-540 Torque-Tuned Motor
3mm Grub Screw 44002
Low Friction Damper V Parts
Hex Head Ball Conn 5x8mm
F1 Reea Hbr Soft Sponge Pr
1 Pc Ball Thrust Bearing
RC Susp Springs Short/Blk Tour
Alum Spacer Set 5.5mm
click image to enlarge

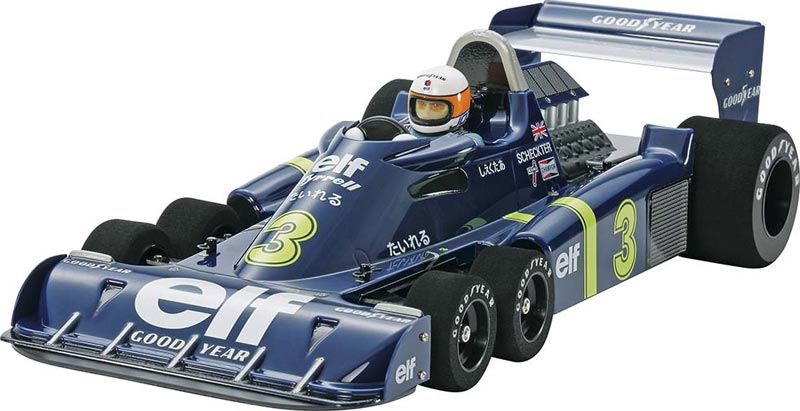

            This is the Tamiya Electric Powered, Radio Controlled
1/10 scale 1976 Japan GP Tyrrell P34 On-Road Car Kit.

FEATURES: Chassis: F103 FRP semi-double deck, 0.06" (1.5mm) thick upper, and
0.10" (2.5mm) thick lower deck
Drive: Rear wheel direct drive
Differential: Ball type for limited slip effect
Motor: Tamiya 25 Turn RS-540 Torque Tuned brush equipped
Shocks: #53901 TRF Special Dampers with titanium coated pistons and
low friction fluorine coated cylinders, aluminum bodies and low
friction pads
Suspension: Front, kingpin coil spring four wheel independent with
one-piece lower arm and separate left and right upper arms,
Rear, FRP T-bar with TRF damper and low friction pads
Wheels: Black plastic
Tires: Sponge type front, width 0.79" (20mm), diameter 1.6" (40mm)
rear, width 1.6" (42mm), 2.4" (62mm) diameter
Body: Clear untrimmed polycarbonate, white plastic driver helmet
Steering: Four wheels linked and controlled by high-torque servo
(not included) with high-torque servo saver

INCLUDES: F103 six Wheel Chassis Car Kit, six Wheels and Tires, Shocks, Motor
Body, Rear Wing and Instruction Manual

REQUIRES: Radio: 2-channel with high speed steering servo
Electronic Speed Control: Compatible with 27T brush equipped motor
such as the Tamiya TEU-105BK
Battery: 7.2V NiMH or NiCd with Standard connector if using ESC
listed above
Battery Charger: Timed or peak, compatible with selected battery
AA Batteries: For transmitter
Building and track equipment

SPECS: Vehicle;
Length: 16.9" (430mm)
Width: 7.9" (200mm)
Height: 4.2" (108mm)
Weight: 1.6lbs (735g)
Length: 14.2" (360mm)
Width: 6.1" (155mm)
Height: 4.7" (119mm)

COMMENTS: For replacement, Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 6x12mm Rear Shaft 1 DTXC1569
8 5x8mm Front Wheels 1 DTXC1525
2 8x12mm Right Rear Wheel 1 DTXC1581

jxs 06/26/17
044455330107 0044455330107
