TAM47348

1/10 The Grasshopper Kit Candy Green Edition

Product Info | Replacement Parts
TAMIYA

TAM47348
1/10 The Grasshopper Kit Candy Green Edition
By TAMIYA
$137.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Buggy Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$137.99
Warehouse ?
StockStock availability for pick up
0
$137.99
Warehouse ?
0
$137.99
Store - Charlottetown ?
0
$137.99
Store - Edmonton ?
0
$137.99
Store - Mississauga ?
0
$137.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

Rear Tires Grasshopper
$15.99

Body w/Wing 58336 Hornet
$28.99

Front Tires Grasshopper/Hornet
$9.99
R Parts 58016
$13.99

18t Pinion Gear For 540 Motor
$6.99

1150 Sealed Ball Bearing Set (2)
$19.99

F Parts 57741/46/56/ 58336/46
$11.99
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

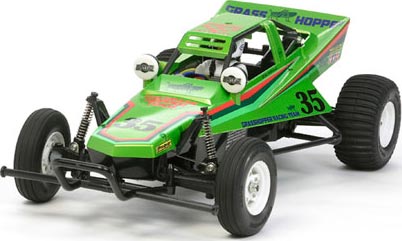

         This is the 1/10 scale, Electric Powered, Radio Controlled,
Candy Green Edition Grasshopper Offroad Racer Kit from Tamiya.

FEATURES: Chassis: ABS resin, tub-type chassis
Drive: Two wheel solid axle rear drive
Motor: 380 size brush equipped electric, 540 motor (not included)
can be installed for more power
Speed Control: Tamiya TBLE02S with Kyosho type connector
Bushings: Full set of plastic bushings
Suspension: Front, independent swing axle, Rear, rigid axle with
friction (not oil filled) shocks
Gearbox: Sealed
Differential: Gear type
Body: Plastic construction, injection molded in Candy Green,
fastens to chassis with screws
Tires: Grooved front, sandpaddle rear
Wheels: 1.6" (41mm) diameter, white three piece five spoke wheels

Bumpers: Reinforced resin front bumper
Suspension: Front swing axle type, rigid rear axle
Rear straight axle with differential
Camber: Fixed, camber refers to the angle of the tops of the tires
from vertical when viewed from front or behind vehicle
Caster: Adjustable front only, caster/toe-in refers to the angle
of the suspension when viewed from the side of the car in relation
to the chassis
Steering: Direct-to-servo with servo saver

INCLUDES: One Grasshopper rolling chassis with friction shocks, 380 motor,
rigid green body, five spoke wheels, front ribbed tires, rear
sandpaddle tires, 50 tooth spur gear, and instructions
_
REQUIRES: Radio: 2-Channel with Steering Servo
Radio Batteries: (8) AA size
Battery: 6-cell flat w/standard connector
Charger: AC/DC timed or peak for 6-cell battery
Building and track equipment

SPECS: Vehicle;
Length: 15.3" (389mm)
Width: 8.8" (223mm)
Height: 5.3" (135mm)
Weight: 1.8 lbs (830g)
Tires: Front .87" x 2.9" (22mm x 74mm) width x diameter
Rear 1.6" x 3.2" (41mm x 81mm) width x diameter
Body;
Length: 13.1" (333mm)
Width: 6.3" (161mm)
Height: 2.7" (70mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
9 5x11mm Wheels and Gearbox 5 DTXC1549
1 5x8mm Counter Gear 1 DTXC1523

jxs 04/04/17
ir/jxs
4950344473489 4950344473489
TAMC7348
