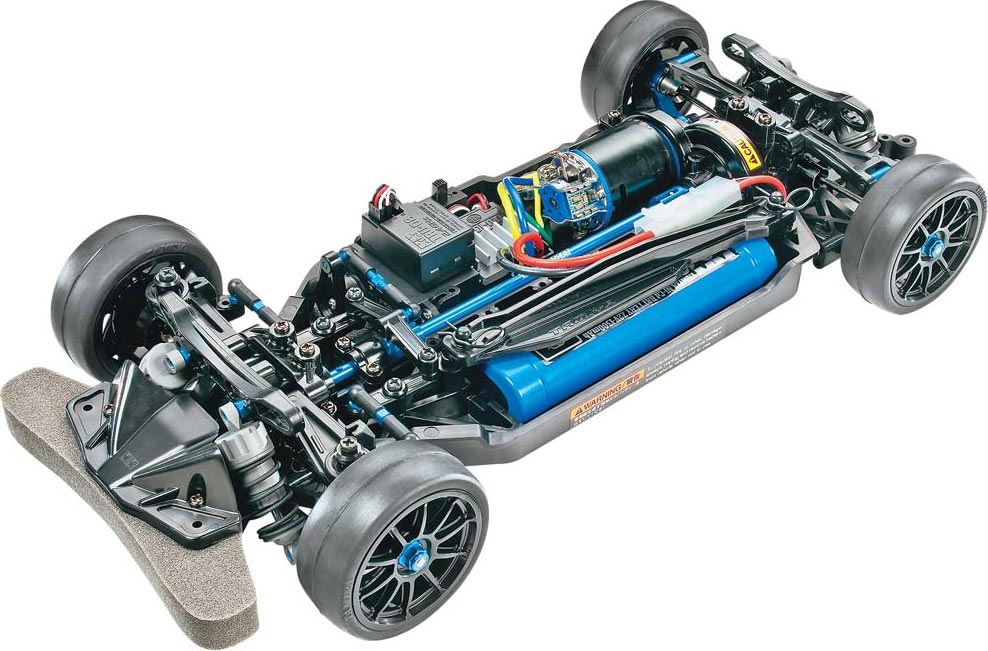

         This is the 1/10 scale, electric powered, radio controlled,
Tamiya TT02R On-Road Chassis Kit.
The following Hop Up Option Parts are included;
53159 4mm Aluminum Flange Lock Nut (Blue)
54247 3x18mm Aluminum Turnbuckle Shaft (Blue) x2
54501 TT-02 Aluminum Propeller Shaft
53642 5mm Aluminum Ball Connector (Blue)
54500 TT-02 High-Speed Gear Set (68T)
54502 TT-02 Aluminum Propeller Joint

FEATURES: Chassis: ABS resin bathtub type minimizes contact with the road
Drive: Four wheel, aluminum shaft driven

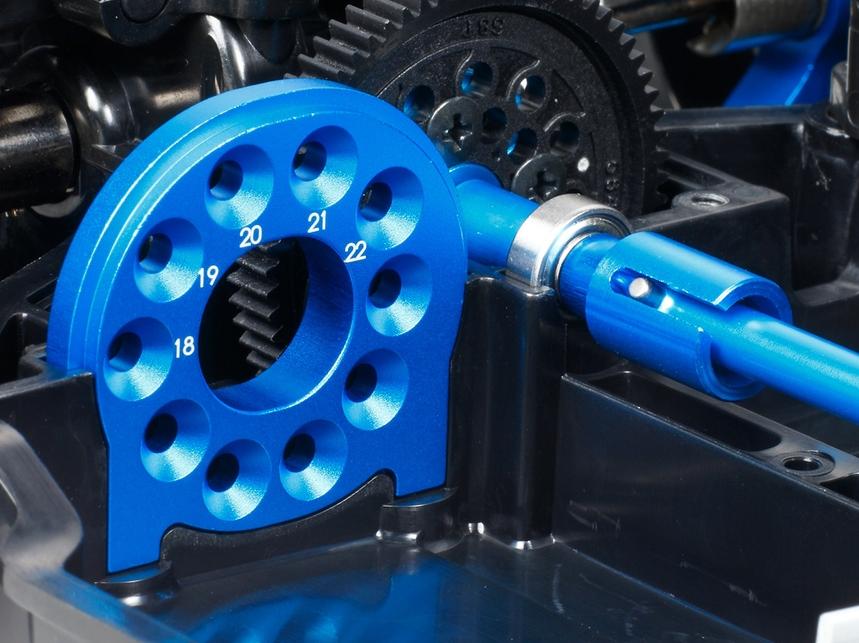

Motor Mount: Aluminum
Differential: Gear type
Wheels: Ten spoke, black in color
Tires: Slick rubber with foam inserts
Ball Bearings: Shielded
Suspension: Fully independent double wishbone
Shocks: CVA oil-filled
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

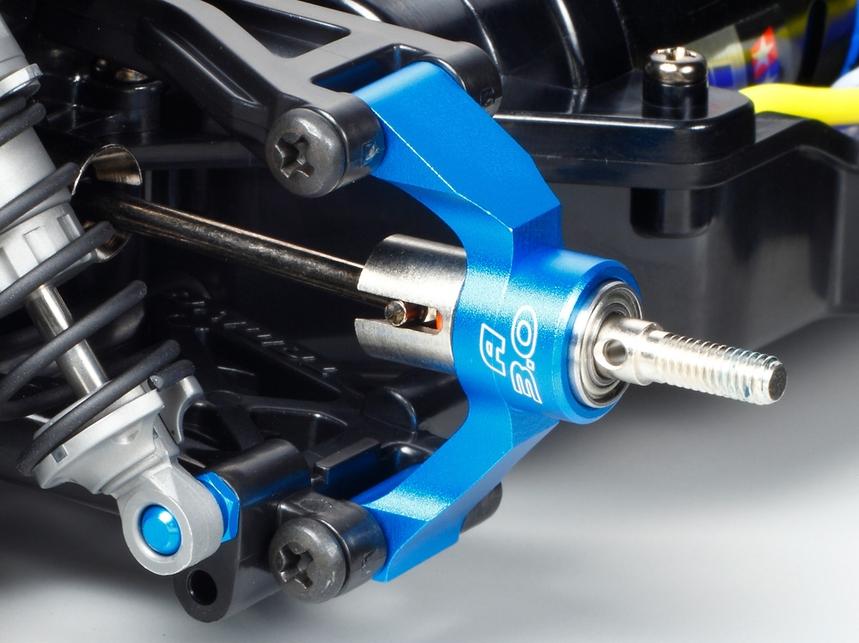

Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis, newly-designed aluminum uprights provide 3 degrees of
toe-in for better stability when cornering
Steering: Bellcrank type
Bumper: Front, urethane

INCLUDES: Tamiya TT0R Chassis, with Tires, Wheels, Shocks, Decals and
Instructions

REQUIRES: Radio: 2-channel with high speed steering servo
Motor: Tamiya Super Stock brushed motor recommended
Electronic Speed Control: To match selected motor
Battery: 7.2V NiMH
Battery Charger: To match selected battery
Body: 1/10 scale on-road
Paint, building and track equipment

SPECS: Length: 14.8" (376mm)
Width: 7.2" (182mm)
Wheelbase: 10.1" (257mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
2 8x12mm Front Differential 1 DTXC1581
2 8x12mm Rear Differential 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535
