TAM47321

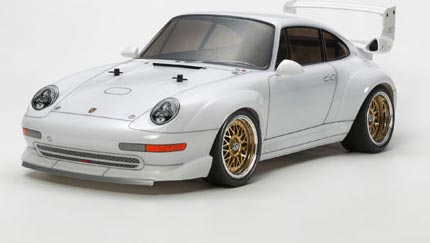

1/10 Porsche 911 GT2 Racing TA02Sw 4WD On Road

Product Info | Replacement Parts
TAMIYA

TAM47321
1/10 Porsche 911 GT2 Racing TA02Sw 4WD On Road
By TAMIYA
$206.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$206.99
Warehouse ?
StockStock availability for pick up
0
$206.99
Warehouse ?
0
$206.99
Store - Charlottetown ?
0
$206.99
Store - Edmonton ?
0
$206.99
Store - Mississauga ?
0
$206.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Cera-Grease HG
$9.99

3mm Grub Screw 44002
$5.99

Body Pin Set
$4.99

Pinion Gear Set 20/21T
$9.99
TG10 Front Wheel Axle
$12.99

Diff Bevel Gear Set 49/84
$7.99

Drive Shaft Set TA04
$13.99

2mm E-Ring 44002
$3.49
click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the Radio Controlled, Electric Powered, 1/10 scale,
Porsche 911 GT2 On-Road Car Kit from Tamiya.

FEATURES: Chassis: TA-02 SW (short wheelbase) molded plastic
Drive: Four wheel shaft drive, dogbone
Motor: Torque-Tuned 540 size brushed
ESC: TBLE-02S with brushed and brushless motor mode, Kyosho type
battery connector
Rear Differential: Ball type
Spur Gear: 74 tooth plastic
Pinion Gear: 21 tooth metal
Suspension: Fully independent double wishbone
Shocks: CVA plastic body oil-filled
Tires: Slick rubber 2.5" (64mm) diameter, front width 1.02" (26mm),
rear width 1.2" (31mm), with foam inserts
Wheels: Two piece plastic bronze color
front width 1.02" (26mm), 1.25" (32mm) rear width, 1.9"
(48mm) diameter
Steering: Bellcrank type
Body: Polycarbonate
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable front only, caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis

INCLUDES: TT-02 Porsche 911 GT2 with Brushed Motor, ESC, Body, Tires, Wheels
Foam Inserts, Decals, Shock Oil and Instruction Manual

REQUIRES: Radio: 2-ch with steering servo
Battery: 7.2V stick pack with standard connector
Battery Charger: For selected battery pack
Polycarbonate safe spray or brush-on paint
Track and maintenance equipment

SPECS: Vehicle-
Length: 17.4" (442mm)
Width: 7.9" (202mm)
Height: 5.4" (137mm)
Wheelbase: 9.3" (236mm)
Body-
Length: 17.2" (437mm)
Width: 7.5" (190mm) at rear wheels, widest point
Height: 4.3" (109mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
1 5x11mm Spur Gear 1 DTXC1547
1 5x8mm Spur Gear 1 DTXC1523
1 5x11mm Driveshaft 1 DTXC1547
1 5x8mm Driveshaft 1 DTXC1523
2 8x12mm Differential 1 DTXC1581
2 6x12mm Front Uprights 1 DTXC1569
2 10x15mm Front Uprights 1 DTXC1595
4 5x11mm Rear Uprights 2 DTXC1547
2 5x11mm Front Gearbox 1 DTXC1547
1 5x11mm Counter Gear 1 DTXC1547

jxs 05/19/16
ir/jxs
4950344473212 4950344473212
TAMC7321
