TAM47308

1/12 Volkswagen Golf Mk.1 Racing Group 2 (M-05)

Product Info
TAMIYA

TAM47308

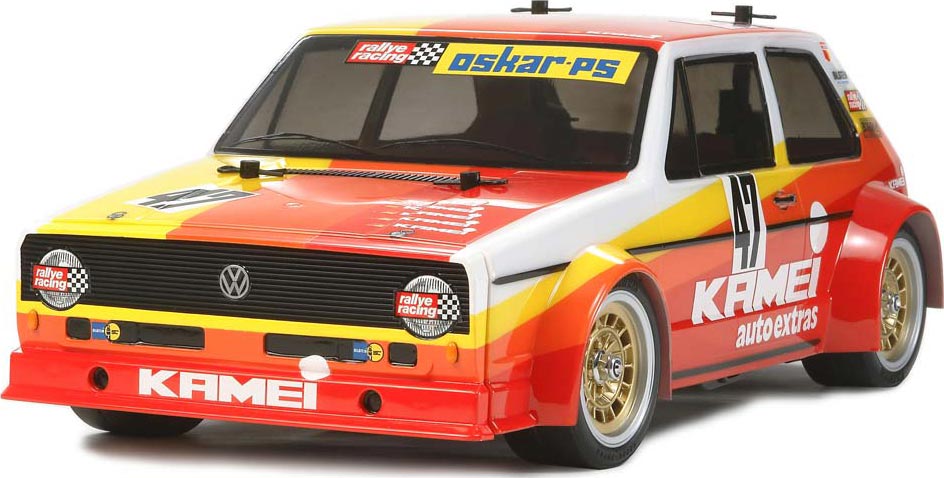

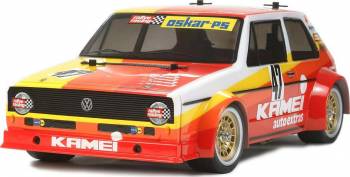

1/12 Volkswagen Golf Mk.1 Racing Group 2 (M-05)
By TAMIYA
$154.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
1
$154.99
Warehouse ?
Stock availability for pick up
1
$154.99
Warehouse ?
0
$154.99
Store - Charlottetown ?
1
$154.99
Store - Edmonton ?
0
$154.99
Store - Mississauga ?
1
$154.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
329 mm
Length:
175 mm
Width:
120 mm
Height:
210
Wheelbase:
Front Wheel Drive
Drivetrain:
540 type
Brushed Motor Included:
TBLE-02s (LiPo compatible)
ESC Included:

FEATURES

vThe Volkswagen Golf Mk.1 was a well-known machine of European touring car racing. The Kamei-sponsored car with its distinctive livery ran in the low-modification Group 2 class of its day.

The Tamiya R/C model faithfully captures the fun and maneuverability of the real life subject as it comes on the proven M-05 M-chassis platform. The M-05 is a simple to build FWD (front wheel drive) machine, which allows for plenty of after-market parts to be outfitted as you grow with your skill.

VENDOR TECHNOTES
               This is the Electric Powered, Racio Controlled
1/10 scale Tamiya Volkswagen Golf Mk.1 Racing Group 2 On-Road Car Kit.

FEATURES: Chassis: M5 resin monocoque design
Drive: Front wheel, double cardan driveshafts
Differential: Gear type
Motor: 540 size, brush equipped
ESC: Tamiya TBLE-02
Shocks: Friction, not oil-filled
Pinion Gear: 20T
Motor Plate: 3mm thick
Suspension: Four wheel independent double wishbone
Tires: Treaded 60D radial 0.98" (25mm) wide, 2.3" (59mm) diameter
with foam inserts
Wheels: Gray plastic, 0.94" (24mm) wide, 1.5" (38mm) diameter
Body: Clear polycarbonate construction with white plastic grille
and driver figure
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Steering: Three piece tie-rod linkage

INCLUDES: Volkswagen Golf Mk.1 1/10 scale Kit with Clear Body, Brushed Motor,
ESC, Tires with Foam Inserts, Wheels, Decals and Instruction Sheet

REQUIRES: Radio: 2-channel with standard size servo
AA Batteries: Number depends on transmitter
Battery: 6-cell stick with standard connector
Battery Charger: Peak type recommended
Polycarbonate safe paint, building and track equipment

SPECS: Body;
Length: 12.5" (319mm)
Width: 6.7" (170mm) measured at wheel openings (widest point)
Height: 3.7" (93mm)
Vehicle;
Wheelbase: Adjustable, 8.3 (210mm), 9" (225mm) and 9.4" (239mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
3 5x11mm TX Gears 2 DTXC1547
2 5x8mm TX Gears 2 DTXC1523
1 5x11mm Counter Gear 1 DTXC1547
2 5x11mm Front Uprights 1 DTXC1547
2 5x11mm Rear Uprights 1 DTXC1547
4 5x8mm Steering 2 DTXC1523

jxs 01/22/16
