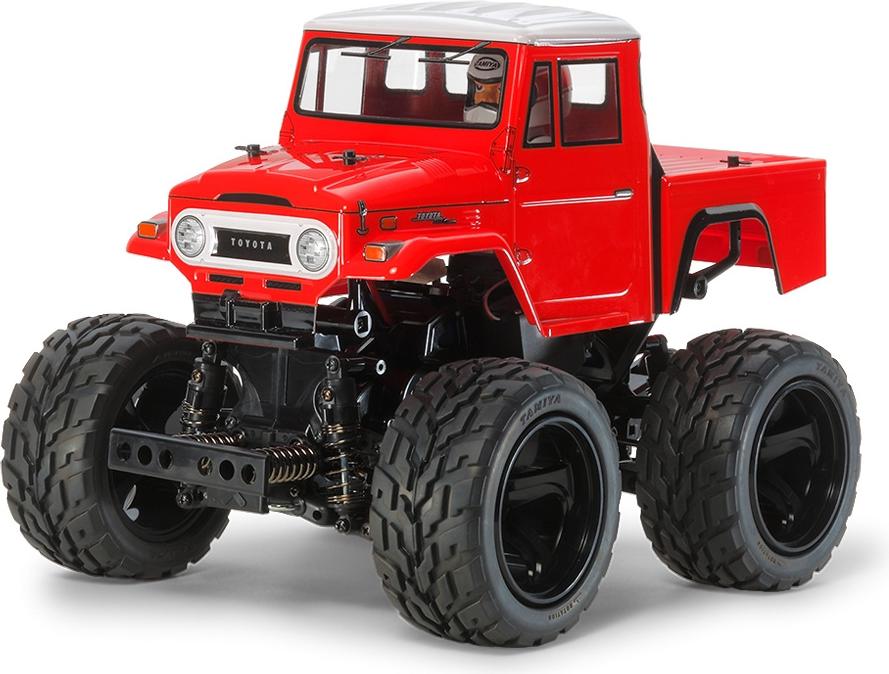

      This is the Tamiya 1/12 scale Electric Powered, Radio Controlled,
Toyota Land Cruiser 40 Pickup Truck Kit with Red Painted Body.

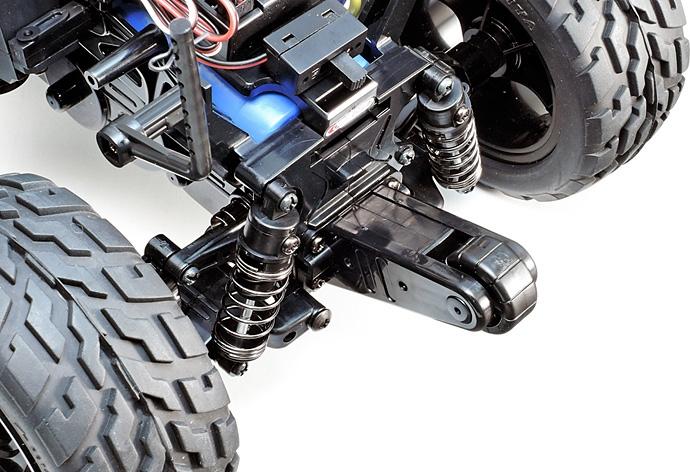

FEATURES: Chassis: Plastic with rear wheelie bar
Drive: Four wheel with dogbones
Motor: Tamiya torque tuned 540 brushed
Electronic Speed Control: Tamiya TBLE-02S
Differentials: Front and rear in sealed gearbox integrated into frame
Body: Prepainted in red with white roof, and unpainted helemeted
driver figure
Suspension: Fully independent double wishbone
Shocks: Plastic body friction
Steering: Bellcrank
Tires: V-pattern rubber with foam inserts
Wheels: 5-spoke plastic 1.8" (47mm) wide, 2.6" (67mm) diameter,
black in color

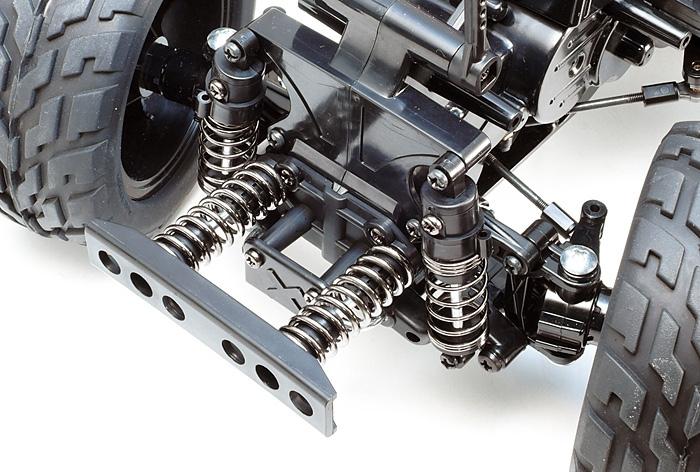

Bumper: Front spring loaded
Camber Tie Rods: Fixed non-adjustable
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis

INCLUDES: Toyota Land Cruiser 40 Pickup Truck Kit with ESC, Motor, Painted
Body, Driver Figure, Tires, Wheels, Shocks, 18 tooth Pinion Gear
and Instruction Manual

REQUIRES: Radio: 2-channel
Battery: 7.2V NiMH 6-cell stick pack with standard connector
Battery Charger: Compatible with selected battery
AA Batteries: For transmitter
Paint, building and track equipment

SPECS: Vehicle;
Length: 13.1" (333mm)
Width: 9.6" (244mm)
Height: 9.5" (242mm)
Body;
Length: 12.1" (308mm)
Width: 5.7" (146mm)
Height: 4.8" (123mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Differential 1 DTXC1547
8 5x11mm Counter Gears 4 DTXC1547
4 5x11mm Front Uprights 2 DTXC1547
4 5x11mm Rear Uprights 2 DTXC1547
2 5x8mm Steering Linkage 1 DTXC1523
