TAM46631

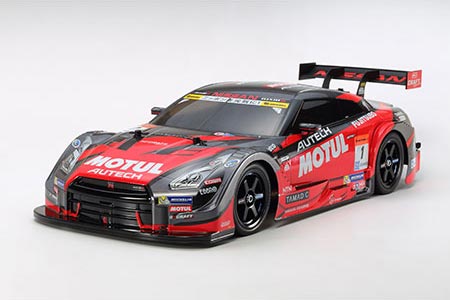

1/10 XB Motul Autech GT-R TT01Es RTR

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (12)
Optional Items (28)
TAMIYA

TAM46631
1/10 XB Motul Autech GT-R TT01Es RTR
By TAMIYA
$369.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$369.99
Warehouse ?
Stock availability for pick up
0
$369.99
Warehouse ?
0
$369.99
Store - Charlottetown ?
0
$369.99
Store - Edmonton ?
0
$369.99
Store - Mississauga ?
0
$369.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES
      This is the Electric Powered, 2.4GHz Radio Controlled, 1/10 scale,
Ready to Run XB Motul Autech GT-R On-Road Car from Tamiya.
From Tamiya's XB Pro Expert Built Series.

FEATURES: Chassis: TT-01 type ES, streamlined version of the TT-01 type E
chassis-compatible with a variety of Tamiya Option Parts
Drive: Four wheel shaft drive with dogbones
Electronic Speed Control: Tamiya TEU-105BK with reverse and battery
eliminator circuitry (BEC)
Radio: Tamiya Finespec 2.4GHz
Motor: 540 brushed motor
Ball Bearings: Installed in differentials, bushings in wheel hubs
Shocks: Friction, plastic body
Gearbox: Sealed, front and rear
Differentials: Bevel gear, ball bearing equipped
Transmission: Single speed
Body: Molded polycarbonate plastic, trimmed and painted, separate
wing and side mirrors
Tires: Treaded rubber 0.94" (24mm) wide, 2.6" (65.5mm) diameter
Wheels: 6-spoke 2.0" (52mm) outer diameter, 0.94" (24mm) wide
Bumper: Front foam
Suspension: Fully independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Tamiya RTR XB Motul Autech On-Road Car, 540 motor, ESC, painted
and trimmed body, tires, foam bumper, wheels, 19 tooth pinion gear,
61 tooth spur gear, decals, and 2.4GHz radio

REQUIRES: AA Batteries: Eight for transmitter
Battery: 6-cell stick pack with standard connector
Charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Building and track equipment

SPECS: VEHICLE-
Length: 17" (432mm)
Width: 7.4" (183mm)
Height: 4.5" (114mm)
Wheelbase: 10.1" (257mm)
BODY-
Length: 17.7" (450mm)
Width: 7.5" (190mm)
Height: 3.9" (100mm)

COMMENTS: For replacement, or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x11mm Front Hubs 1 DTXC1547
2 5x11mm Rear Hubs 1 DTXC1547
2 8x12mm Front Diff 1 DTXC1581
2 8x12mm Rear Diff 1 DTXC1581
2 5x11mm Fr Driveshaft Joint 1 DTXC1547
2 5x11mm Rear Driveshaft Joint 1 DTXC1547

jxs 04/15/16
ir/jxs
4950344466313 4950344466313
TAMC6631
