  • Comes with a finished polycarbonate body.
  • Finespec 2.4GHz R/C system is pre-installed.
  • TEU-105BK ESC (equipped with BEC) comes pre-installed.

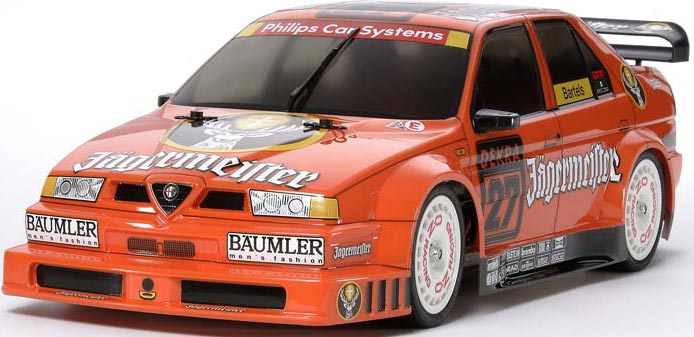

This is a fully factory assembled and ready-to-run R/C model of the Alfa Romeo 155 V6 TI Jägermeister. The painted and finished super detailed polycarbonate body is mated to the easy to maintain TT-02 4WD on-road chassis platform. The TT-02 chassis features a 4WD drive drive-train with fully independent double wishbone suspension. The pre-installed 2-channel radio gear system operates on 2.4Ghz technology which allows you to run your vehicle any place without the need to worry about other R/C enthusiasts nearby.

The TT-02 is the new standard in Tamiya's entry level cars. The chassis has the battery pack and motor placed longitudinally on the left and right sides of the chassis respectively. The skid-shaped lower deck enables a greater roll movement range during cornering, and the 4-wheel double wishbone suspension is equipped with identical left/right suspension arms and uprights, making maintenance and assembly a simple task. The drivetrain features a motor mount which allows up to 10 different gear ratios as well as front and rear enclosed gearboxes equipped with resin 4-pinion differentials. In addition, 2-types of ground clearance and wheelbase length are possible by altering parts position, making it a flexible machine too.

click image to enlarge
         This is the Radio Controlled, Electric Powered, 1/10 scale,
Ready to Run Alfa Romeo 155 V6 TI Jägermeister On-Road Car from Tamiya.

FEATURES: Chassis: Plastic, TT-02 with skid shaped lower deck for greater roll
movement during cornering
Drive: Four wheel drive, dogbone
Motor: Torque-Tuned 540 size brushed
Radio: Tamiya Finespec 2.4GHz FHSS 2-channel
ESC: TEU-105BK with reverse
Differential: Gear type
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction (not oil filled)
Wheels: Plastic, white in color
Tires: Treaded rubber 2.6" (67mm) diameter, 1" (26mm) wide
Steering: Bellcrank type
Body: Polycarbonate, separate mirrors, and rear wing
Bumper: Front foam
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-Adjustable, caster/toe-in refers to the angle of
the front suspension when viewed from the side of the car in
relation to the chassis

INCLUDES: TT-02 Factory Finished On-Road Chassis with Brushed Motor, ESC, Body,
Decals, and Instruction Manual

REQUIRES: AA Batteries: Four for transmitter
Battery: 7.2V stick pack with standard connector
Battery Charger: For selected batery pack
Track and maintenance equipment

SPECS: Vehicle-
Specs such as length and height not provided by manufacturer
Wheelbase: 10" (251mm)
Length: 18.1" (460mm)
Width: 7.3" (185mm)
Height: 3.5" (89mm)

COMMENTS: To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Drive Shaft 1 DTXC1547
2 8x12mm Differential 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535
