TAM46626

1/10 XB RTR Gazoo Racing TRD 86 TT01ES

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM46626
1/10 XB RTR Gazoo Racing TRD 86 TT01ES
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric On-Road
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$310.24
Warehouse ?
StockStock availability for pick up
0
$310.24
Warehouse ?
0
$310.24
Store - Charlottetown ?
0
$310.24
Store - Edmonton ?
0
$310.24
Store - Mississauga ?
0
$310.24
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Small Metric 4-Way Wrench
$4.99

RS540 Sport Tuned Motor 49/62
$38.99

G Parts TT-01
$9.99

1/10 Datsun 240Z Rally Body Pr
$66.99
3mm Grub Screw 44002
$5.99

Heat Resist Dbl Side Tape
$7.99

Body Pin Set
$4.99

GT Tuned Motor 25t
$55.99
FEATURES
  • Includes 2.4Ghz radio system
  • Painted and Finished polycarbonate body
  • Highly upgradable chassis

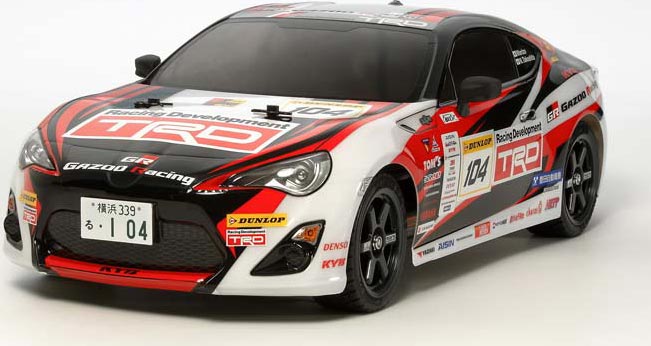

This is a Ready-to-Run expert built radio control model of the GAZOO Racing TRD 86 race car. The kit has been built by Tamiya's expert builders (XB) to ensure the beginning R/C enthusiast receives a high quality built car so they may enjoy driving it right out of the box.

The GAZOO Racing TRD 86 body is mounted on Tamiya’s entry level TT-01 Type ES chassis platform. The TT-01 is easy to drive as it’s fitted with independent double wishbone suspension and full time 4WD. The TT-01 is also a very simple car to maintain with inexpensive replacement parts and over 70 Hop-Up-Options available.

The TRD 86 is a car based on the Toyota 86 and it’s completely optioned out by TRD, Toyota's in-house tuning shop. This vehicle was run by the GAZOO Racing team, and took part in the Shinshiro Rally stage of the multi-stage TRD Rally Challenge Series held in Japan in 2012. The car finished in a credible 13th place overall (8th in the Toyota-only Class 4), but perhaps most remarkably, the GAZOO Racing TRD 86 was actually driven by the President of the Toyota motor company during the race.

Note: TT-01 ES models are streamlined versions of the regular TT-01 Type E models as they use a less expensive tire.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
   This is the 1/10 scale electric powered, radio controlled, ready to run
XB Sport Gazoo Racing TRD 86 On-Road Car from Tamiya.

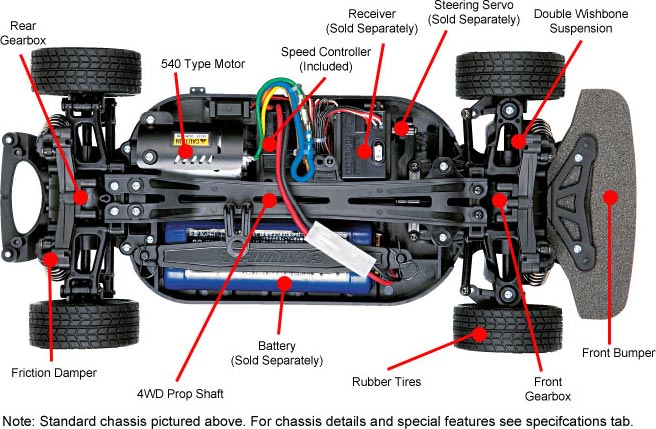

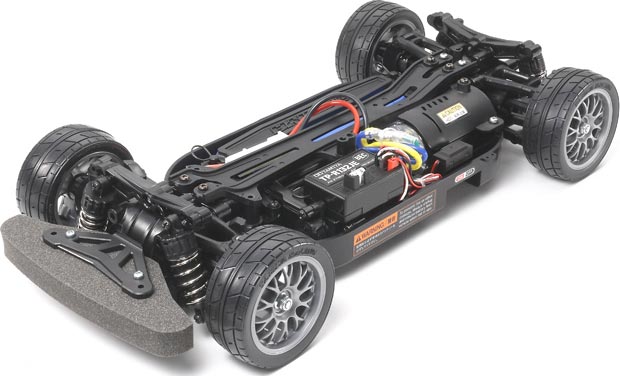

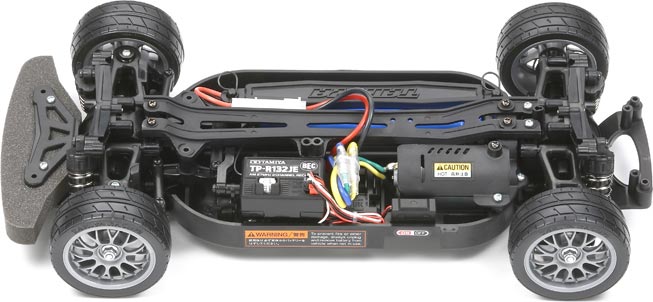

FEATURES: Chassis: TT-01 type ES, streamlined version of the TT-01 type E
chassis-compatible with a variety of Tamiya Option Parts
Drive: Four wheel shaft drive
Motor: 540 motor with pre-attached leads
Differentials: Bevel gear, bushing equipped
Gearbox: Sealed, front and rear
Radio: Tamiya Finespec 2.4GHz with servo reverse and trim
ESC: Tamiya TEU-105BK with reverse
Body: Painted and trimmed with decals and rear wing
Shocks: Plastic bodied, friction
Tires: Treaded 1.02" (26mm) wide, 2.6" (65.5mm) diameter
Wheels: 2.1" (53mm) outer diameter, 0.94" (24mm) wide
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Gazoo Racing TRD 86 with Radio, Motor, ESC, Painted Body and
Instruction Manual

REQUIRES: AA Batteries: Four for transmitter
Battery: 7.2V 6-cell stick
Battery Charger: To match selected battery
Building and track equipment

SPECS: Vehicle-
Length: 16.7" (425mm)
Width: 7" (178mm)
Wheelbase: 10.1" (257mm)
Body-
Length: 17" (430mm)
Width: 7.3" (186mm)
Height: 4.5" (114mm)

COMMENTS: For Replacement or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
12 5x11mm front & rear diff gears, hubs 6 DTXC1547
4 8X12mm front & rear diff gears 2 DTXC1597

jxs 10/02/13
ir/jxs
