FEATURES
  • Finespec 2.4GHz R/C system is pre-installed
  • Finished polycarbonate body
  • The TT-01 Type-ES chassis is a streamlined version of the popular TT-01 Type-E Chassis

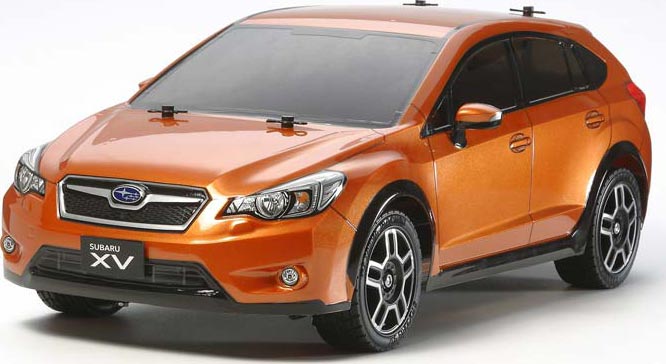

This is a fully factory assembled and ready-to-run R/C model of the Subaru XV crossover passenger car. This item is also available as a kit for those radio control enthusiasts who prefer to build and finish their creations. The Subaru XV crossover passenger car is mated to the highly popular and easy to maintain and upgrade TT-01 Type ES chassis platform. The TT-01ES features fully independent double wishbone suspension for easy parking lot running and thanks to its 4WD drivetrain it’s easy for the beginner to drive and maneuver.

Note: TT-01 ES models are streamlined versions of the regular TT-01 Type E models as they use a less expensive tire.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
   This is the 1/10 scale electric powered, radio controlled, ready to run
XB Sport Subaru XV On-Road Car from Tamiya.

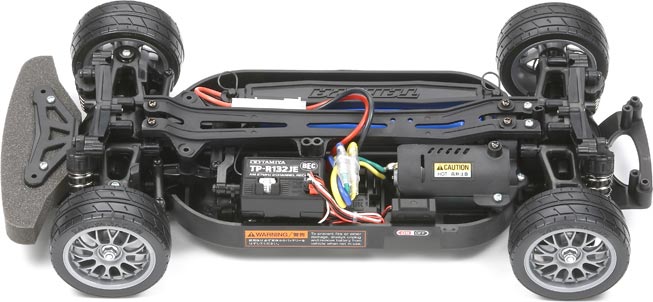

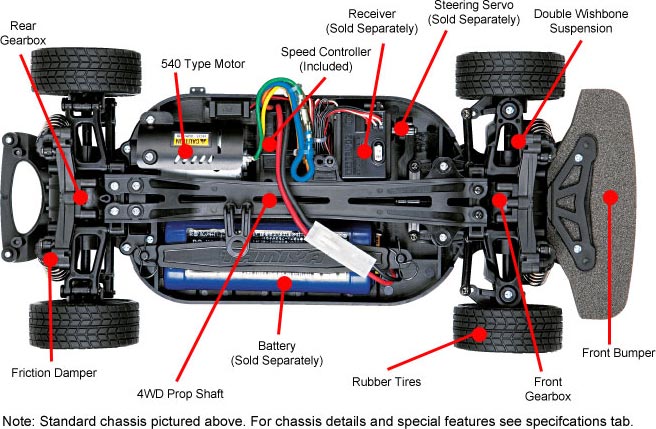

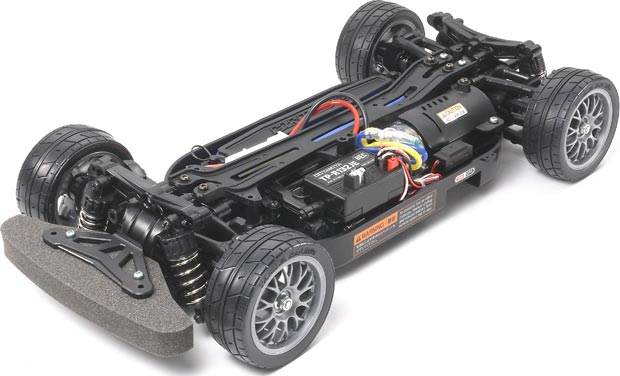

FEATURES: Chassis: TT-01 type ES, streamlined version of the TT-01 type E
chassis-compatible with a variety of Tamiya Option Parts
Drive: Four wheel shaft drive
Motor: 540 motor with pre-attached leads
Differentials: Bevel gear, bushing equipped
Gearbox: Sealed, front and rear
Radio: Tamiya Finespec 2.4GHz
ESC: Tamiya TEU-105BK with reverse
Body: Painted and trimmed with decals and rear wing
Shocks: Plastic bodied, friction
Tires: Treaded 1.02" (26mm) wide, 2.6" (65.5mm) diameter
Wheels: 2.1" (53mm) outer diameter, 0.94" (24mm) wide
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Subaru XVB RTR Car with Radio, Motor, ESC, Painted Body and
Instruction Manual

REQUIRES: AA Batteries: Eight for transmitter
Battery: 7.2V 6-cell stick
Battery Charger: To match selected battery
Building and track equipment

SPECS: Vehicle-
Length: 16.7" (425mm)
Width: 7" (178mm)
Wheelbase: 10.1" (257mm)
Body-
Length: 17.75" (430mm)
Width: 7.5" (190mm)
Height: 4.8" (123mm)

COMMENTS: For Replacement or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
12 5x11mm front & rear diff gears, hubs 6 DTXC1547
4 8X12mm front & rear diff gears 2 DTXC1597
