FEATURES
  • The XBS chassis is a streamlined version of the popular TT-01 Type-E Chassis.
  • Type 540 motor, ESC, and 2-channel AM Adspec GP transmitter included.
  • Length: 425mm, Width: 190mm, Wheelbase: 257mm.

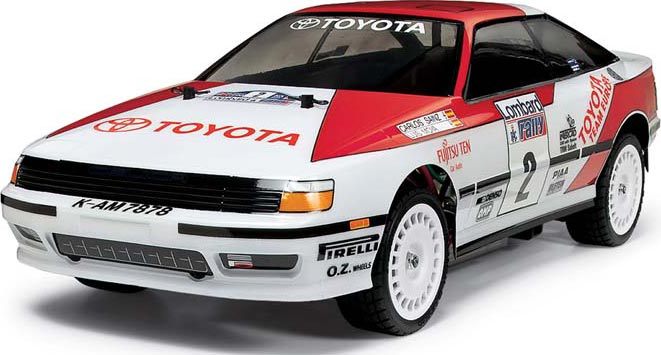

This is a Ready to Run R/C on-road car of the Toyota Celica GT-Four 1990, which took 4 wins including the Rally of Great Britain during the 1990 World Rally Championship season. The body sits on the proven and reliable Tamiya TT-01 ES chassis.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
  This is the 1/10 scale electric powered, radio controlled, ready to run
Toyota Celica GT-Four On-Road Car from Tamiya.

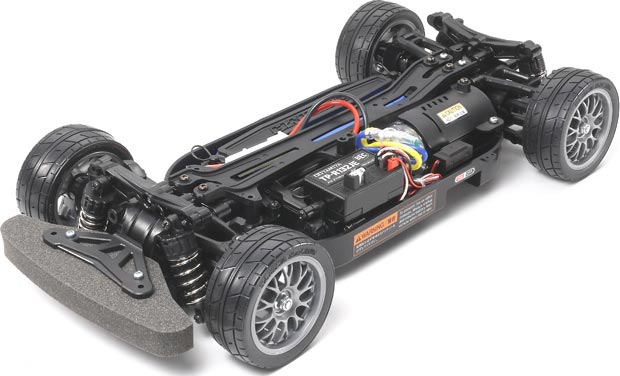

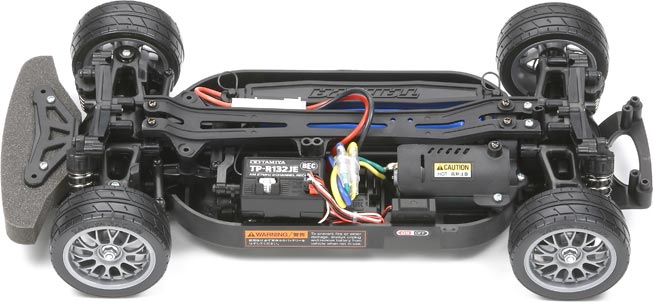

FEATURES: Chassis: TT-01 type ES, streamlined version of the TT-01 type E
chassis-compatible with a variety of Tamiya Option Parts
Drive: Four wheel shaft drive
Motor: 540 motor with pre-attached leads
Differentials: Bevel gear, bushing equipped
Gearbox: Sealed, front and rear
Radio: 2.4GHz radio
ESC: Tamiya TEU-105BK with reverse
Body: Painted and trimmed with decals and rear wing
Shocks: Plastic bodied, friction
Tires: Treaded 1.02" (26mm) wide, 2.6" (65.5mm) diameter
Wheels: 2.1" (53mm) outer diameter, 0.94" (24mm) wide
Bumper: Front foam
Suspension: Independent double wishbone
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Non-adjustable, caster/toe-in refers to the angle of the
front suspension when viewed from the side of the car in relation
to the chassis
Steering: Bell-crank type with servo saver

INCLUDES: Toyota Celica GT-Four RTR Car with Radio, Motor, ESC, Painted
Body and Instruction Manual

REQUIRES: AA Batteries: Eight for transmitter
Battery: 7.2V 6-cell stick
Battery Charger: To match selected battery
Building and track equipment

SPECS: Vehicle-
Length: 16.7" (425mm)
Width: 7" (178mm)
Wheelbase: 10.1" (257mm)

Length: 17.9" (454mm)
Width: 7.3" (185mm)
Height: 4.2" (106mm)

COMMENTS: For Replacement or to upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
12 5x11mm front & rear diff gears, hubs 6 DTXC1547
4 8X12mm front & rear diff gears 2 DTXC1597
