  • Various specs of the TG-10 Mk.2 SG chassis have been updated to create the TG-10 Mk.2 SZ chassis.
  • Kit includes purpose made rubber tires for gas engine cars.
  • Comes with a size 12 engine with slide valve carburetor, & pull starter

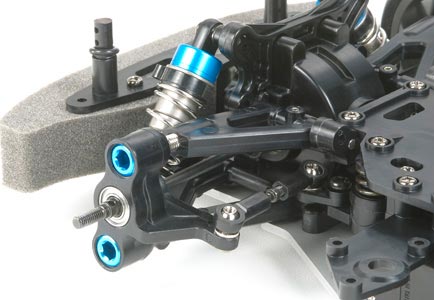

  • Pillow ball front suspension-75cc fuel tank
  • Updated receiver battery compartment to accomidate 6.6v LiFe batteries.
  • Fully adjustable suspension
click image to enlarge

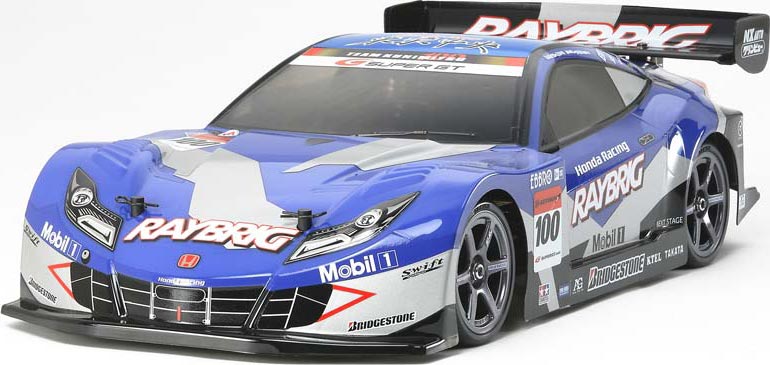

           This is the radio controlled, glow powered, 1/10 scale
Raybrig Honda HSV-010 On-Road Car Kit from Tamiya.

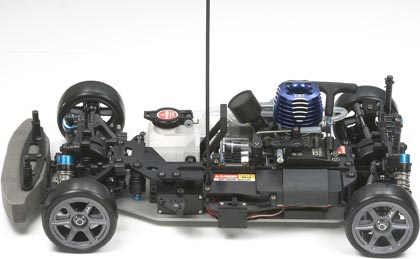

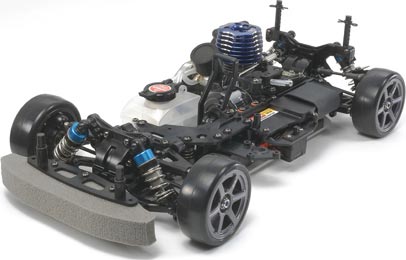

FEATURES: Chassis: TG-10 Mk 2 SZ 0.12" (3mm) natural finish aluminum
Drive: Four wheel shaft

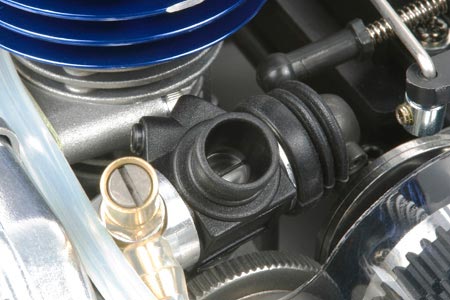

Engine: FS-12 FX .12 cu in (1.96cc) with pull starter, slide valve
carburetor, glow plug and muffler

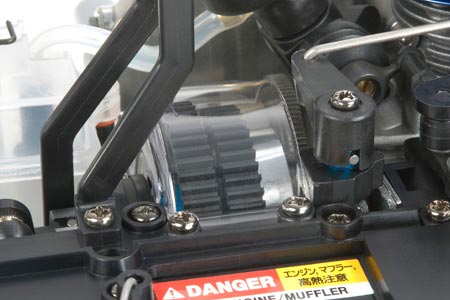

Transmission: Two-speed
Clutch: Two shoe, 20 and 24 tooth pinion gears
Gearboxes: Sealed
Spur Gears: 50 and 54T composite spur gears

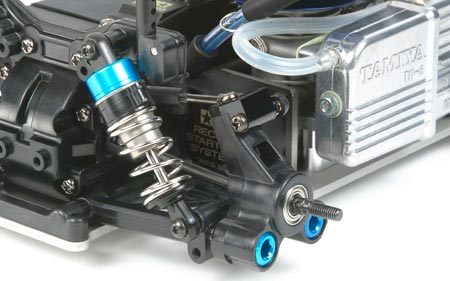

Suspension: Adjustable independent double wishbone, front and rear
Bumper: Front urethane
Body: Clear polycarbonate with rear wing
Ball Bearings: Full Set

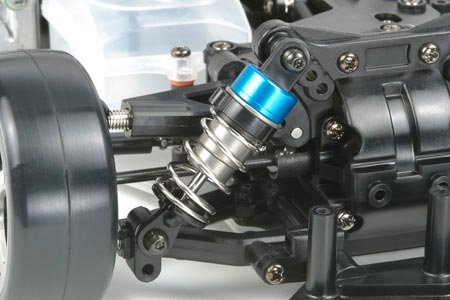

Shocks: Oil-filled aluminum bodied
Fuel Tank: 2.5oz (75cc)
Tires: Rubber slicks 2.5" (65mm) diameter, 0.94" (24mm) wide, with
foam inserts
Wheels: Six-spoke gray +2 offset 2.2" (58mm) diameter, 0.94" (24mm)
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: Raybrig Honda HSV-010 On-Road Car Kit with Body, Rear Wing, Engine,
Muffler, Glow Plug, Tires, Wheels, Decals and Instruction Manual

REQUIRES: Radio: 2-channel with high speed steering servo
Fuel: Car blend with 20% nitro
Glow starter, fuel bottle, building and track equipment

SPECS: Vehicle-
Length: 14.8" (377mm)
Width: 7.8 - 7.9" (198 - 202mm) adjustable
Wheelbase: 10.1" (257mm)
Tread: 6.8 - 6.9" (172 - 176mm) adjustable (center of tires side-to-
Gear Ratio: 1:7.02 (low gear)
1:5.42 (second gear)
Length: 16.8" (428mm)
Width: 7.9" (200mm)
Height: 3.5" (90mm)

COMMENTS: For Replacement or to Upgrade to Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 6x12mm Transmission 1 DTXC1569
1 8x12mm Fr Diff 1 DTXC1581
1 8x12mm Rear Diff 1 DTXC1581
2 10x15mm Fr Gearbox 1 DTXC1595
1 5x11mm Fr Output Shaft 1 DTXC1547
1 5x11mm Rear Output Shaft 1 DTXC1547
2 10x15mm Fr Uprights 1 DTXC1595
2 6x12mm Fr Uprights 1 DTXC1569
2 10x15mm Rear Uprights 1 DTXC1595
2 6x12mm Rear Uprights 1 DTXC1569
1 8x12mm Clutch 1 DTXC1581
