TAM42301

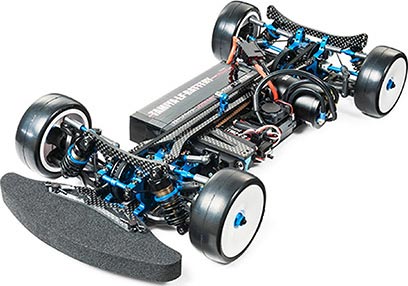

1/10 TRF419X Chassis Kit 4WD Belt Drive On Road

Product Info | Replacement Parts | Optional Items
RESOURCES

Replacement Parts (5)
Optional Items (4)
TAMIYA

TAM42301
1/10 TRF419X Chassis Kit 4WD Belt Drive On Road
By TAMIYA
$829.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$829.99
Warehouse ?
Stock availability for pick up
0
$829.99
Warehouse ?
0
$829.99
Store - Charlottetown ?
0
$829.99
Store - Edmonton ?
0
$829.99
Store - Mississauga ?
0
$829.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES
           This is the Radio Controlled, Electric Powered, 1/10 Scale
TRF419X On-Road Racing Chassis Kit from Tamiya.

FEATURES: Chassis: Carbon 0.098" (2.5mm) thick
Drive: Four wheel, with front and rear drive belts, steel center
pulley shaft, universal drive line, front direct coupler spool
Rear Differential: Oil-filled, gear type
Motor Mount: Aluminum
Shocks: Oil-filled, adjustable shock angle
Shock Towers: Carbon fiber
Bumper: Front foam
Battery Mount: Aluminum
Suspension: Four wheel independent, aluminum mounts, stabilizers are
attached using ball connectors, redesigned front/rear with
attachment points in dedicated racing positions only, adjustable
shock angle
Ball Bearings: Full set included
Spur Gear: Composite plastic, 116T
Caster: Adjustable front and rear, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

INCLUDES: TRF419X On-Road Racing Chassis Kit, Shocks, Spur Gear, Front Bumper,
Shock Oil, Decal Sheet and Instructions

REQUIRES: Radio: 2-channel with high-speed steering servo
Motor: 540 size brushless
Pinion Gear: 04 module, 26-42 tooth recommended
ESC: To match selected motor
Battery: 7.4V stick pack
Battery Charger: Compatible with selected battery
Wheels: 0.94" (24mm) wide with 0 offset
Tires: 0.94" (24mm) wide w/medium narrow inserts
Body: 7.5" (190mm) wide, Tamiya TA05, TA06 and TB04 bodies
Building and track equipment

SPECS: Specs such as finished size and weight not provided

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x8mm Diff 1 DTXC1523
2 10x15mm Diff 1 DTXC1595
2 4x8mm flanged Spur Gear 1 DTXC1517
2 10x15mm Fr Direct Pulley 1 DTXC1595
4 5x10mm Rear Uprights 2 DTXC1535
4 5x10mm Front Uprights 2 DTXC1535

jxs 05/18/16
ir/jxs
4950344423019 4950344423019
TAMC2301
