TAM42288

1/10 TRF211XM Chassis Kit

Product Info | Replacement Parts
RESOURCES

Replacement Parts (11)
TAMIYA

TAM42288

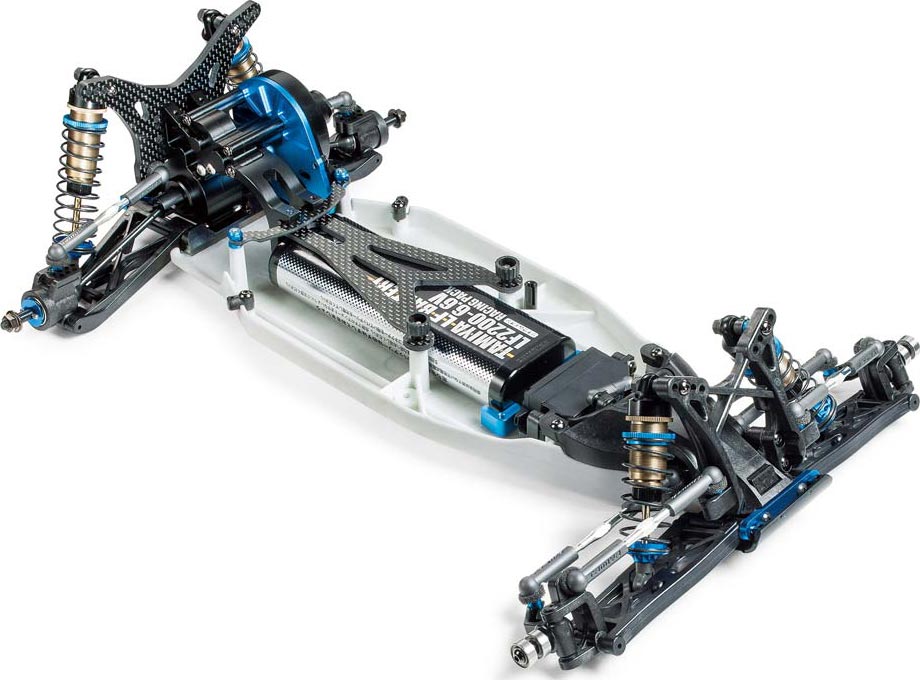

1/10 TRF211XM Chassis Kit
By TAMIYA
$759.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Buggy Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$759.99
Warehouse ?
Stock availability for pick up
0
$759.99
Warehouse ?
0
$759.99
Store - Charlottetown ?
0
$759.99
Store - Edmonton ?
0
$759.99
Store - Mississauga ?
0
$759.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES
          This is the 1/10 scale Electric Powered, Radio Controlled
TRF211XM Off-Road Buggy Chassis Kit from Tamiya.

FEATURES: Chassis: Bathtub type, constructed of lightweight fiber reinforced
plastic, rear chassis stiffener
Drive: Rear wheel, Universal drive shafts secured using axle rings
Gearbox: Aluminum
Differential: Includes parts to build ball type or sealed oil-filled
diff
Suspension: Fully independent double wishbone
Shocks: Big Bore aeration type aluminum body, oil-filled
Steering: Bellcrank
Body: Lightweight 0.024" (0.6mm) thickness, TRF201X #84374
Battery Stiffener and Plate: Carbon
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, front and rear caster/toe-in refers to the angle
of the suspension when viewed from the side of the car in relation
to the chassis

INCLUDES: TRF211XM Off-Road Buggy Chassis Kit with Shocks, Body, Wing, 24T
Pinion Gear, 79T Spur Gear and Instructions

REQUIRES: Radio: 2-channel with high torque steering servo
Motor: 540 size brushless recommended
ESC: To match selected motor (if using the Novak brushless motor and
ESC system listed in the accessory guide, a battery connector that
matches the selected battery must be soldered to the ESC leads
Battery: 2-3S LiPo
Battery Charger: To match selected battery
Tires and Wheels: 1/10 scale 2WD buggy
Lipo charging bag, building and field equipment

SPECS: Body;
Length: 10.8" (274mm)
Width: 4.6" (117mm)
Height: 2.4" (61mm)

COMMENTS: To replace ball bearings use:
Qty. Size Location Qty. Bearing Set
2 10x15mm Ball Diff 1 DTXC1595
2 5x8mm Ball Diff 1 DTXC1523
2 10x15mm Gear Diff 1 DTXC1595
2 5x10mm Idler Gear 1 DTXC1535
2 5x10mm Counter Gear 1 DTXC1535
2 5x10mm Universal Shafts 1 DTXC1535
