TAM42277

1/10 TRF201XM Chassis Kit

Product Info | Replacement Parts
RESOURCES

Replacement Parts (3)
TAMIYA

TAM42277
1/10 TRF201XM Chassis Kit
By TAMIYA
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Buggy Kits
But only from... TAMIYA


 Inventory Status Legend
Stock availability for on-line ordering
0
$807.49
Warehouse ?
Stock availability for pick up
0
$807.49
Warehouse ?
0
$807.49
Store - Charlottetown ?
0
$807.49
Store - Edmonton ?
0
$807.49
Store - Mississauga ?
0
$807.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

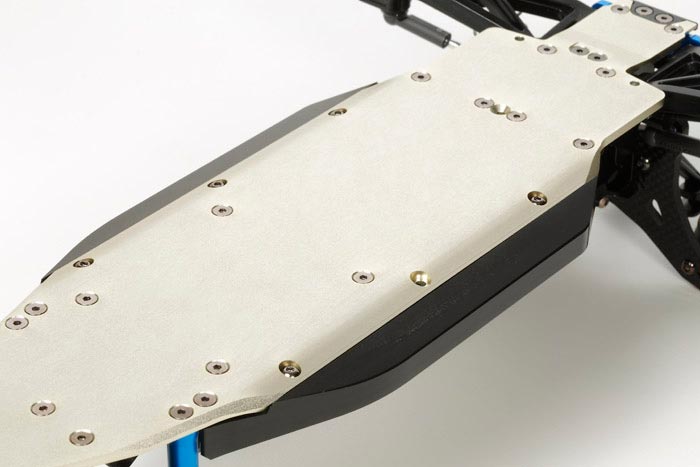

  • The aluminum chassis deck features new dimensions to seize the potential of the new gear case.

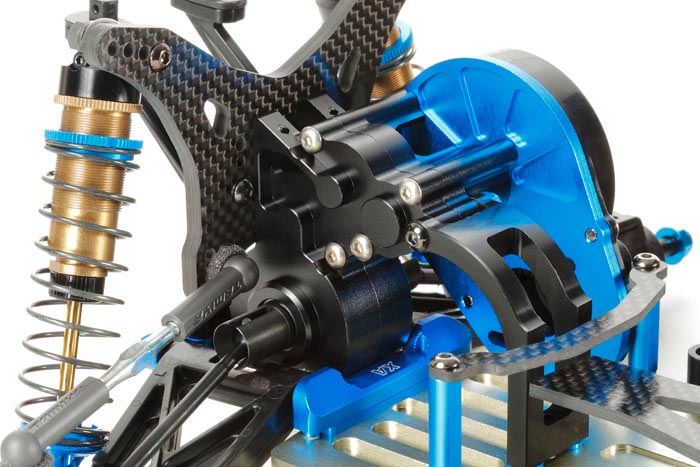

  • The gear case allows for a new drive shaft attachment angle. The aluminum motor plate and suspension mount, plus the center post, have been redesigned to work optimally in the new setup.

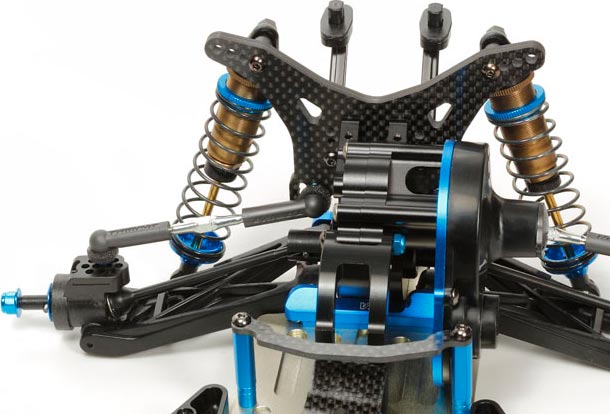

  • A new carbon rear damper stay facilitates more efficient upper arm attachment positions.
  • The TRF201 chassis features 4-wheel double wishbone suspension and aeration oil dampers for smooth and effective damping.

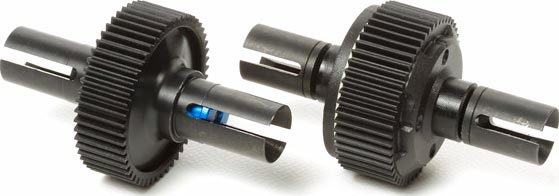

  • The kit is compatible with the included ball differential, and also gear differentials.

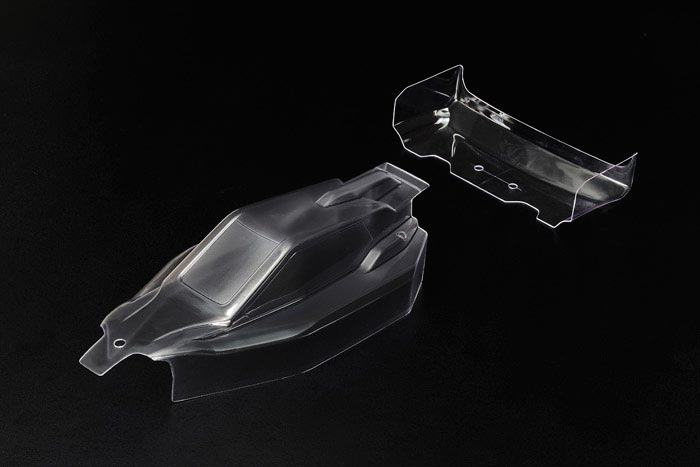

  • Includes a Pro-Line Phantom body.

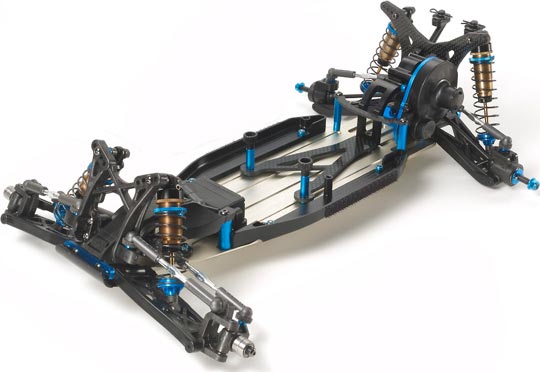

The TRF201XM chassis used by Tamiya Racing Factory pilot Lee Martin at the 2013 IFMAR 2WD Off-road World Championships is available for racing enthusiasts across the world to drive! The kit features theTRF201 converted into a mid-motor chassis, including modifications beyond those offered by the conversion kit seen in Item 42257 TRF201 XM Conversion Set.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
         This is the 1/10 scale electric powered, radio controlled,
TRF201XM Off-Road Chassis Kit from Tamiya.

FEATURES: Chassis: 0.12" (3mm) thick aluminum
Drive: Rear wheel
Differential: All components included to build a ball or gear type
diff
Shocks: Aluminum body, oil filled, adjustable shock angle
Shock Towers: Front, composite plastic, Rear 0.16" (4mm) carbon
fiber
Suspension: Fully independent double wishbone
Ball Bearings: Full set shielded
Caster: Adjustable front and rear, caster/toe-in refers to the angle
of the front suspension when viewed from the side of the car in
relation to the chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Steering: Bell-crank with servo saver
Body: Molded from clear polycarbonate plastic
Motor Mount: Aluminum
Spur Gear: Nylon construction 48P 79T
Pinion Gear: 23T

INCLUDES: TRF201XM Off-Road Chassis Kit with Shocks, Decal Sheet, Body, Wing,
Silicone Diff Fluid, Shock Oil and Instruction Manual

REQUIRES: Radio: 2-channel with high torque steering servo
Motor: Brushless recommended
ESC: Compatible with selected motor
Tires:
Wheels:
Building and track equipment

SPECS: Chassis specs such finished size not provided by manufacturer
Body;
Length: 10.6" (270mm)
Width: 4.5" (115mm)
Height: 2.2" (55mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 5x8mm Ball Diff 1 DTXC1523
2 10x15mm Ball Diff 1 DTXC1595
1 4x8mm Counter Gear 1 DTXC1511
1 5x10mm Counter Gear 1 DTXC1535
4 5x10mm Gearbox 2 DTXC1535
4 5x10mm Rear Uprights 2 DTXC1535
4 5x10mm Front Uprights 2 DTXC1535
2 3x7mm Steering 1 DTXC1506
